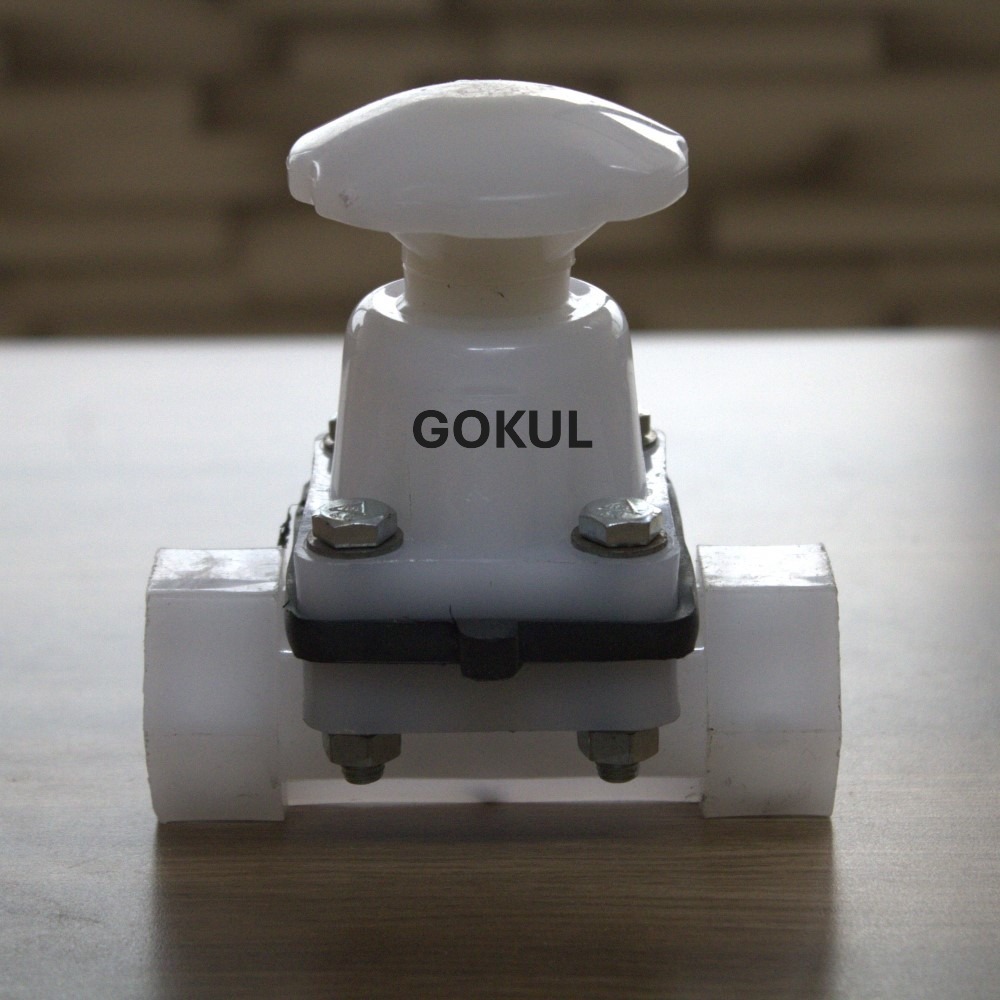

Flange End Diaphragm valve 3/4"

410 INR/Number
Get a Price/Quote

Product Details:

  • Pressure Medium Pressure
  • Color White
  • Product Type PP Diaphragm Valve Flange End
  • Size 3/4"-20MM
  • Connection Flanged
  • Usage Industrial & Water Application
  • Structure Ball
  • Click to view more
Request To Call Back Send Inquiry
X

Flange End Diaphragm valve 3/4" Price And Quantity

  • 410 INR/Number
  • 10 Number

Flange End Diaphragm valve 3/4" Product Specifications

  • Ball
  • Industrial & Water Application
  • Plastic
  • 3/4"-20MM
  • Gokul Poly Valves Pvt Ltd
  • Intentional & Domestic Market
  • Water
  • industrial and water application
  • Flanged
  • White
  • PP Diaphragm Valve Flange End
  • Polypropylene (PP)
  • 3/4"-20MM
  • Medium Pressure
  • 150 class
  • 80 Celsius (oC)

Flange End Diaphragm valve 3/4" Trade Information

  • Ahmedabad
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Flange End Diaphragm valve 3/4":


Q: What is the material used in the Flange End Diaphragm Valve 3/4"?

A: The Flange End Diaphragm Valve 3/4" is made of plastic, specifically Polypropylene (PP).

Q: What is the temperature limit for the media in this valve?

A: The valve can handle media temperatures up to 80C.

Q: What type of connection does the valve have?

A: The valve features a flanged connection designed for easy installation.

Q: What is the size and port specification of the valve?

A: The valve has a size and port specification of 3/4"-20MM.

Q: What type of pressure can this valve handle?

A: The Flange End Diaphragm Valve 3/4" is suitable for medium pressure applications.

Q: What applications and media is this valve designed for?

A: The valve is designed for industrial and water applications, with water as the intended media.

Q: What is the flange standard of this valve?

A: The valve complies with a flange standard of 150 class.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Ball Products' category

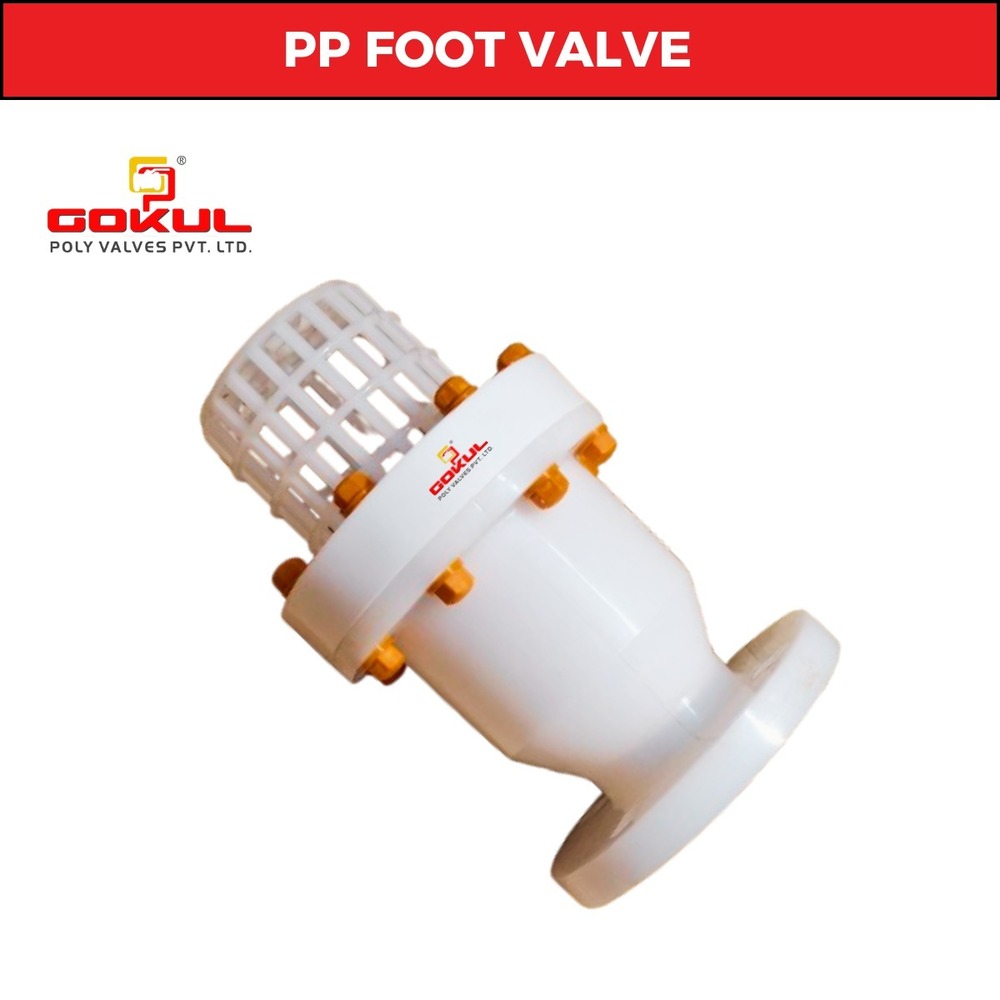

Polypropylene Foot valve Flanged
