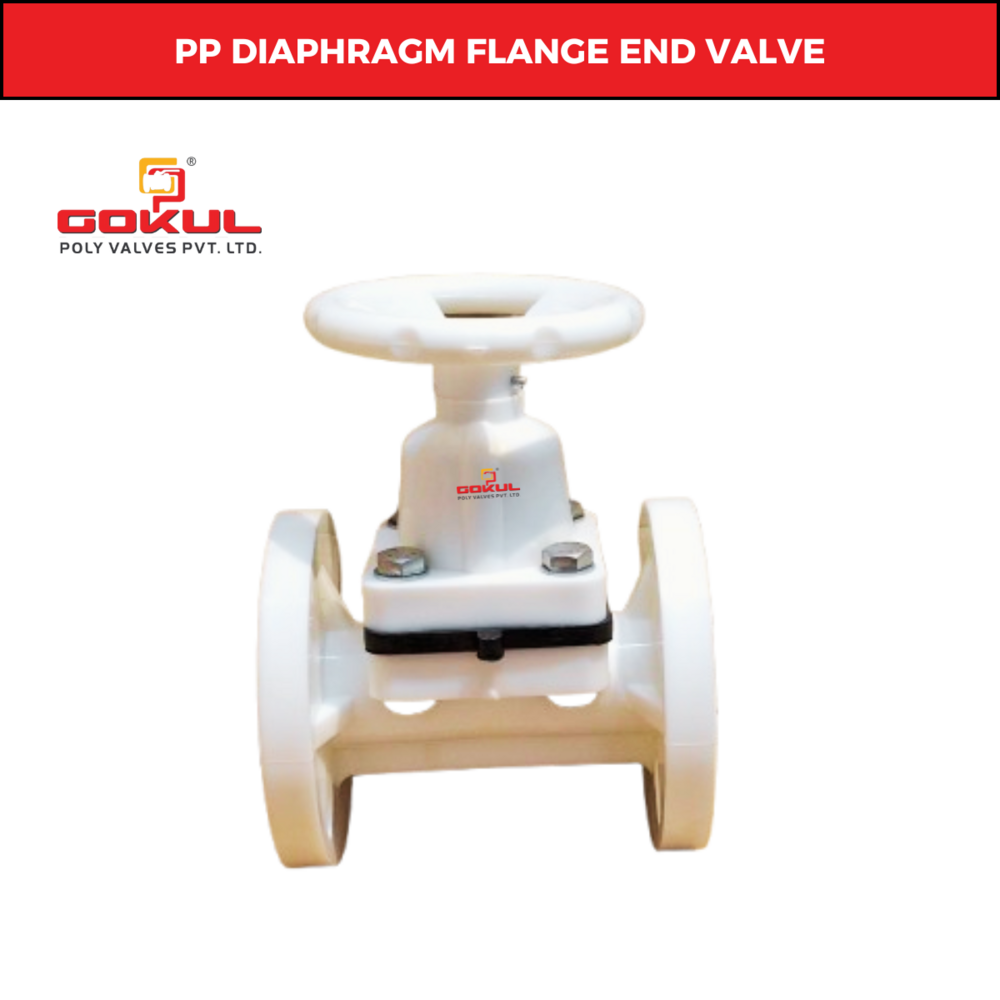

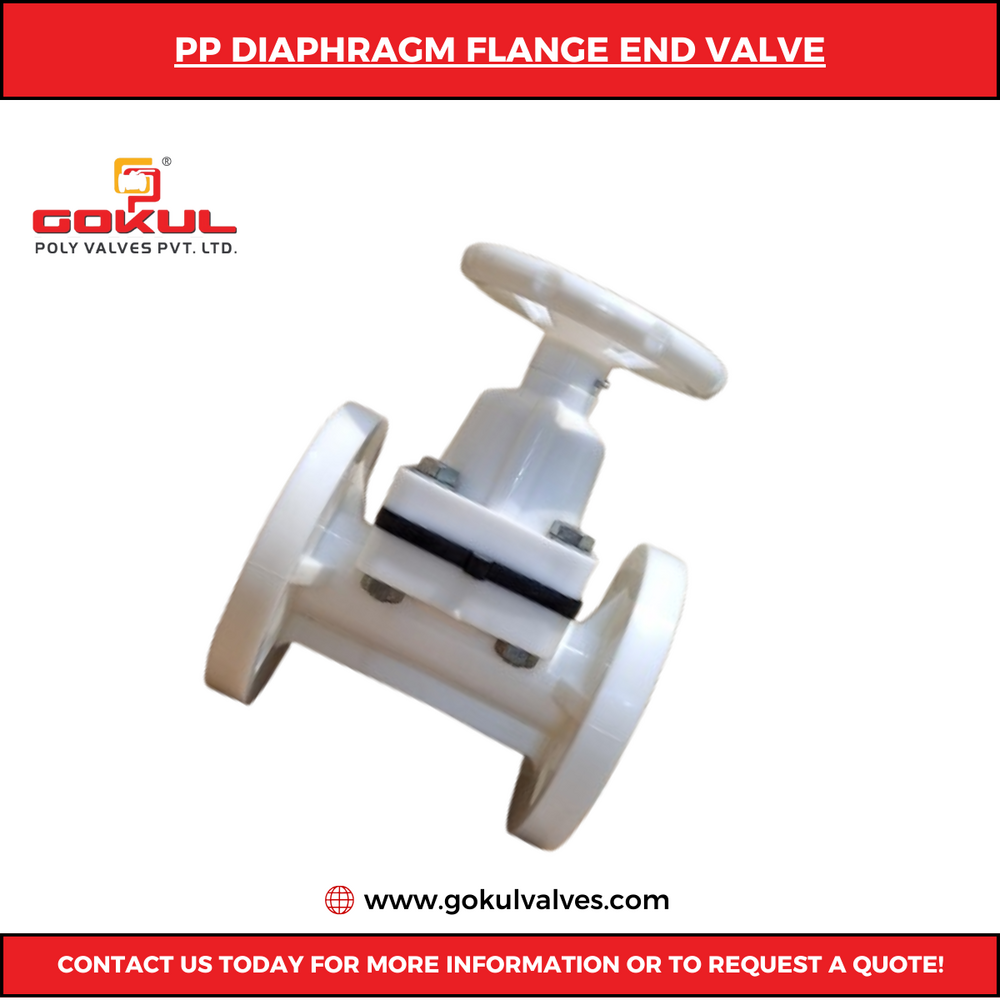

Flange End Polypropylene Diaphragm Valve 1/2"

About Flange End Polypropylene Diaphragm Valve 1/2"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Reliable Industrial Fluid Regulation

Designed for versatility, the 1/2" Polypropylene Diaphragm Valve stands out in both industrial and water management setups. Its flanged structure ensures secure installation and easy maintenance. Suited for handling water at pressures and temperatures typical in many operations (up to 80C), this valve supports uninterrupted flow and prevents leaks through its robust design.


Durable Polypropylene Construction

Manufactured from high-grade polypropylene, this valve resists corrosion and chemical attacks, making it ideal for prolonged use in varied environments. Its white finish enhances visibility during inspections, while the plastic build keeps maintenance requirements minimal. As both an exporter and supplier, Gokul Poly Valves ensures consistent product quality and supply.


Flexible Application and Connections

With a standard 1/2" (15mm) port size and 150-class flange, this diaphragm valve is easy to integrate into diverse industrial piping systems. The flanged connections provide a reliable seal and facilitate quick replacements or system upgrades. Applications span from water treatment plants to manufacturing units focused on media temperature control and safety.
