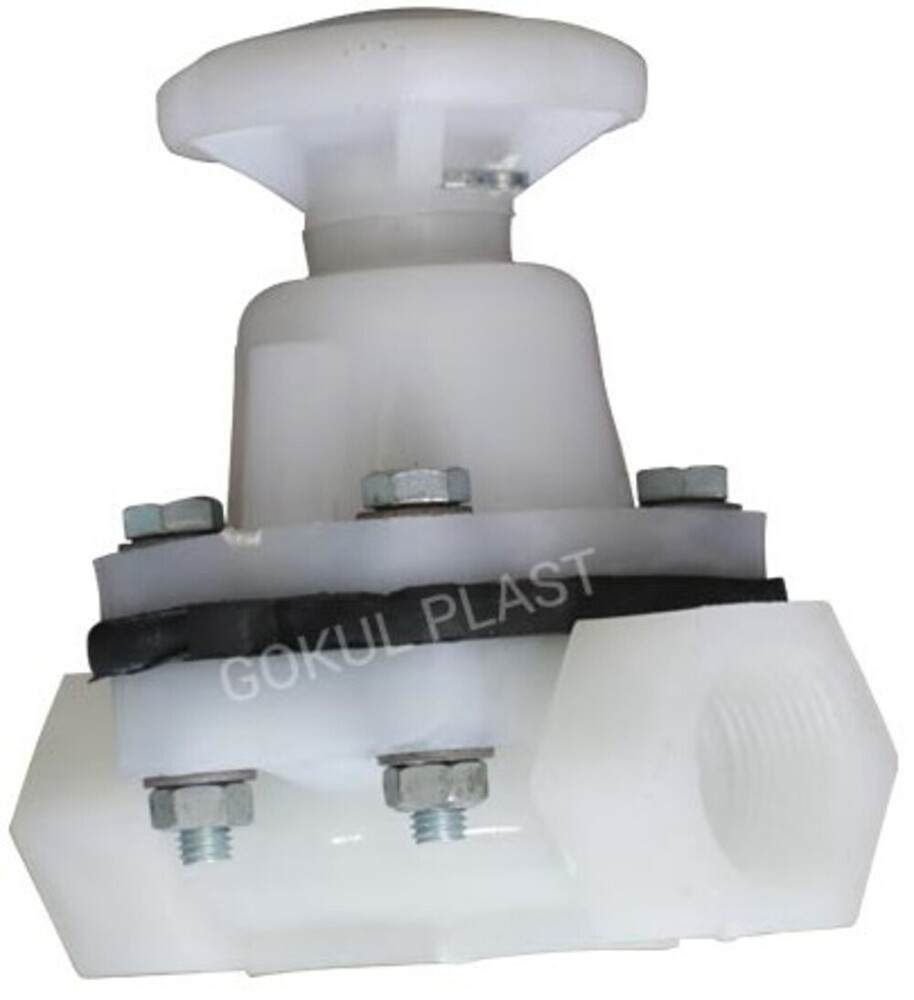

Flange End Polypropylene Diaphragm Valve 1.5"

Price 690 INR/ Number

Get a Price/Quote

Flange End Polypropylene Diaphragm Valve 1.5" Specification

Structure
Ball

Pressure
Medium Pressure

Caliber
Gokul Poly Valves Pvt Ltd

Connection
Flanged

Channels
Intentional & Domestic Market

Usage
Industrial & Water Application

Material
Plastic

Size
1.5"-40mm

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Diaphragm Valve Flange End

Port Size
1.5"-40mm

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

Flange End Polypropylene Diaphragm Valve 1.5" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Flange End Polypropylene Diaphragm Valve 1.5"

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1
