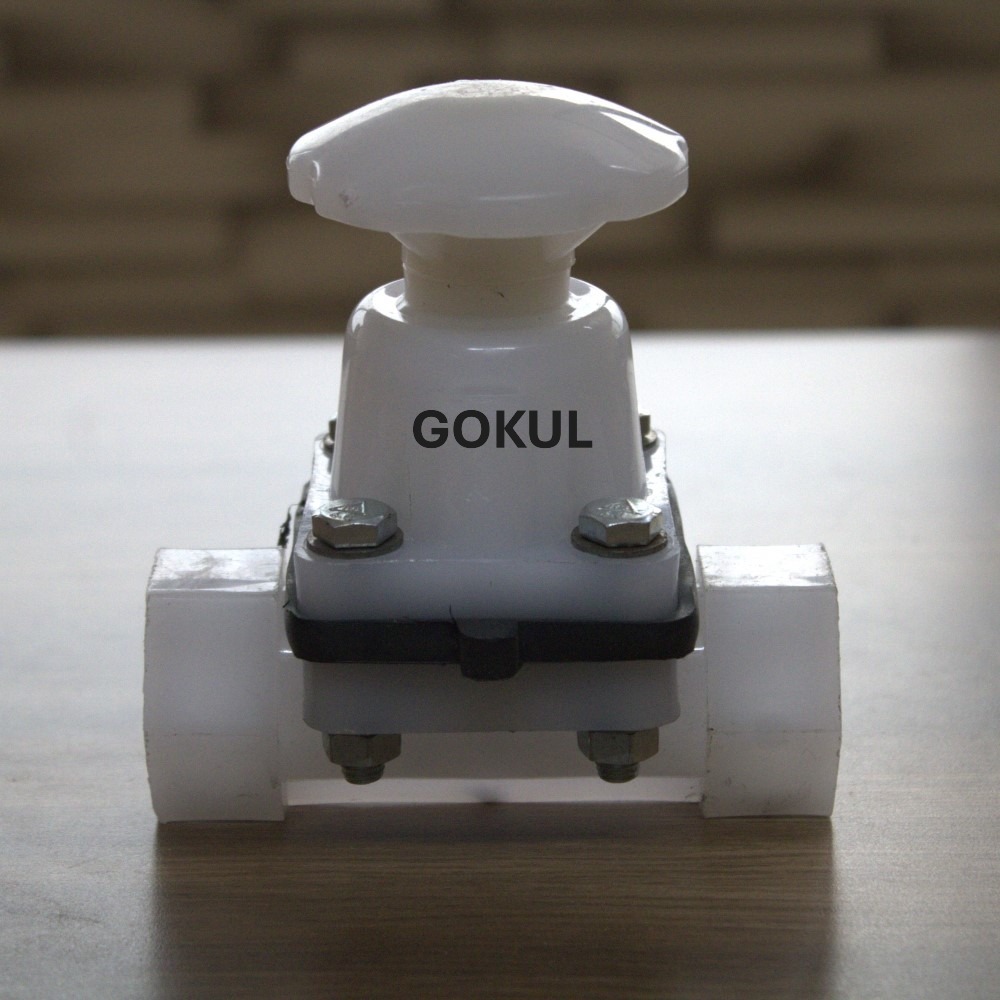

Gokul Flange End Pp Diaphragm Valve 4"

About Gokul Flange End Pp Diaphragm Valve 4"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Superior Polypropylene Construction

Built with high-quality polypropylene (PP), the Gokul diaphragm valve offers strong resistance to corrosion and chemicals, ensuring a long service life in demanding environments. Its structure is designed to withstand medium pressure and high temperature conditions, making it a reliable solution for various industrial and water management systems.


Adaptable for Multiple Applications

This valve is crafted for use in both industrial and water settings, demonstrating exceptional flexibility. Whether in water treatment plants or manufacturing facilities, the Gokul Flange End PP Diaphragm Valve efficiently manages flow, contributing to consistent system operation and minimized maintenance requirements. Its flange end and 4 port size streamline installation and maintenance.
