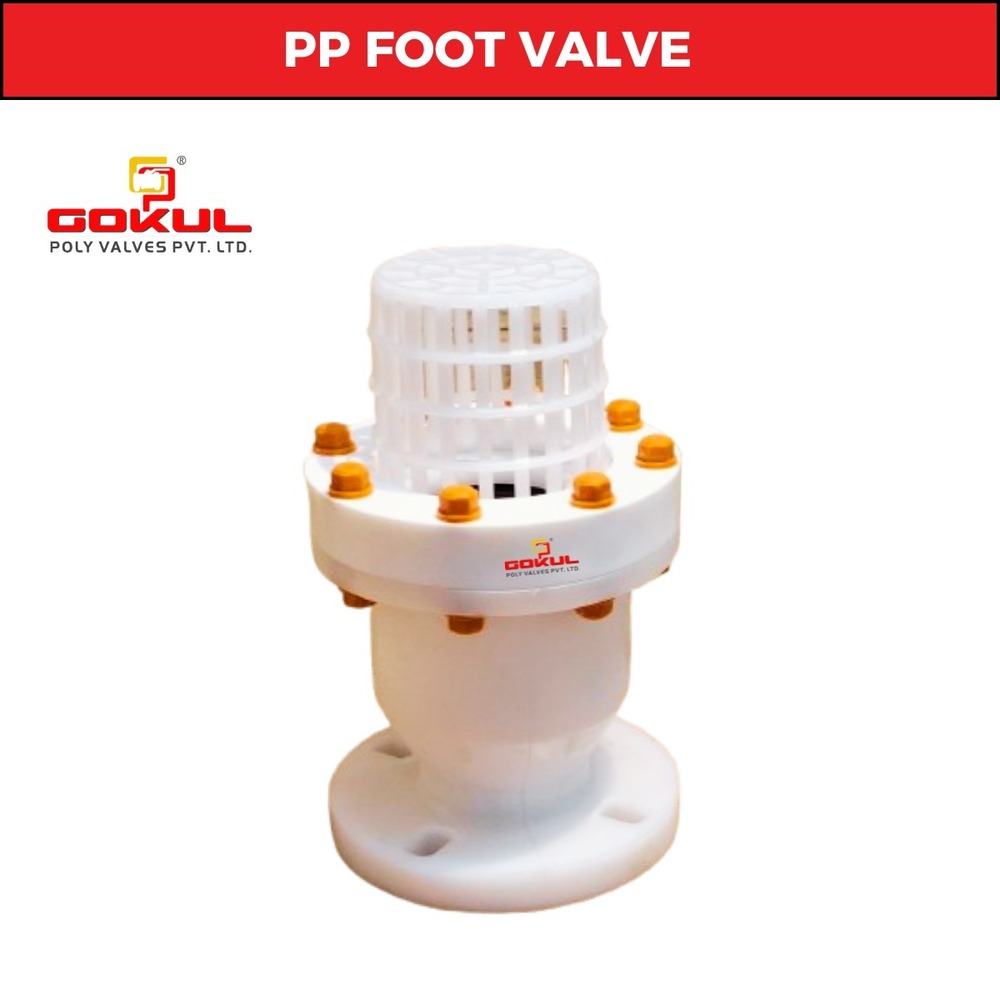

Gokul Flanged Polypropylene Foot Valve

536 INR/Number

Get a Price/Quote

Request To Call Back Send Inquiry

Gokul Flanged Polypropylene Foot Valve Price And Quantity

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Box Packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Material Of Construction	PP (Polypropylene)	Construction	Ball type design, soft seated, 2 Piece Design
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	25MM to 315MM	Test pressure	10 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

No.	DESCRIPTION	QTY	MATERIAL
1)	Top Body	1	Polypropylene
2)	Bottam Body	1	Polypropylene
3)	Screen	1	Polypropylene
4)	Ball	1	Polypropylene
5)	Ball Ring	1	Polypropylene
6)	Seat Ring	1	Neoprene Rubber
7)	Stud, Nut & Washer	Req.	SS
