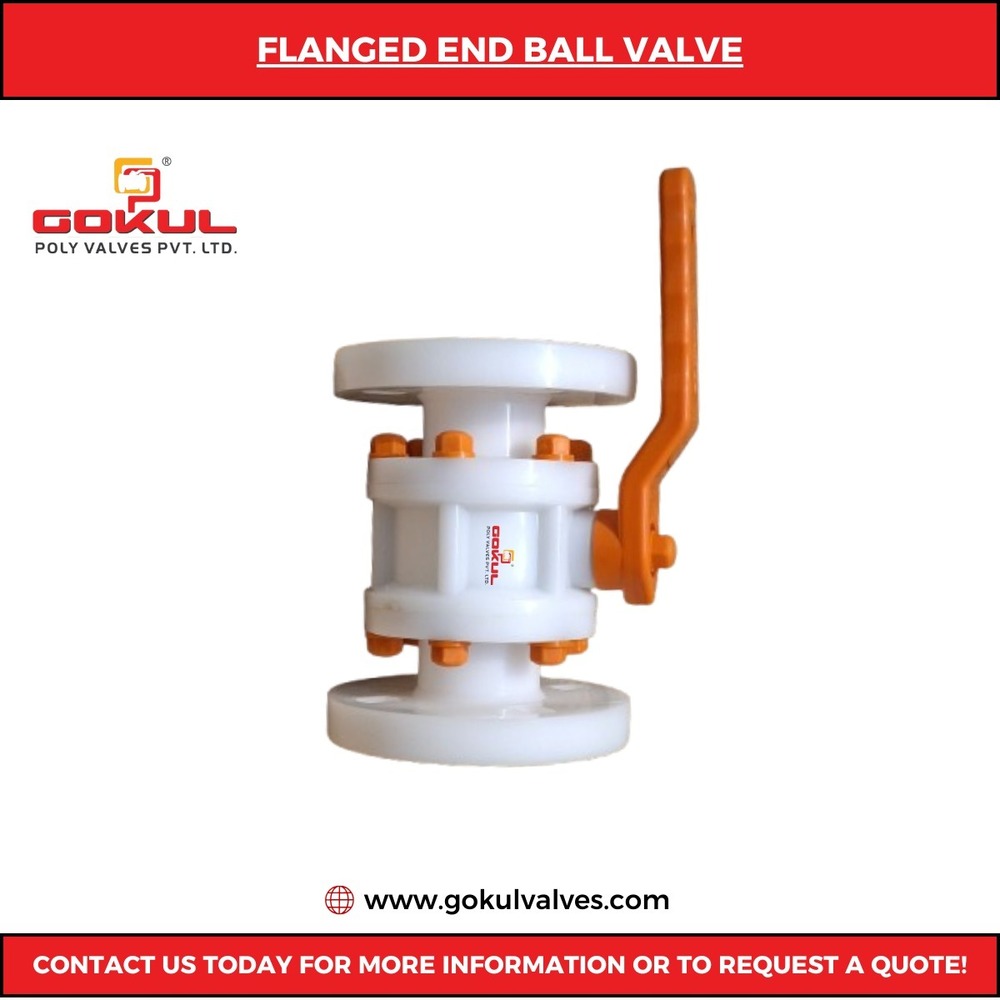

Gokul Polypropylene Ball Valve Flanged

About Gokul Polypropylene Ball Valve Flanged

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range " 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.
