Gokul Polypropylene Diaphragm Flange End valve 4

Send Inquiry

Request To Call Back

Gokul Polypropylene Diaphragm Flange End valve 4"

Price 6660 INR/ Number

Get a Price/Quote

Gokul Polypropylene Diaphragm Flange End valve 4" Specification

Connection
Flanged

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Structure
Ball

Channels
Intentional & Domestic Market

Material
Plastic

Usage
Industrial & Water Application

Size
4"-100MM

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Diaphragm Valve Flange End

Port Size
4"-100MM

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul Polypropylene Diaphragm Flange End valve 4" Trade Information

Minimum Order Quantity
30 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

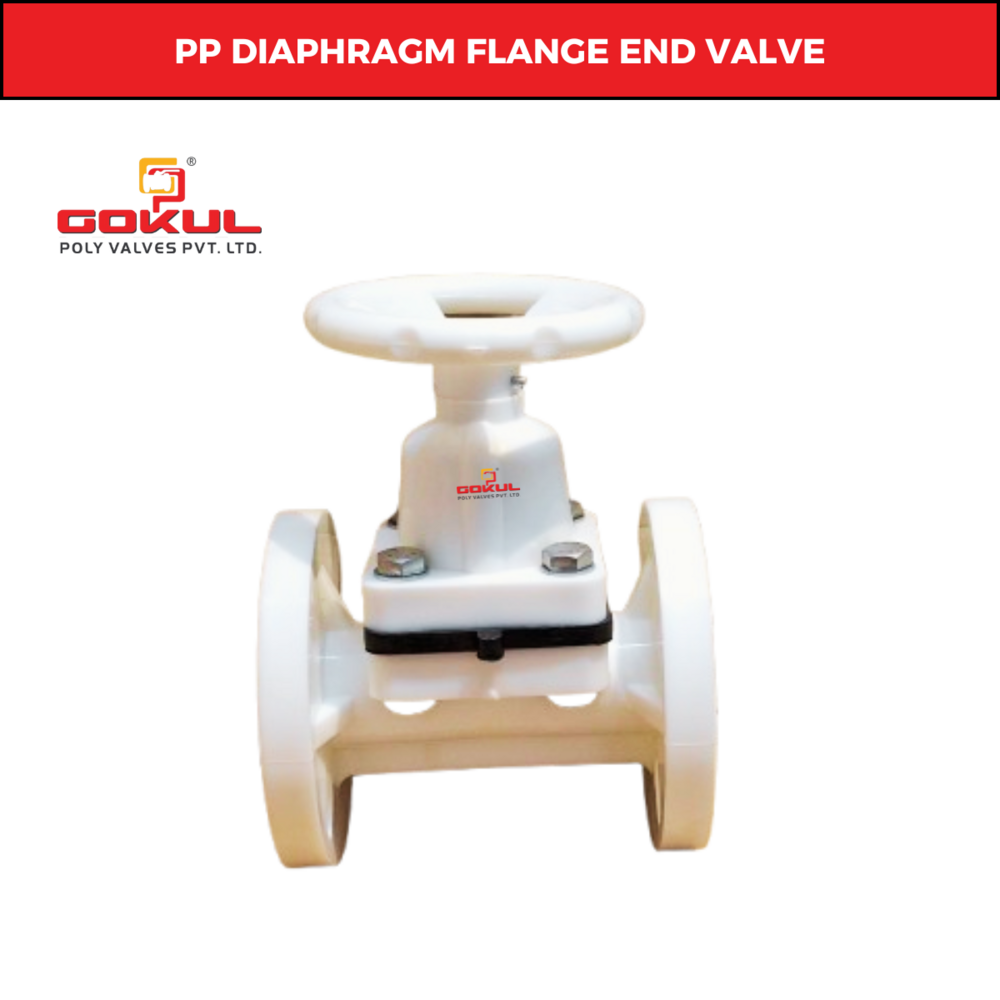

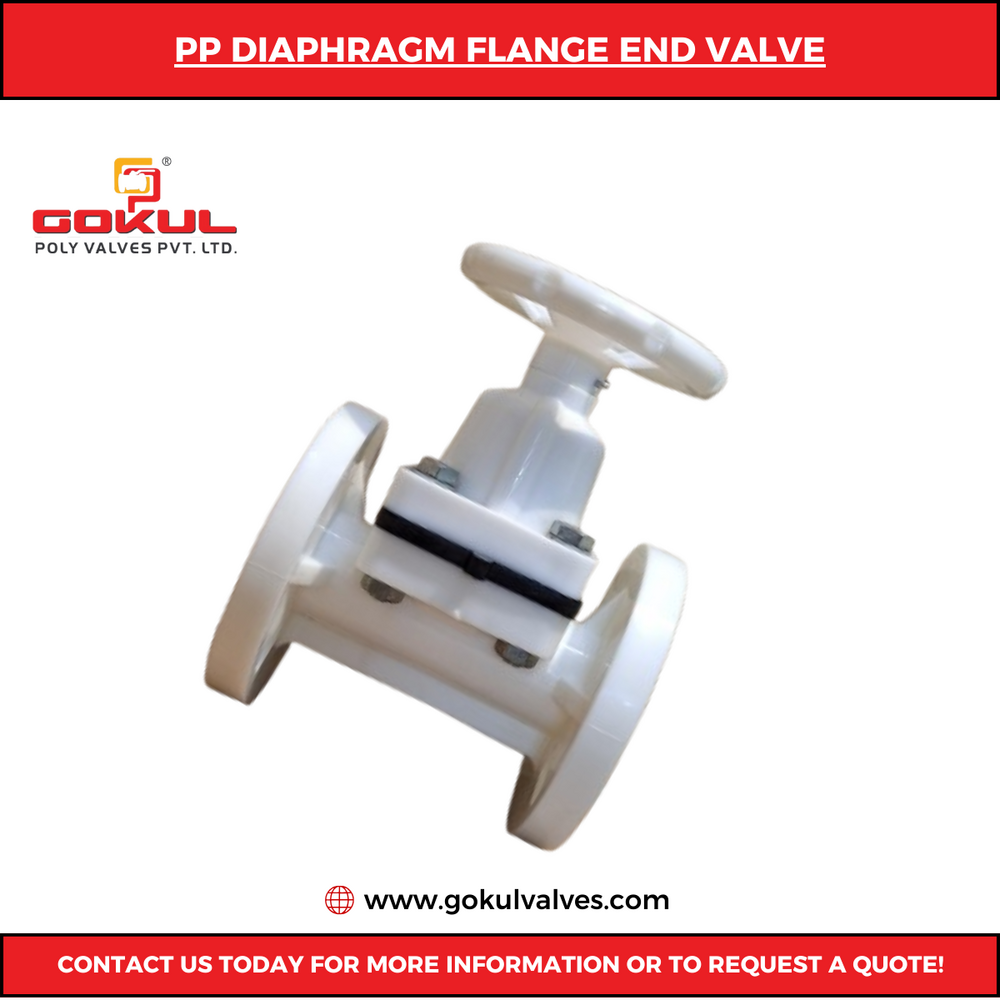

About Gokul Polypropylene Diaphragm Flange End valve 4"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Durable Polypropylene Construction

Crafted from superior-grade polypropylene, this diaphragm flange end valve ensures outstanding chemical resistance, minimal maintenance needs, and longevity in tough industrial environments. Its plastic build makes it ideal for sustained exposure to water and corrosive media, providing dependable performance even in demanding conditions.

Versatile Industrial & Water Applications

The valve is optimized for various industrial and water management systems, including treatment plants and process industries. Its flexible range allows it to operate efficiently in both domestic and intentional market channels, meeting strict performance criteria for medium pressure and high temperature requirements.

Efficient Flanged Connection Design

Featuring a standard 150 class flanged connection, installation is straightforward and secure. The 4" (100MM) port size aligns with global standards, simplifying integration into existing pipelines and promoting leak-free operation. This results in enhanced safety and reduced downtime in critical operations.

FAQs of Gokul Polypropylene Diaphragm Flange End valve 4":

Q: How does the Gokul Polypropylene Diaphragm Flange End Valve enhance water and industrial systems?

A: The valve supports secure fluid control and corrosion resistance, ensuring reliable operations in both water and industrial applications by tolerating medium pressure and temperatures up to 80C.

Q: What material is used for the valve, and what benefits does it offer?

A: Manufactured using polypropylene (PP), the valve boasts excellent chemical resistance, lightweight strength, and durability, minimizing maintenance and extending service life.

Q: Where can this valve be effectively installed?

A: It is suitable for use in water treatment facilities, process industries, and other environments requiring robust fluid management, especially where medium pressure and specific temperature thresholds are critical.

Q: Can the valve handle high temperatures?

A: Yes, the valve is designed to operate efficiently with media temperatures up to 80 degrees Celsius, making it suitable for demanding industrial and water applications.

Q: What is the connection type and port size of the valve?

A: The product features a standard flanged connection (150 class) and a 4" (100MM) port size, promoting compatibility with global industrial pipeline standards.

Q: What industries benefit most from this valves characteristics?

A: Industries including water treatment, chemical processing, and general manufacturing benefit from its corrosion-resistant build, medium pressure capability, and secure flanged connection design.

Q: How does the diaphragm ball structure contribute to functionality?

A: The ball structure ensures consistent flow regulation and minimizes leakage, providing precise control and improving operational safety in industrial and water applications.
