21800 INR/Number

Get a Price/Quote

Product Details:

Structure Ball
Color White
Product Type PP Diaphragm Valve Flange End
Caliber Gokul Poly Valves Pvt Ltd
Usage Industrial & Water Application
Pressure Medium Pressure
Size 6"-150MM
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

X

Gokul polypropylene Diaphragm Flange End Valve 6" Price And Quantity

Minimum Order Quantity 10 Number
Price 21800 INR/Number

Gokul polypropylene Diaphragm Flange End Valve 6" Product Specifications

Flange 150 class
Product Type PP Diaphragm Valve Flange End
Caliber Gokul Poly Valves Pvt Ltd
Color White
Application industrial and water application
Structure Ball
Material Plastic
Connection Flanged
Channels Intentional & Domestic Market
Temperature of Media 80 Celsius (oC)
Media Water
Size 6"-150MM
Port Size 6"150MM
Finish Polypropylene (PP)
Pressure Medium Pressure
Usage Industrial & Water Application

Gokul polypropylene Diaphragm Flange End Valve 6" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 20 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Box Packing
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul polypropylene Diaphragm Flange End Valve 6":

Q: What is the application of the Gokul polypropylene Diaphragm Flange End Valve 6"?

A: The valve is designed for industrial and water applications.

Q: What is the size and port dimensions of this valve?

A: The size and port dimensions are 6"-150MM.

Q: What material is used in the construction of this valve?

A: The valve is made of polypropylene (PP), a type of plastic.

Q: What is the maximum temperature of media the valve can handle?

A: The valve can handle media up to a temperature of 80 degrees Celsius.

Q: What is the connection type of this valve?

A: The valve has a flanged connection with a 150-class flange specification.

Q: What type of media is this valve suitable for?

A: The valve is suitable for use with water.

Q: What pressure rating does the valve support?

A: The valve is designed to handle medium pressure.

Tell us about your requirement

product

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

Other Products in 'Ball Products' category

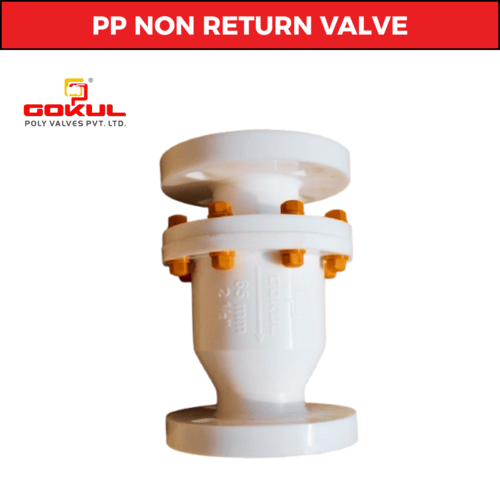

Gokul PP Non Return Valve Flanges

Gokul PP Non Return Valve Flanges Price : 10000 INR/Number Minimum Order Quantity : 10 Color : White Structure : Ball Material : Plastic Application : industrial and water application Flange : 150 class Product Type : PP Non Return Valve Flanged Usage : Industrial & Water Application Port Size : 1" To 12" Pressure : Medium Pressure Size : 1" To 12" Connection : Flanged Caliber : Gokul Poly Valves Pvt Ltd Finish : Polypropylene (PP) Media : Water Channels : Intentional & Domestic Market Temperature of Media : 80 Celsius (oC)

Send Inquiry

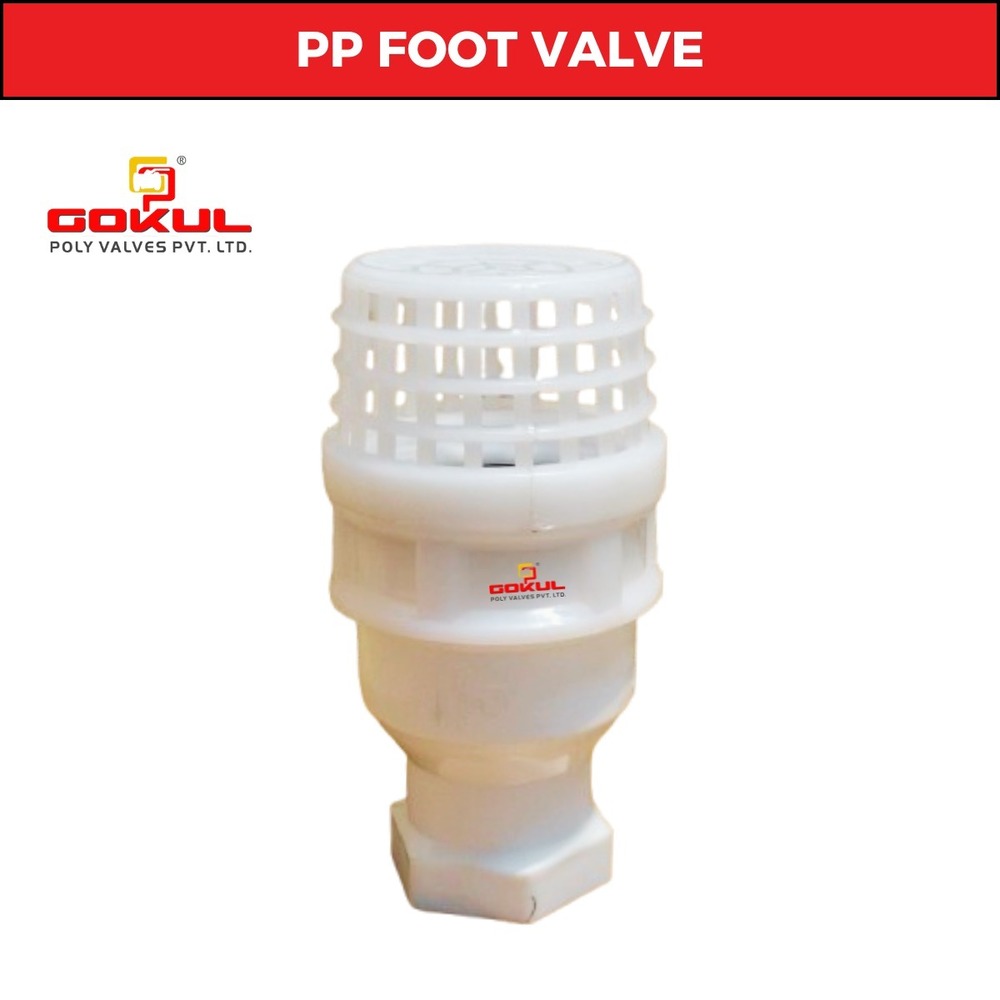

PP Foot Valve Threaded End
