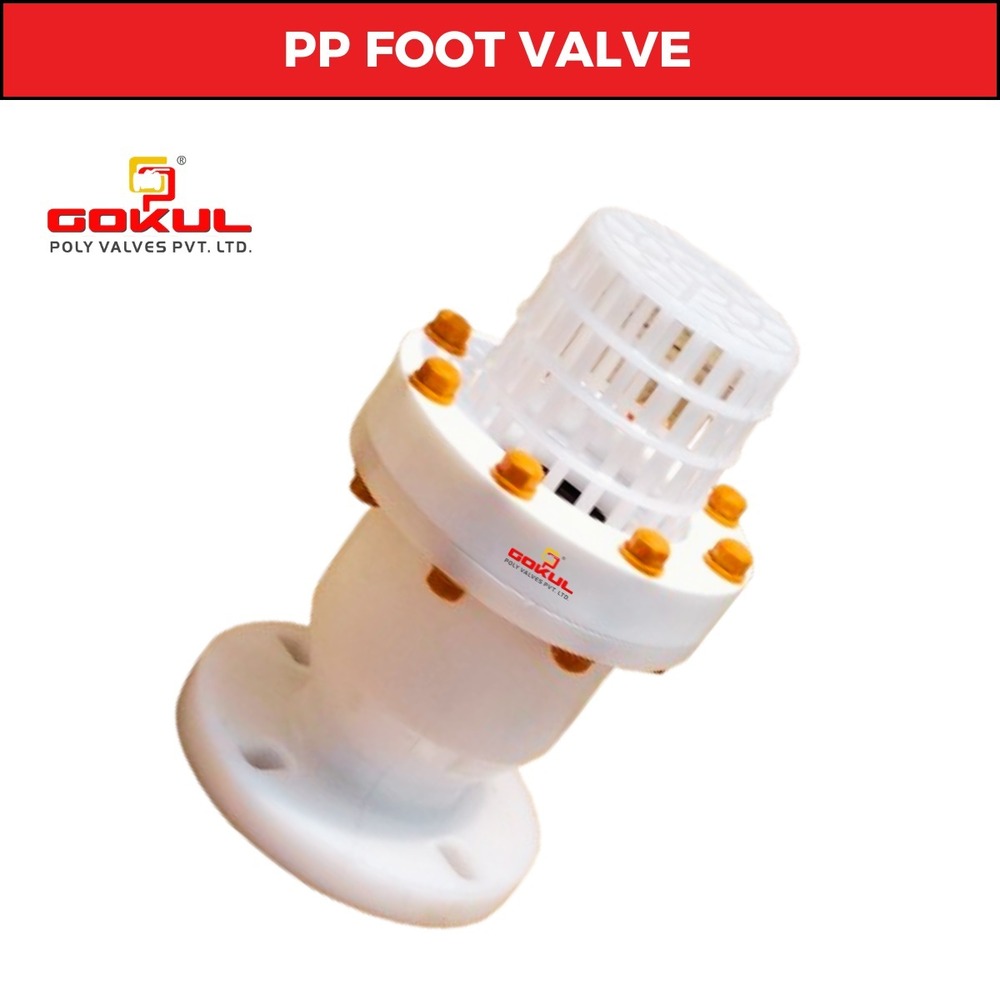

Gokul Polypropylene Foot Valve

Price 10000 INR/ Number

Get a Price/Quote

Gokul Polypropylene Foot Valve Specification

  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Foot Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • a
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Foot Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul Polypropylene Foot Valve:


Q: What is the material used for the Gokul Polypropylene Foot Valve?

A: The Gokul Polypropylene Foot Valve is made from high-quality plastic with a polypropylene (PP) finish.

Q: What are the size options available for the Gokul Polypropylene Foot Valve?

A: The Gokul Polypropylene Foot Valve is available in sizes ranging from 1 inch to 12 inches.

Q: What is the maximum temperature media that the Gokul Polypropylene Foot Valve can handle?

A: This foot valve can handle media temperatures up to 80C (Celsius).

Q: What type of connection does the Gokul Polypropylene Foot Valve have?

A: The Gokul Polypropylene Foot Valve comes with a flanged connection, specifically 150 class flanges.

Q: What are the applications of the Gokul Polypropylene Foot Valve?

A: The Gokul Polypropylene Foot Valve is suitable for industrial and water applications.

Q: What type of structure does the Gokul Polypropylene Foot Valve have?

A: The valve is designed with a ball structure for efficient functioning.

Q: What is the pressure range of the Gokul Polypropylene Foot Valve?

A: The valve is designed to handle medium pressure applications effectively.

Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Gokul Polypropylene Foot Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Flanged End HDPE Ball Valve

Flanged End HDPE Ball Valve

Price 1580 INR / Number

Minimum Order Quantity : 10

Connection : Screw End (BSP Threaded)

Size : 1/2" To 12"

Product Type : HDPE Ball Valve Flange End

Finish : HDPE HighDensity Polyethylene

Get a Price/Quote
Gokul Polypropylene Y Type Strainer Screwed End

Gokul Polypropylene Y Type Strainer Screwed End

Price 325 INR / Number

Minimum Order Quantity : 10

Connection : Screw End (BSP Threaded)

Size : 1/2" To 3"

Product Type : PP Y Type Strainer Screw End

Finish : Polypropylene (PP)

Get a Price/Quote

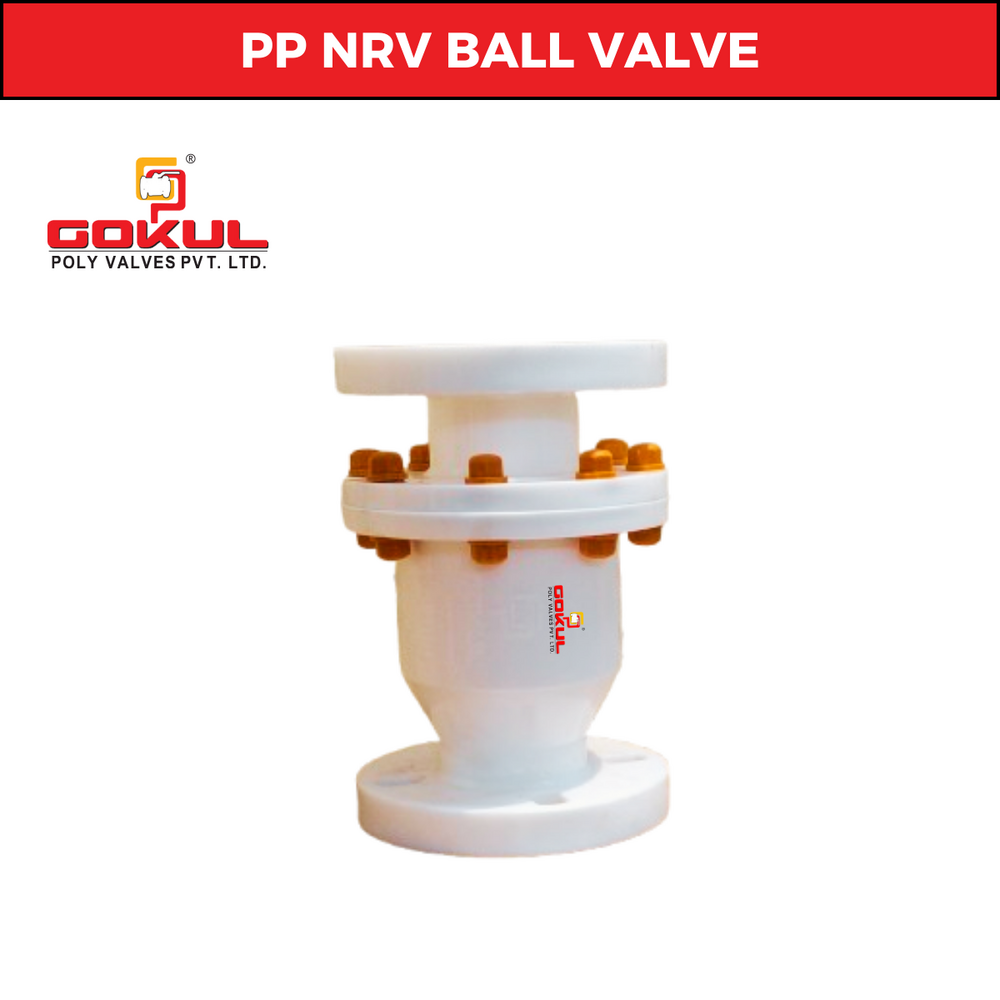

Gokul PP Nrv Flanged End
