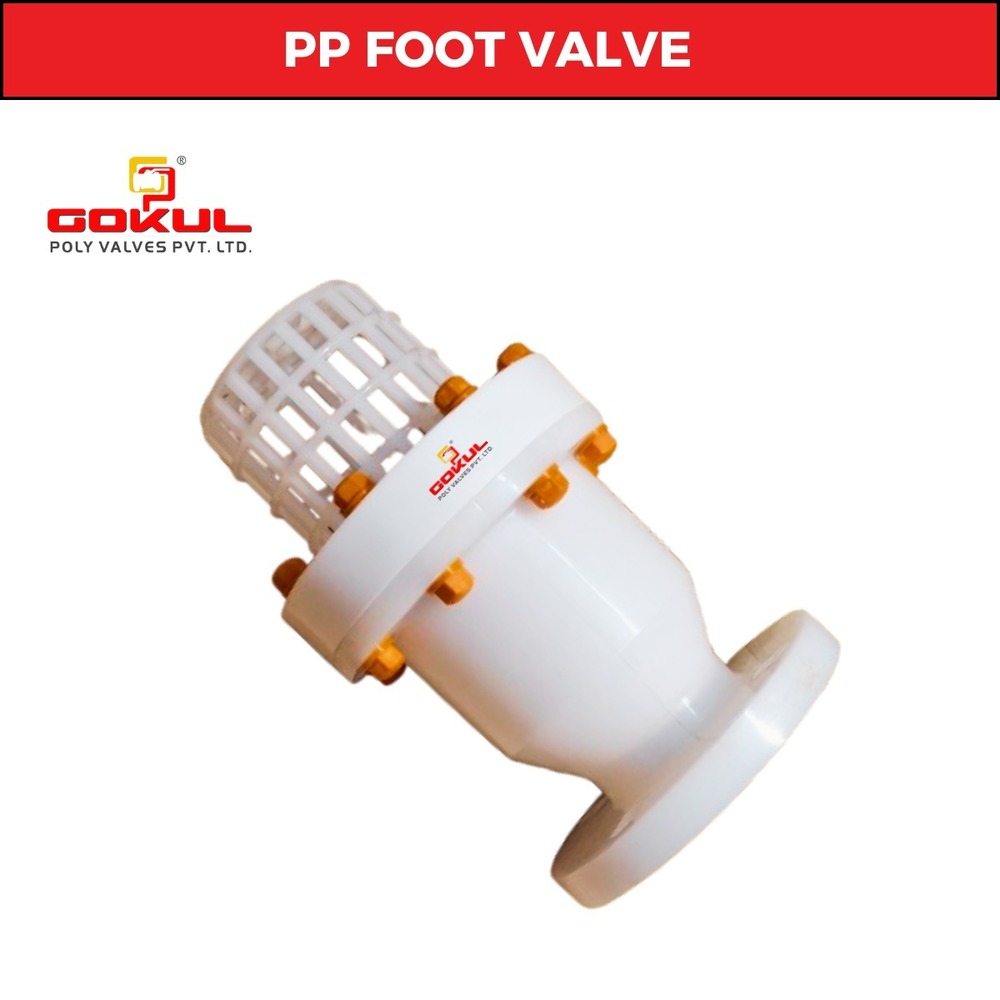

Gokul Polypropylene Foot Valve Flanged

Price 1320 INR/ Number

Get a Price/Quote

Gokul Polypropylene Foot Valve Flanged Specification

  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1" To 12"
  • Media
  • Water
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Foot Valve Flanged Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Foot Valve Flanged

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul Polypropylene Foot Valve Flanged:


Q: What is the size range available for the Gokul Polypropylene Foot Valve Flanged?

A: The Gokul Polypropylene Foot Valve Flanged is available in sizes ranging from 1" to 12".

Q: What is the connection type for this valve?

A: The connection type for the Gokul Polypropylene Foot Valve Flanged is flanged.

Q: What material is used to manufacture this valve?

A: The valve is made from plastic with a polypropylene (PP) finish.

Q: What type of applications is this valve suitable for?

A: The Gokul Polypropylene Foot Valve Flanged is suitable for industrial and water applications.

Q: What pressure rating does this valve support?

A: This valve is designed to operate under medium pressure conditions.

Q: What is the flange classification for this valve?

A: The flange classification for the Gokul Polypropylene Foot Valve Flanged is 150 class.

Q: What market channels are targeted for this product?

A: The product is designed for both intentional and domestic market channels.

Gokul Polypropylene Foot Valve Flanged
Gokul Polypropylene Foot Valve Flanged
Gokul Polypropylene Foot Valve Flanged
Gokul Polypropylene Foot Valve Flanged
Gokul Polypropylene Foot Valve Flanged
Gokul Polypropylene Foot Valve Flanged
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Polypropylene Diaphragm Screwed End Valve

Polypropylene Diaphragm Screwed End Valve

Price 325 INR / Number

Minimum Order Quantity : 10

Structure : Ball

Finish : Polypropylene (PP)

Pressure : Medium Pressure

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote

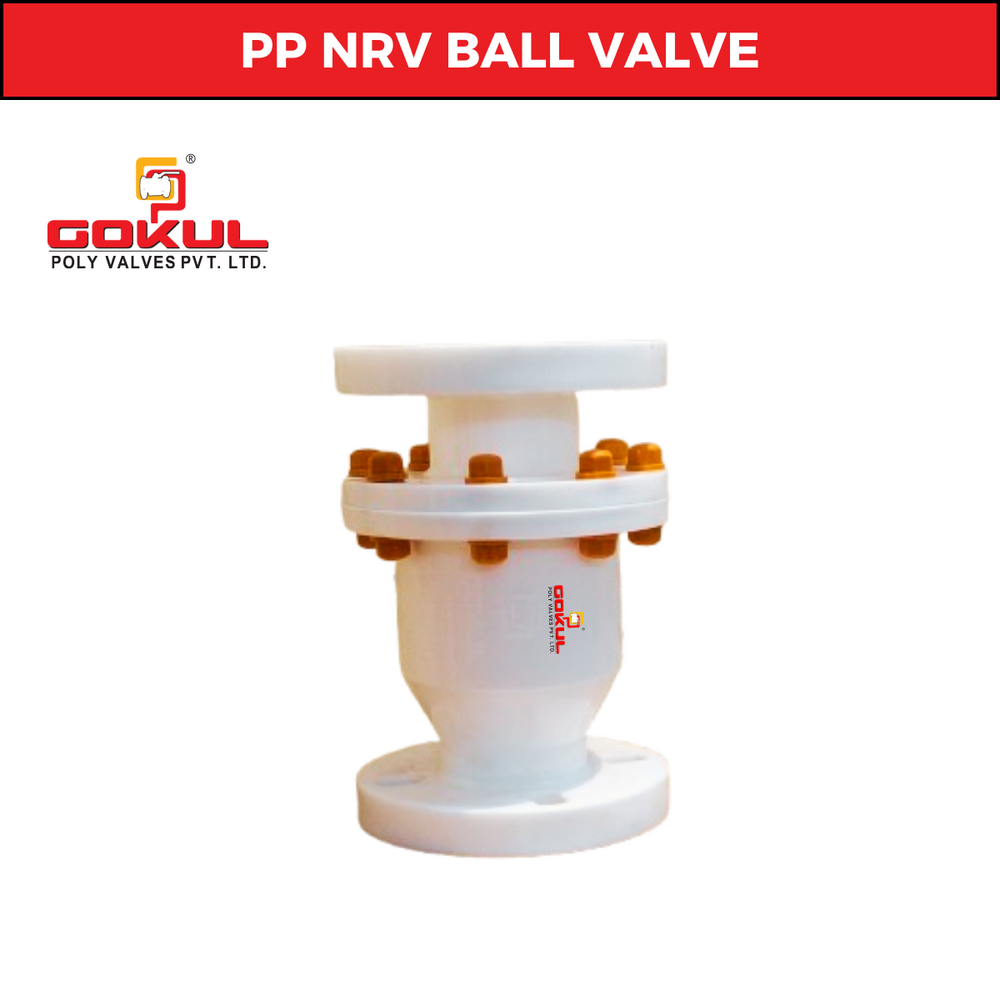

Gokul Polypropylene Nrv
