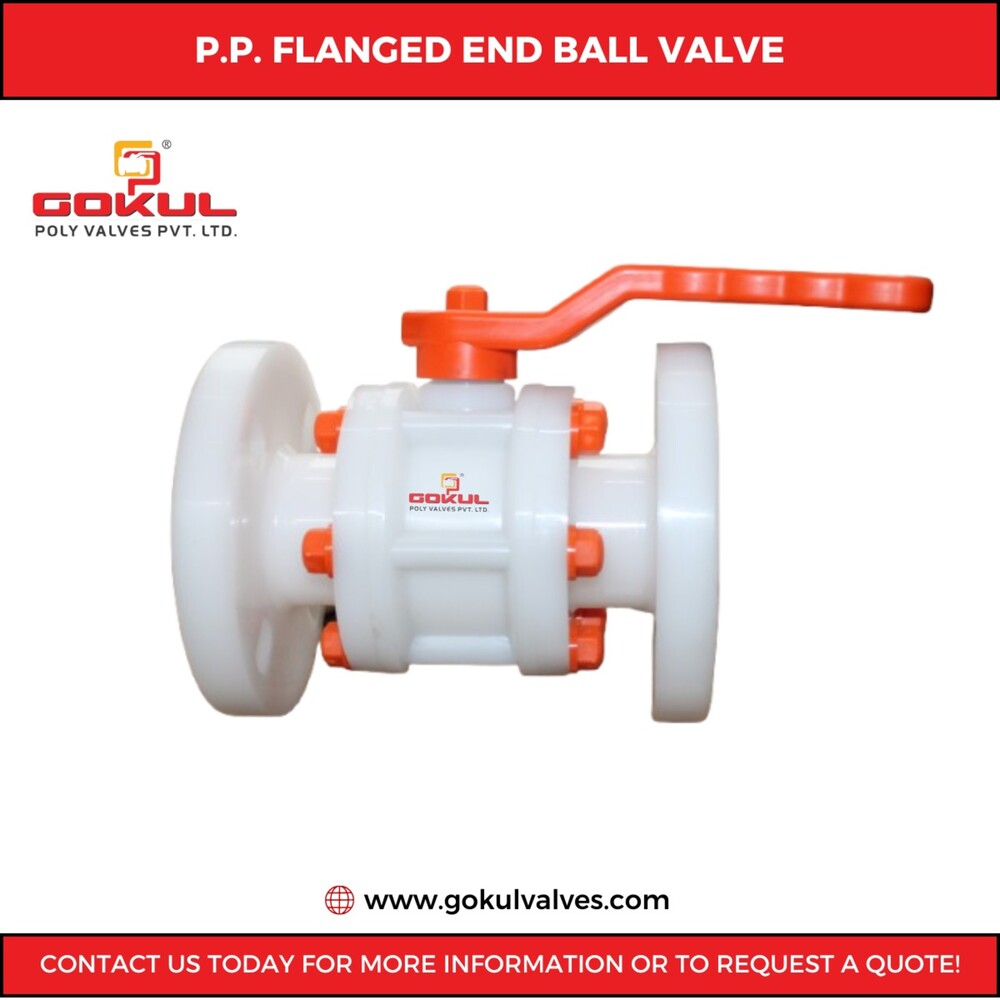

Gokul PP ball valve 8"

About Gokul PP ball valve 8"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Engineered for Efficiency and Reliability

The Gokul 8 PP Ball Valve is designed for optimal fluid control in diverse industrial and water-based systems. Its polypropylene construction resists corrosion, while the flanged ends provide stability during installation. The valves robust build ensures seamless operation under medium pressure and heightened durability, particularly in challenging environments where reliability is paramount.


Versatile Application Scope

This ball valve is suitable for both industrial and water applications, handling a variety of operational demands. Whether managing process water, chemical solutions, or routine water supply systems, its performance is consistent and dependable. The adaptable nature of the valve enables it to fit into a wide array of pipeline contexts across international and domestic markets.
