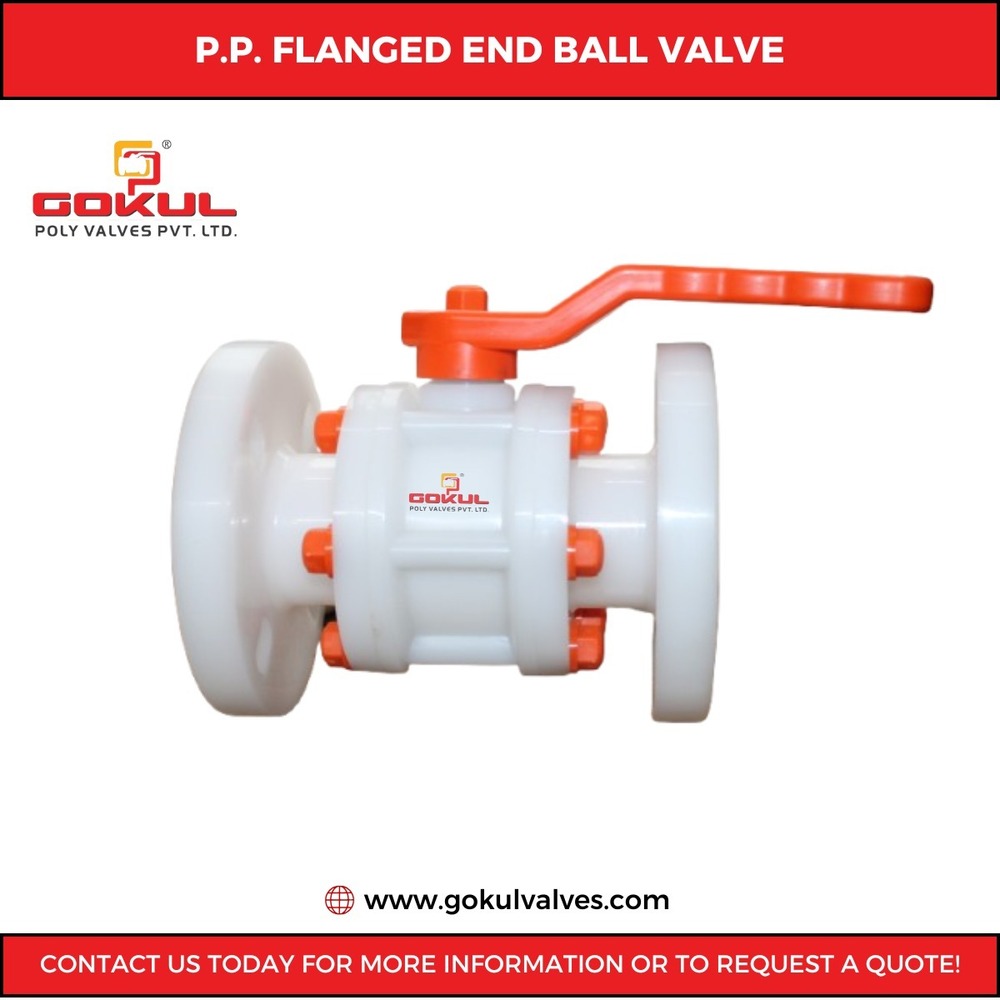

Gokul PP Ball Valve Flange End 1"

Price 394 INR/ Number

Get a Price/Quote

Gokul PP Ball Valve Flange End 1" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Ball Valve Flange End 1"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef-lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF-LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF-LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Precision in Flow Control

Engineered for accuracy and resilience, the Gokul PP Ball Valve is perfect for precise regulation of water in industrial and domestic pipelines. Its ball structure allows for minimal leakage and easy, quarter-turn operation.

Robust Polypropylene Build

Constructed from high-grade polypropylene, the valve resists chemical corrosion, making it ideal for frequent use in harsh environments. The material extends the products operating lifespan and ensures consistent performance.

Application Across Sectors

This flange end ball valve is designed to meet the diverse needs of water and industrial applications, making it suitable for factories, water treatment plants, plumbing networks, and more. The flanged connection aligns with 150 class systems, offering flexibility in various setups.

FAQs of Gokul PP Ball Valve Flange End 1":

Q: How is the Gokul PP Ball Valve Flange End 1" installed in an industrial or water system?

A: Installation is straightforward due to its 150 class flanged connections. The valve can be bolted to pipeline flanges, ensuring a secure and leak-proof fit in both industrial and water-based applications.

Q: What are the main benefits of using a polypropylene ball valve for water and industrial purposes?

A: Polypropylene offers excellent resistance to corrosion, chemicals, and scaling, ensuring durability and minimal maintenance. This makes it especially beneficial for aggressive industrial waters as well as standard water distribution.

Q: Where can the Gokul PP Ball Valve Flange End 1" be used effectively?

A: This valve is suitable for a wide range of applications, including water treatment plants, manufacturing facilities, both intentional and domestic pipeline systems, and any medium-pressure water conveyance environment.

Q: When is it advisable to use a flanged connection over other types in ball valves?

A: Flanged connections are favored when consistent sealing and easy maintenance access are required, especially in systems that undergo regular inspection or cleaning, making them suitable for industrial and municipal pipeline installations.

Q: What is the operating temperature range for the Gokul PP Ball Valve 1"?

A: This valve can handle media temperatures up to 80C, making it ideal for most water and industrial fluid processes without compromising its performance or structural integrity.

Q: How does the ball structure enhance the valves performance?

A: The ball design allows for full-bore flow with minimal pressure drop and quick shutoff, while also providing tight sealing, which is essential to prevent leaks and maintain process efficiency.

Q: What maintenance is required for this PP Ball Valve?

A: Routine visual inspection is recommended to ensure reliable operation. Given its corrosion-resistant construction, the valve usually demands low maintenance compared to metal alternatives.
