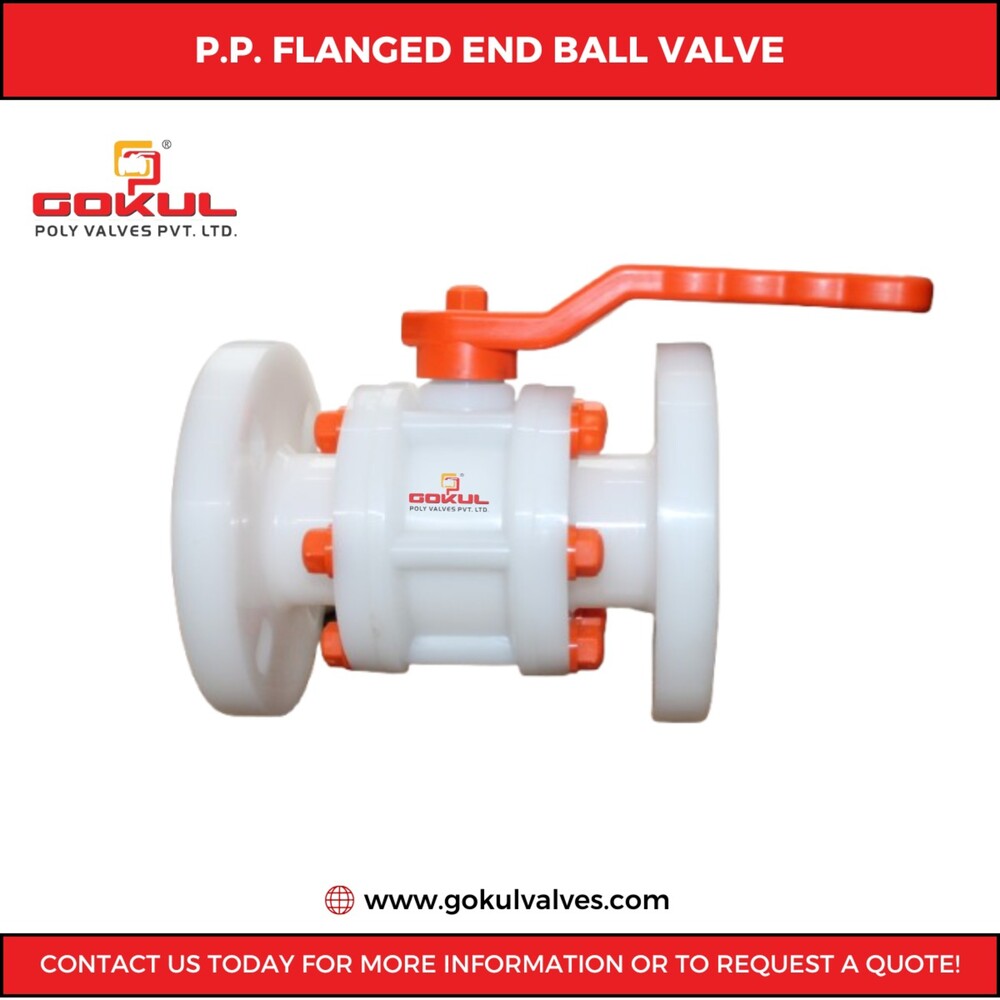

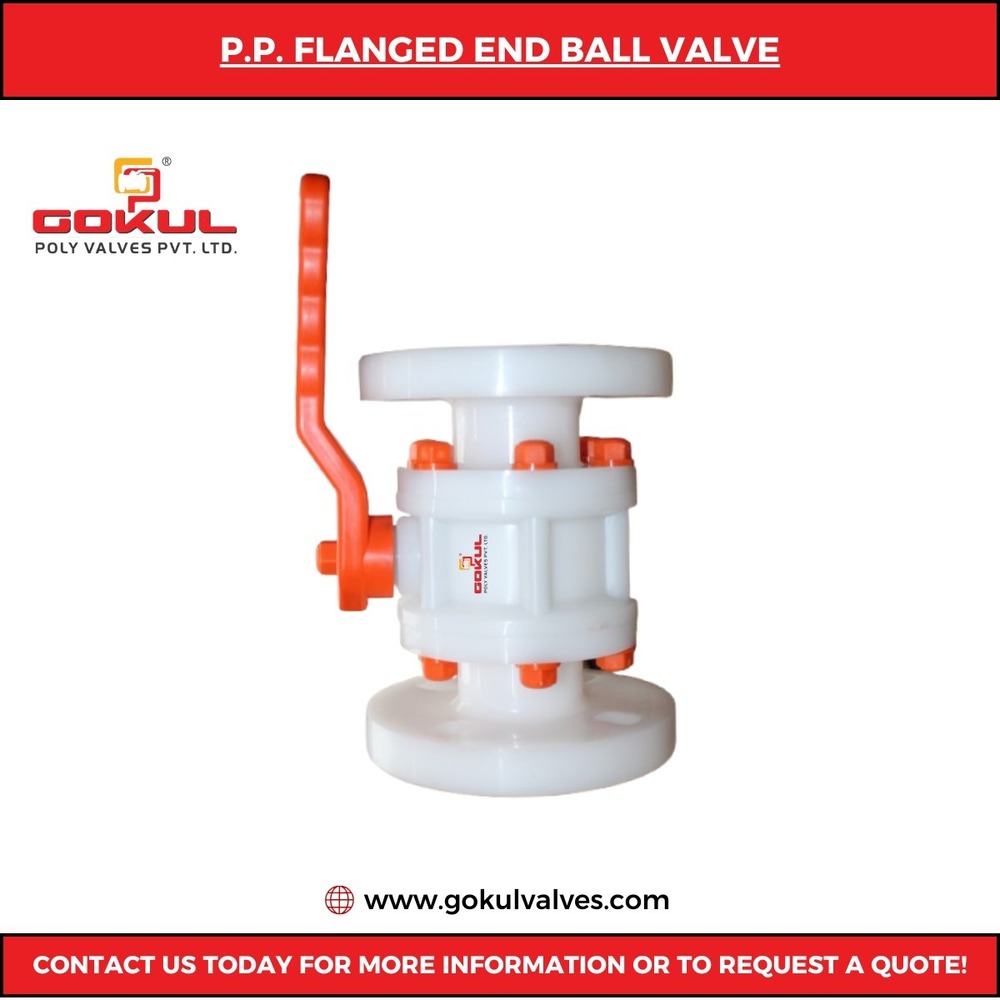

Gokul PP Ball valve Flange End 10"

38720 INR/Number

Product Details:

  • Caliber Gokul Poly Valves Pvt Ltd
  • Size 10"-250mm
  • Color White
  • Channels Intentional & Domestic Market
  • Product Type PP Ball Valve Flange End
  • Pressure Medium Pressure
  • Connection Flanged
  • Click to view more
X

Gokul PP Ball valve Flange End 10" Price And Quantity

  • 10 Number
  • 38720.00 - 38720.00 INR/Number
  • 38720 INR/Number

Gokul PP Ball valve Flange End 10" Product Specifications

  • PP Ball Valve Flange End
  • Medium Pressure
  • White
  • Intentional & Domestic Market
  • 80 Celsius (oC)
  • 150 class
  • Industrial & Water Application
  • Flanged
  • Ball
  • Water
  • Gokul Poly Valves Pvt Ltd
  • Plastic
  • 10"-250mm
  • 10"-250mm
  • Polypropylene (PP)
  • industrial and water application

Gokul PP Ball valve Flange End 10" Trade Information

  • Ahmedabad
  • Cash Advance (CA) Cash in Advance (CID) Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range " 15MM TO 12ïï-315MM
Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers

Material Specification

No. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 PP / HDPE & PVDF
2) Body 1 PP / HDPE & PVDF
3) Ball 1 PP & PVDF
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEFLON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEFLON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.
