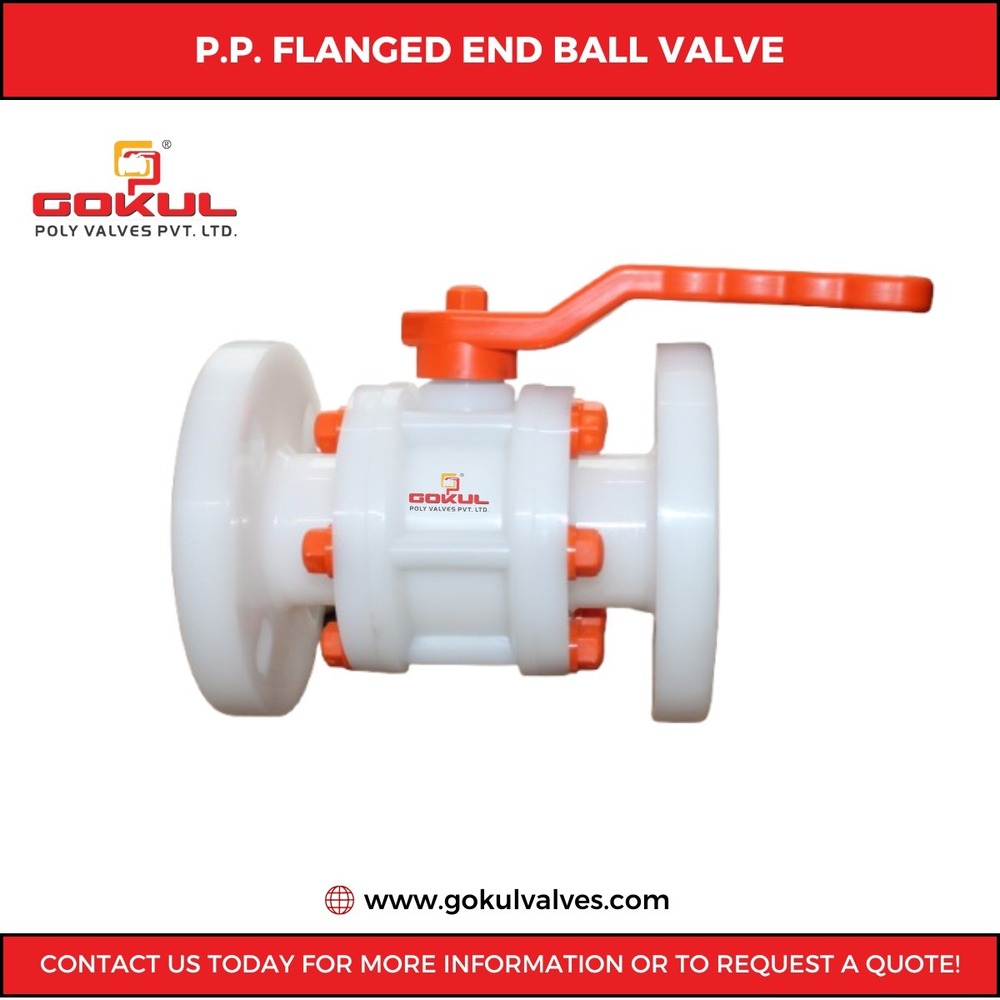

Gokul PP Ball valve Flange End 12"

Price 41150 INR/ Number

Get a Price/Quote

Gokul PP Ball valve Flange End 12" Specification

Connection
Flanged

Pressure
Medium Pressure

Channels
Intentional & Domestic Market

Caliber
Gokul Poly Valves Pvt Ltd

Structure
Ball

Usage
i

Material
Plastic

Size
12"-315MM

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve Flange End

Port Size
12"-315MM

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul PP Ball valve Flange End 12" Trade Information

Minimum Order Quantity
5 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Ball valve Flange End 12"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Advanced Polypropylene Construction

Engineered with high-quality polypropylene (PP), this valve provides excellent chemical resistance and long-lasting performance. The plastic build makes it lightweight, reduces maintenance concerns, and ensures compatibility with a variety of water and industrial fluids.

Reliable Flange End Connection

The flange end design (150 class) allows for easy and secure installation in pipeline systems. This configuration simplifies connection, maintenance, and replacement, supporting a wide range of operational requirements in industrial as well as water distribution setups.

FAQs of Gokul PP Ball valve Flange End 12":

Q: How is the Gokul PP Ball Valve Flange End 12" installed in an industrial pipeline system?

A: The valve features a flanged connection (150 class) which enables straightforward bolting to mating flanges on the piping system. Standard installation procedures can be followed, ensuring alignment and gasket placement for a secure, leak-proof fit.

Q: What makes this ball valve suitable for medium-pressure and water applications?

A: Constructed from durable polypropylene and rated for medium pressure, the valve provides robust performance in water distribution and other fluid control processes. Its resistance to corrosion and ability to withstand media temperatures up to 80C makes it ideal for such uses.

Q: When is it recommended to use this valve in your system?

A: This ball valve is recommended when systems require reliable shutoff and regulation for water or industrial fluids and when the operating pressure and temperature do not exceed its specified ratings. It is often chosen for critical applications where material compatibility and durability are important.

Q: Where can I source the Gokul PP Ball Valve Flange End 12"?

A: Gokul Poly Valves Pvt Ltd distributes these ball valves as an exporter, manufacturer, service provider, and supplier throughout India and the international market, making them widely available for both domestic and global customers.

Q: What is the typical process for maintaining this ball valve?

A: Maintenance generally involves periodic inspection for wear and tear, ensuring clean operation, and checking flange connection integrity. Polypropylene construction minimizes corrosion risks, making maintenance faster and more cost-effective compared to metal valves.

Q: How does the polypropylene material benefit this valves performance?

A: Polypropylene offers exceptional chemical resistance, lightweight handling, and reduced susceptibility to scaling or corrosion. These benefits help increase the valves service life and reliability in challenging environments.
