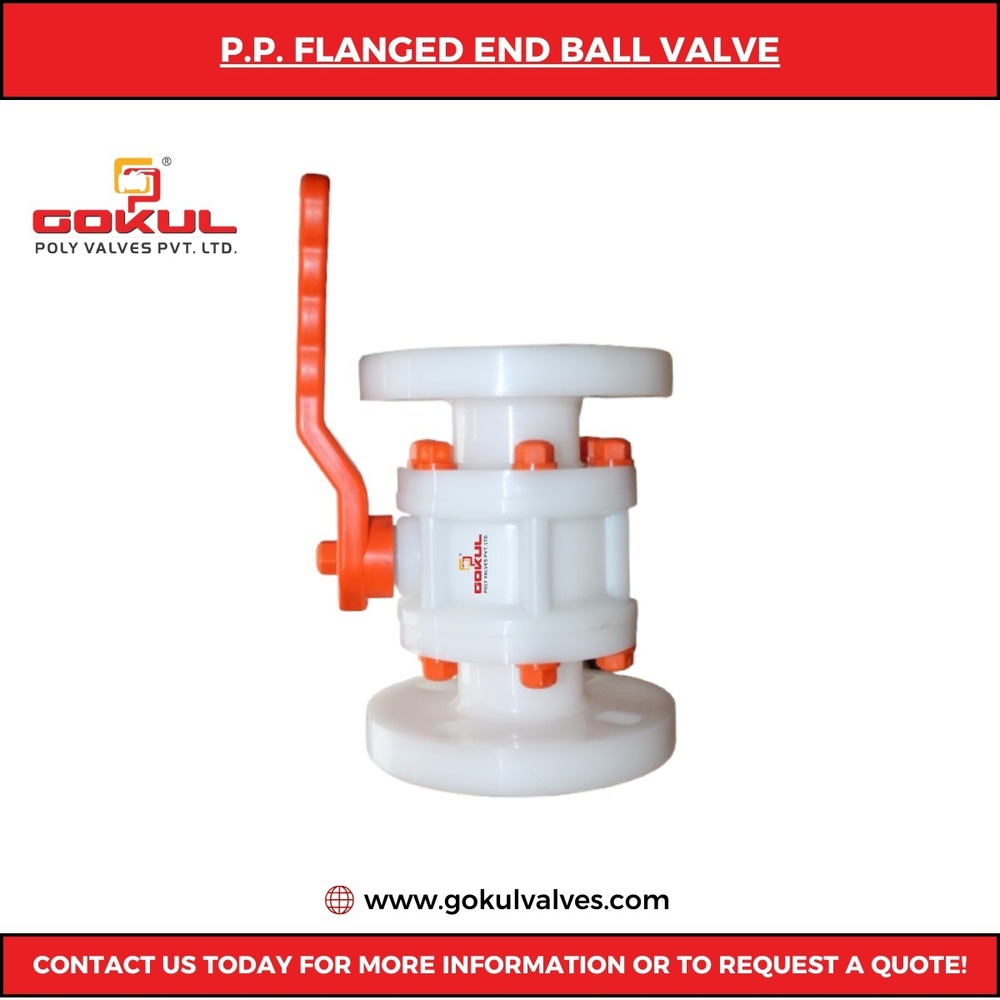

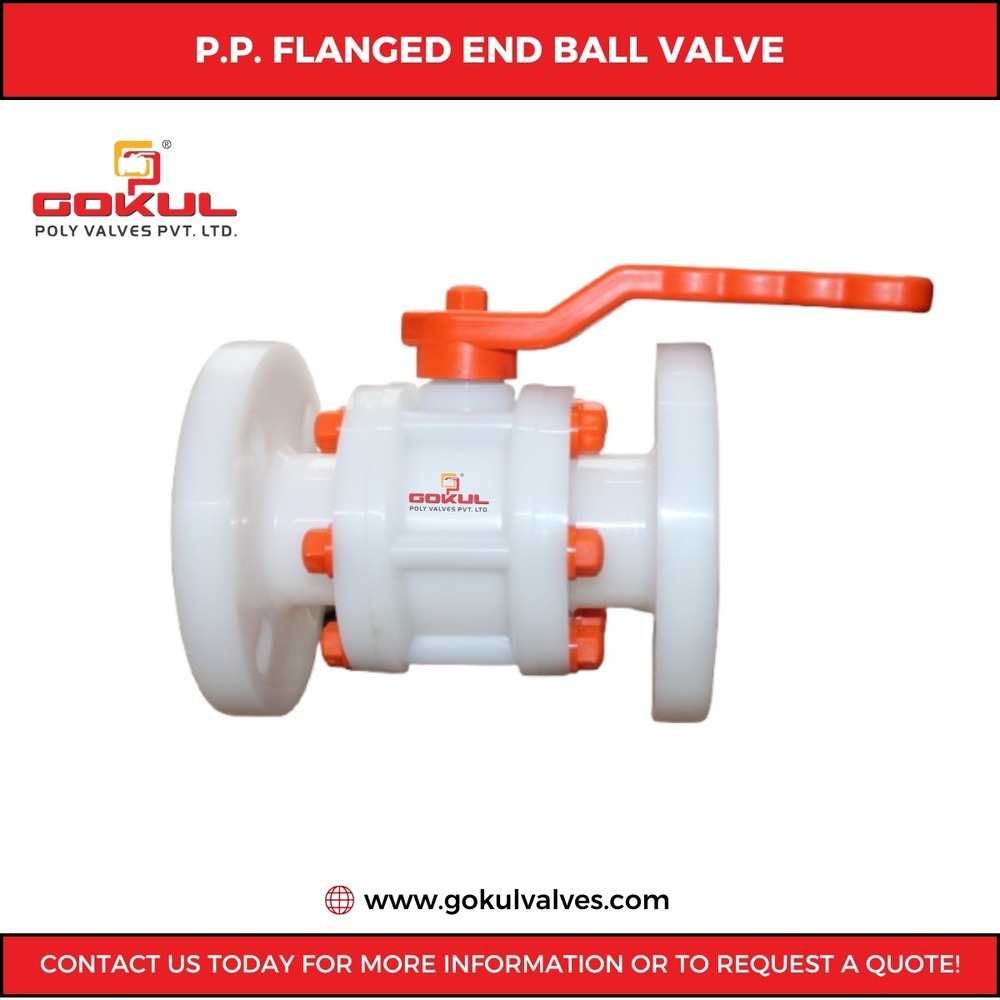

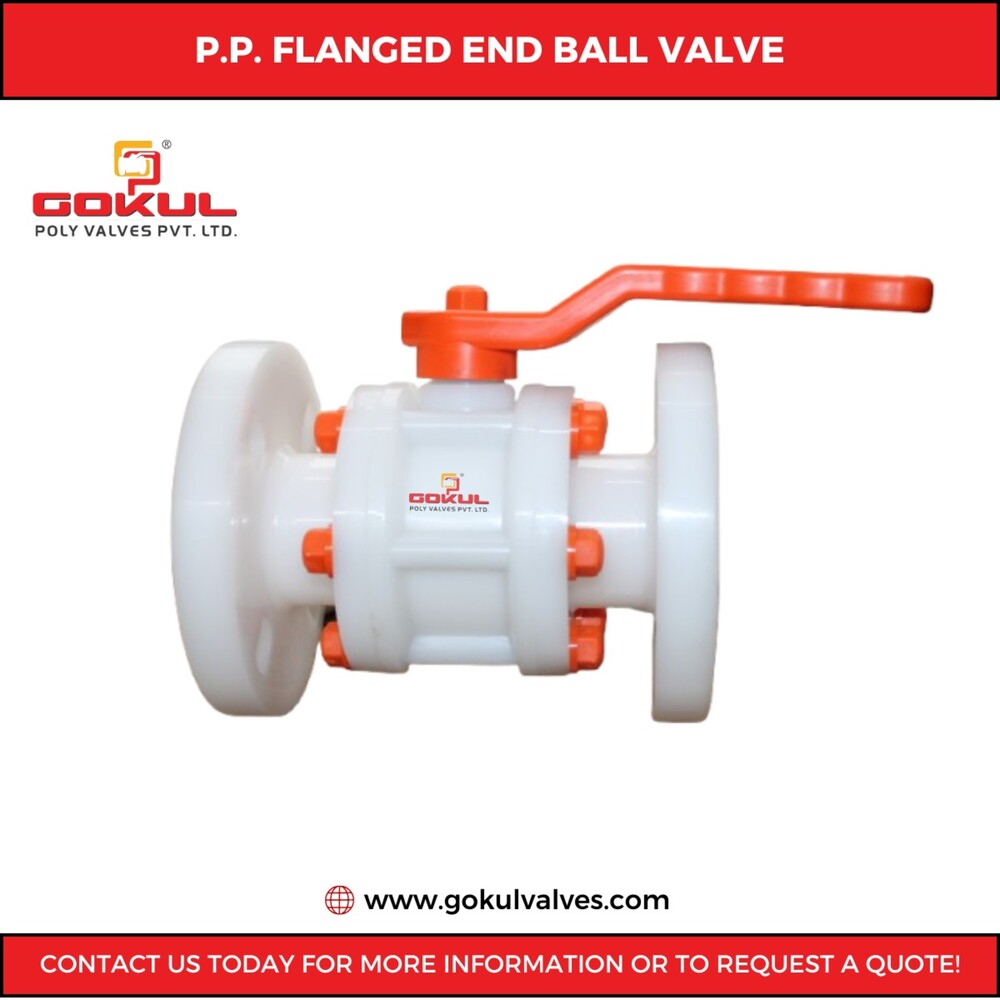

Gokul PP Ball valve Flange End 2"

Price 840 INR/ Number

Get a Price/Quote

Gokul PP Ball valve Flange End 2" Specification

  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Channels
  • Intentional & Domestic Market
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 2"-50MM
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Ball Valve Flange End
  • Port Size
  • 2"-50mm
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Ball valve Flange End 2" Trade Information

  • Minimum Order Quantity
  • 30 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Ball valve Flange End 2"

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.

FAQs of Gokul PP Ball valve Flange End 2":


Q: What material is used to manufacture the Gokul PP Ball Valve Flange End 2"?

A: The Gokul PP Ball Valve Flange End 2" is made from Polypropylene (PP) plastic.

Q: What is the temperature of media that this ball valve can handle?

A: The Gokul PP Ball Valve Flange End 2" can handle media temperatures up to 80C.

Q: What type of connection does this ball valve have?

A: The Gokul PP Ball Valve Flange End 2" has a flanged connection with a 150-class flange.

Q: What is the port size of this ball valve?

A: The port size of the Gokul PP Ball Valve Flange End 2" is 2"-50mm.

Q: For what applications is this ball valve suitable?

A: The Gokul PP Ball Valve Flange End 2" is suitable for industrial and water applications.

Q: What pressure can this ball valve withstand?

A: The Gokul PP Ball Valve Flange End 2" operates under medium pressure conditions.

Q: What is the finish and color of this ball valve?

A: The Gokul PP Ball Valve Flange End 2" has a Polypropylene (PP) finish and comes in white color.

Gokul PP Ball valve Flange End 2
Gokul PP Ball valve Flange End 2
Gokul PP Ball valve Flange End 2
Gokul PP Ball valve Flange End 2
Gokul PP Ball valve Flange End 2
Gokul PP Ball valve Flange End 2
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul PP Ball Valve 1/2

Gokul PP Ball Valve 1/2"

Price 315 INR / Number

Minimum Order Quantity : 50

Usage : Industrial & Water Application

Connection : Flanged

Finish : Polypropylene (PP)

Channels : Intentional & Domestic Market

Get a Price/Quote

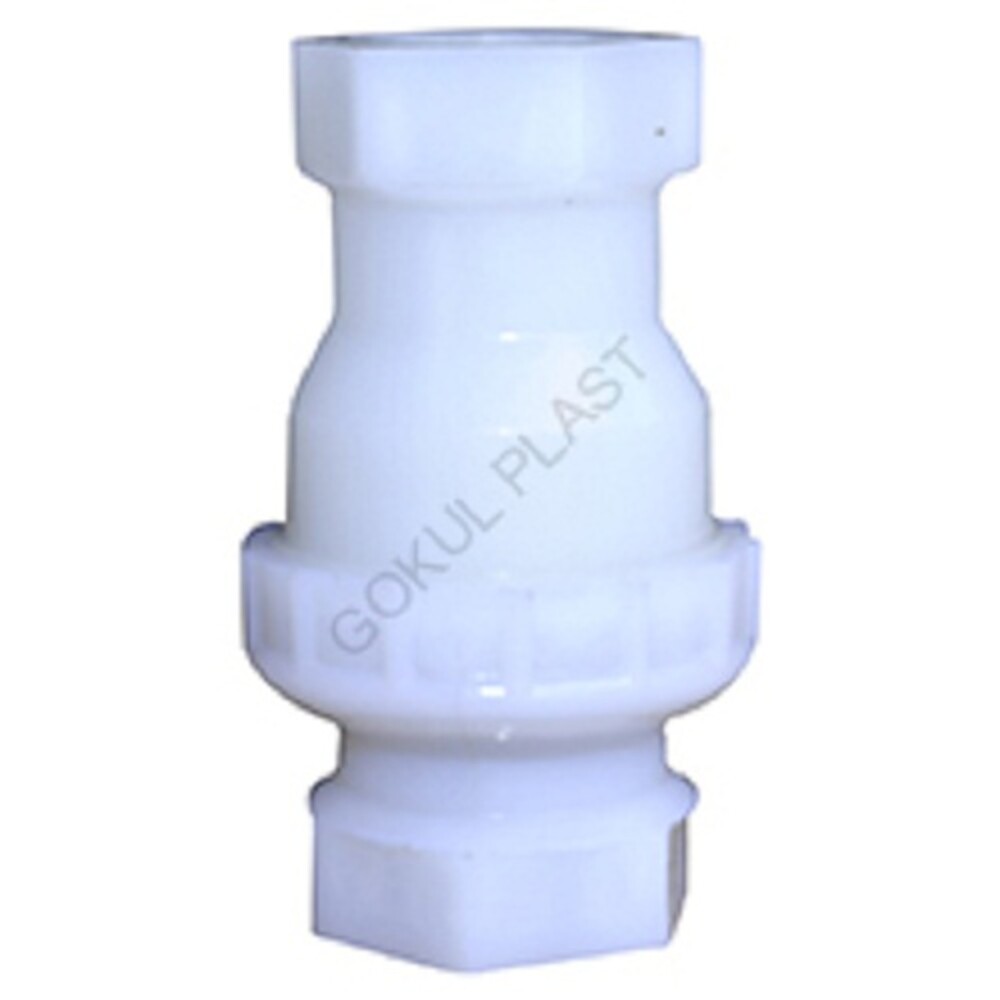

Gokul Polypropylene Non Return Valve Screwed
