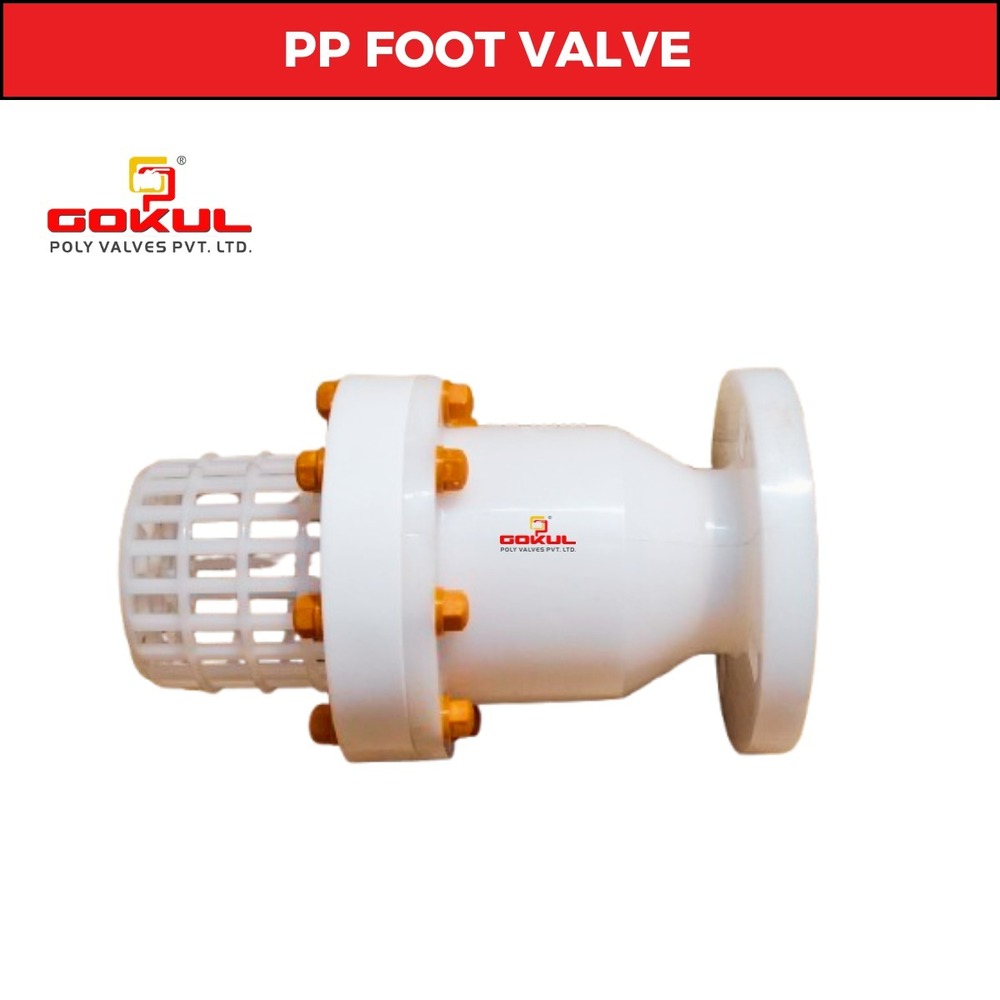

Gokul PP Flange End Foot Valve

Price 336 INR/ Number

Get a Price/Quote

Gokul PP Flange End Foot Valve Specification

  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Connection
  • Flanged
  • Pressure
  • Medium Pressure
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Flange End Foot Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Flange End Foot Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul PP Flange End Foot Valve:


Q: What are the port sizes available for the Gokul PP Flange End Foot Valve?

A: The Gokul PP Flange End Foot Valve is available in port sizes ranging from 1" to 12".

Q: What material is used to manufacture the Gokul PP Flange End Foot Valve?

A: The valve is made from polypropylene (PP) plastic material.

Q: What is the maximum temperature of media that the Gokul PP Flange End Foot Valve can handle?

A: The valve can handle media temperatures up to 80 Celsius (oC).

Q: What type of connection does the Gokul PP Flange End Foot Valve use?

A: It uses a flanged connection with a 150 class flange.

Q: What applications is the Gokul PP Flange End Foot Valve suitable for?

A: It is suitable for industrial and water applications in both domestic and intentional channels.

Q: What is the pressure rating of the Gokul PP Flange End Foot Valve?

A: The valve is designed to endure medium pressure applications.

Q: What is the structure type of the Gokul PP Flange End Foot Valve?

A: The valve features a ball structure design.

Gokul PP Flange End Foot Valve
Gokul PP Flange End Foot Valve
Gokul PP Flange End Foot Valve
Gokul PP Flange End Foot Valve
Gokul PP Flange End Foot Valve
Gokul PP Flange End Foot Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul Threaded Polypropylene Foot Valve

Gokul Threaded Polypropylene Foot Valve

Price 3135 INR / Number

Minimum Order Quantity : 10

Channels : Intentional & Domestic Market

Size : 1" To 4"

Product Type : PP Foot Valve Screw End

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote

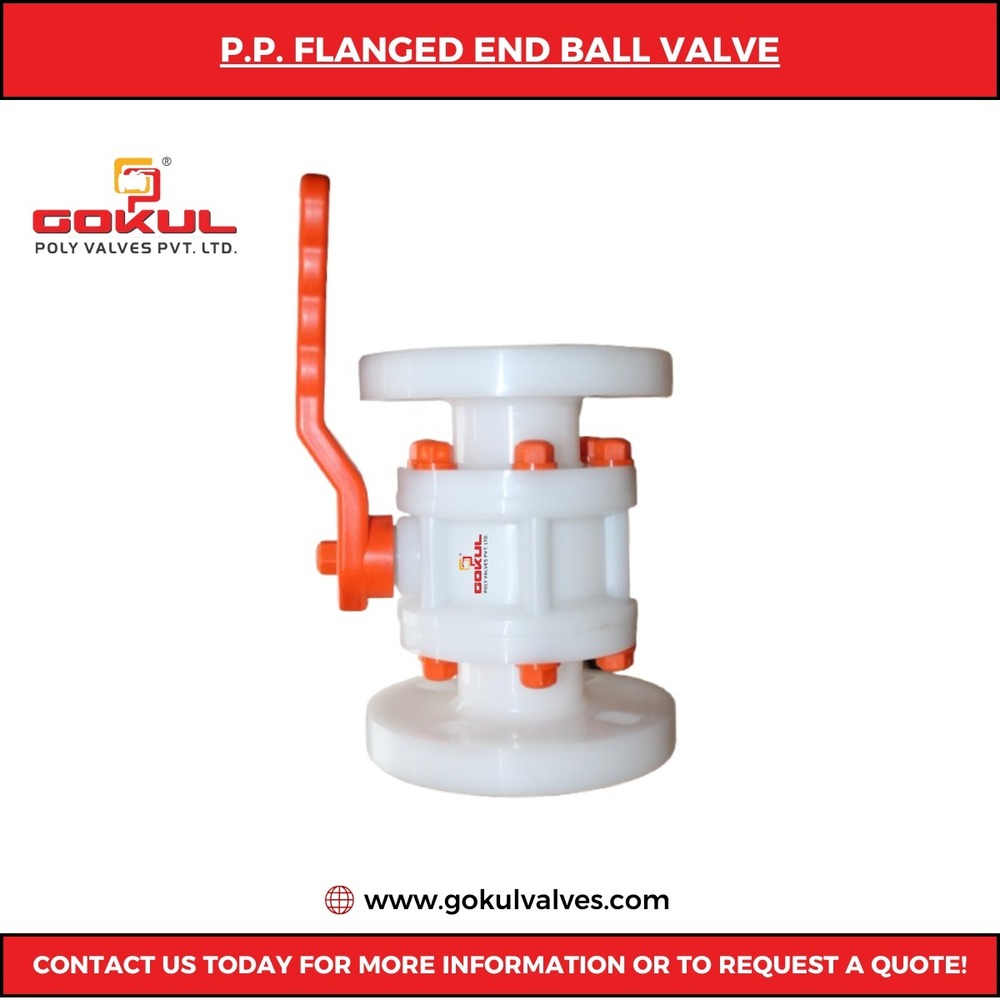

3pc. Flanged End PP Ball Valve
