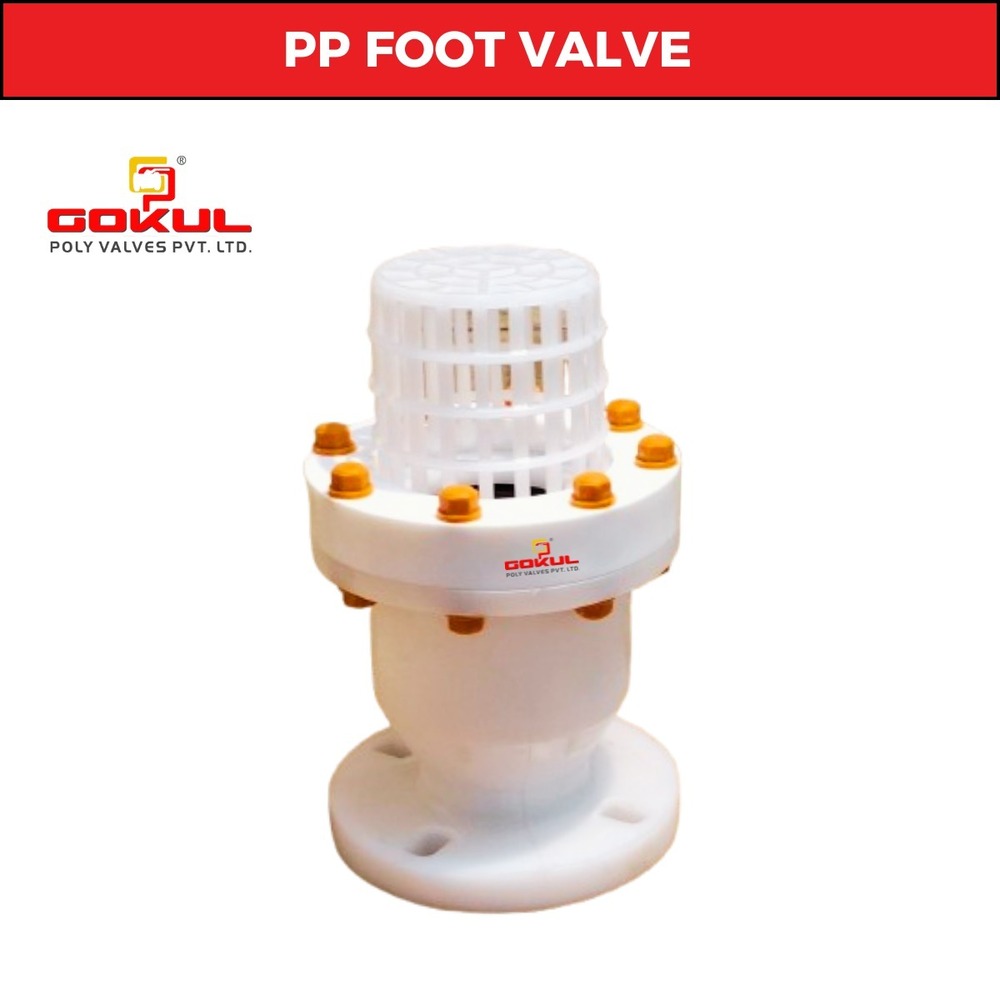

Gokul PP Foot Valve Flange End

Price 1460 INR/ Number

Get a Price/Quote

Gokul PP Foot Valve Flange End Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Connection
  • Flanged
  • Channels
  • Intentional & Domestic Market
  • Pressure
  • Medium Pressure
  • Structure
  • Ball
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Foot Valve Flange End Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Foot Valve Flange End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul PP Foot Valve Flange End:


Q: What materials are used in the Gokul PP Foot Valve Flange End?

A: The Gokul PP Foot Valve Flange End is made of durable plastic with a polypropylene (PP) finish.

Q: What sizes are available for the Gokul PP Foot Valve Flange End?

A: The product is available in sizes ranging from 1 inch to 12 inches.

Q: What pressure can the Gokul PP Foot Valve Flange End handle?

A: The valve is designed for medium-pressure applications.

Q: What temperature of media can the Gokul PP Foot Valve Flange End withstand?

A: It can handle media temperatures of up to 80C.

Q: What are the applications of the Gokul PP Foot Valve Flange End?

A: The valve is suitable for industrial and water applications.

Gokul PP Foot Valve Flange End
Gokul PP Foot Valve Flange End
Gokul PP Foot Valve Flange End
Gokul PP Foot Valve Flange End
Gokul PP Foot Valve Flange End
Gokul PP Foot Valve Flange End
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Polypropylene Screwed Non Return Valve

Polypropylene Screwed Non Return Valve

Price 1340 INR / Number

Minimum Order Quantity : 10

Connection : Screw End (BSP Threaded)

Caliber : Gokul Poly Valves Pvt Ltd

Port Size : 1" To 4"

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote

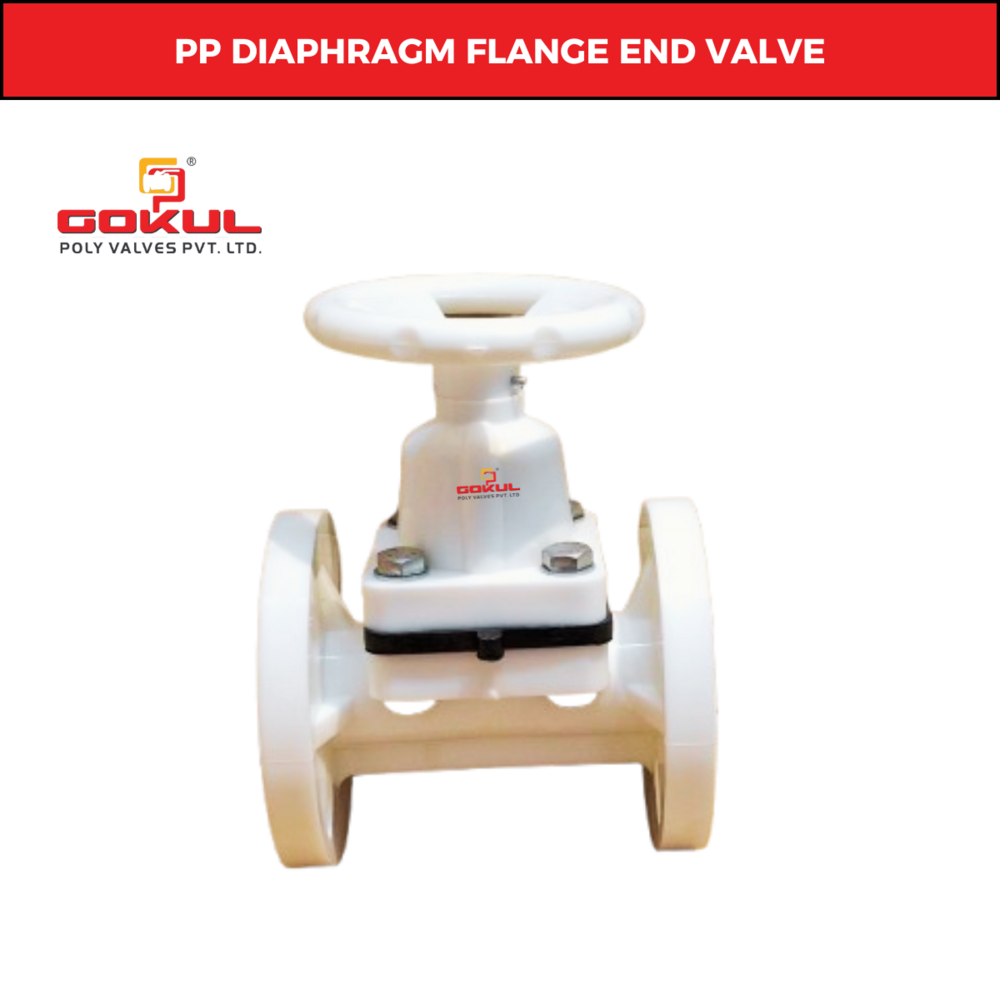

Gokul Polypropylene Diaphragm Flange End valve 4
