Send Inquiry

Request To Call Back

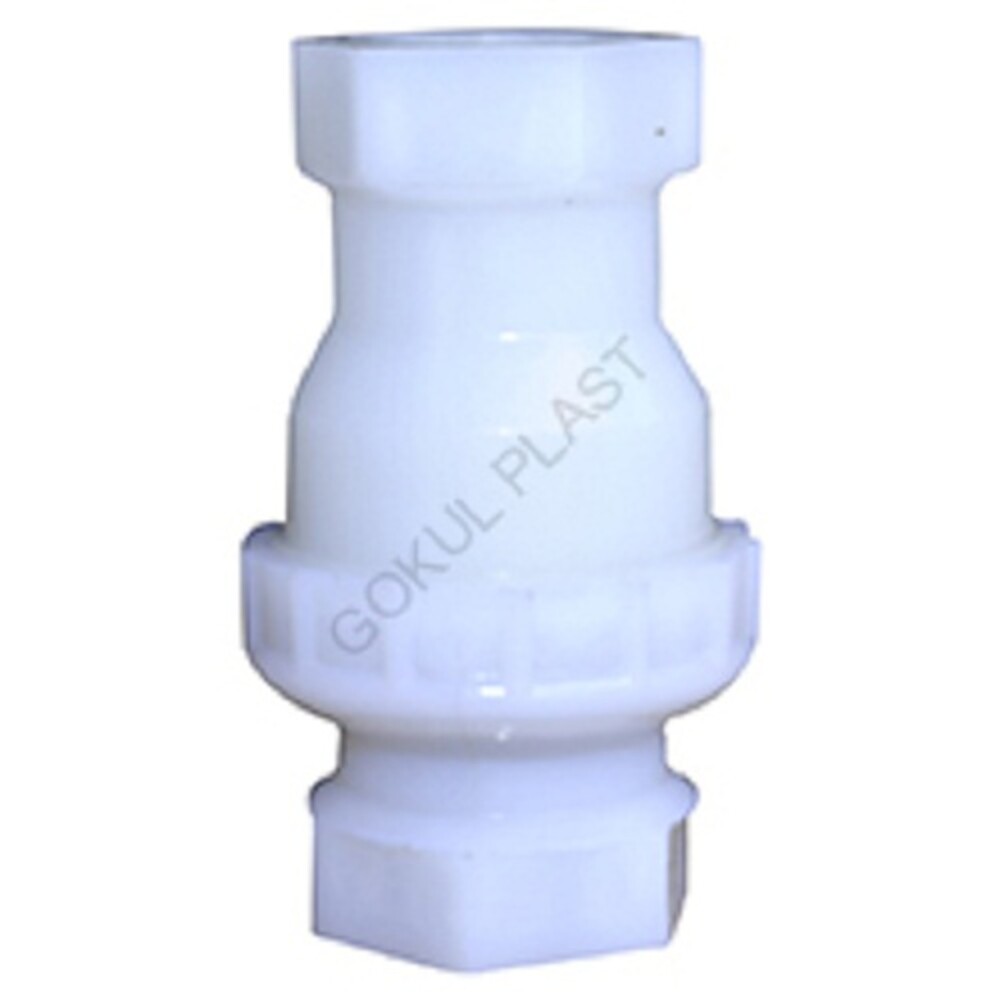

Gokul PP Non return Valve Screwed End

Price 492 INR/ Number

Get a Price/Quote

Gokul PP Non return Valve Screwed End Specification

Caliber
Gokul Poly Valves Pvt Ltd

Structure
Ball

Channels
Intentional & Domestic Market

Pressure
Medium Pressure

Connection
Screw End (BSP Threaded)

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
1" To 4"

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Screw End

Port Size
1" To 4"

Color
White

Flange
BSP Threaded

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul PP Non return Valve Screwed End Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Non return Valve Screwed End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY 1) Top Body Polypropylene 1 2) Bottam Body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req

FAQs of Gokul PP Non return Valve Screwed End:

Q: What is the material used for the Gokul PP Non Return Valve Screwed End?

A: The material used for the Gokul PP Non Return Valve Screwed End is plastic, specifically polypropylene (PP).

Q: What sizes are available for the Gokul PP Non Return Valve Screwed End?

A: The Gokul PP Non Return Valve Screwed End is available in sizes ranging from 1" to 4".

Q: What is the maximum temperature this valve can handle?

A: The Gokul PP Non Return Valve Screwed End can handle media temperatures of up to 80 degrees Celsius (C).

Q: What type of connection is used for this valve?

A: The valve uses a screw end connection with BSP threaded flanges.

Q: In what applications can the Gokul PP Non Return Valve Screwed End be used?

A: This valve is suitable for industrial and water applications.

Q: What is the pressure rating of this valve?

A: The Gokul PP Non Return Valve Screwed End is designed for medium-pressure applications.

Q: What is the structure of the valve?

A: The valve has a ball structure.
