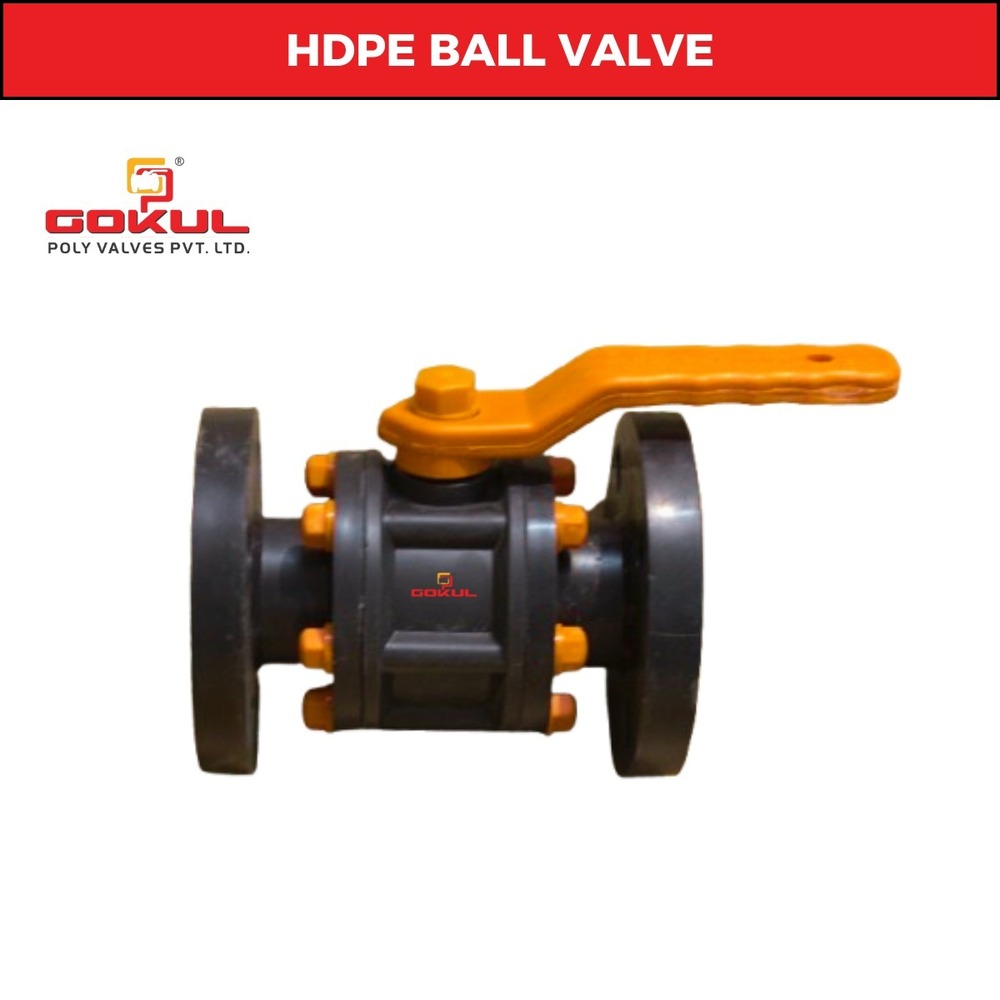

HDPE Ball Valve Flange End

Name: HDPE Ball Valve Flange End
Brand: GOKUL POLY VALVES PRIVATE LIMITED
Price: 400 INR
Availability: InStock

Price 400 INR/ Number

Get a Price/Quote

HDPE Ball Valve Flange End Specification

Connection
Flanged

Channels
Intentional & Domestic Market

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Structure
Ball

Material
Plastic

Usage
Industrial & Water Application

Size
1/2" To 12"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
HDPE Ball Valve Flange End

Port Size
1/2" To 12"

Flange
150 class

Color
Black

Finish
HDPE - High-Density Polyethylene

Application
industrial and water application

HDPE Ball Valve Flange End Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Supply Ability
50 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About HDPE Ball Valve Flange End

Technical Specification

Material Of Construction	PP (Polypropylene) & HDPE (High density polyethylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef-lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	HDPE
2)	Body	1	HDPE
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF-LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF-LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

High-Quality HDPE Construction

Utilizing premium HDPE (High-Density Polyethylene), these ball valves guarantee excellent resistance against corrosion, chemical exposure, and wear. The material ensures the valves durability and longevity under demanding industrial and water-based conditions, making it a suitable choice for environments requiring minimal upkeep and maximum reliability.

Versatility in Application and Sizing

Designed with adaptability in mind, the HDPE Ball Valve Flange End is offered in sizes from 1/2" to 12", accommodating a wide range of piping systems. Suitable for both industrial and water applications, its standardized 150 class flange ensures straightforward installation and compatibility with various system requirements.

FAQs of HDPE Ball Valve Flange End:

Q: How does the HDPE Ball Valve Flange End enhance system reliability in industrial and water applications?

A: The valves high-density polyethylene body offers exceptional resistance to corrosion and chemical damage, ensuring reliable operation and a longer service life in demanding industrial and water-based systems.

Q: What is the recommended process for installing this valve?

A: Installation is straightforward due to its standardized flanged ends (150 class). Align the valve flanges with the piping flanges, insert gaskets, and fasten the bolts evenly to ensure a leak-proof connection.

Q: When should I use an HDPE Ball Valve Flange End instead of other types of valves?

A: This valve is ideal when you need reliable shut-off and flow control for water media under medium pressure, particularly in systems where plastic construction offers advantages over metal, such as resistance to corrosion and chemical exposure.

Q: Where can the HDPE Ball Valve Flange End be deployed in existing piping systems?

A: It can be used in both industrial and domestic water systems wherever there is a need for flow control, thanks to its wide range of sizes and compatibility with standard flanged connections.

Q: What are the primary benefits of using HDPE material for ball valves?

A: HDPE provides excellent durability, chemical resistance, minimal maintenance requirements, and lightweight construction, making it ideal for medium-pressure water and industrial applications.

Q: How is medium pressure managed with this valve?

A: The robust HDPE construction and flanged design allow the valve to maintain integrity under medium pressure, ensuring dependable operation without compromising performance.
