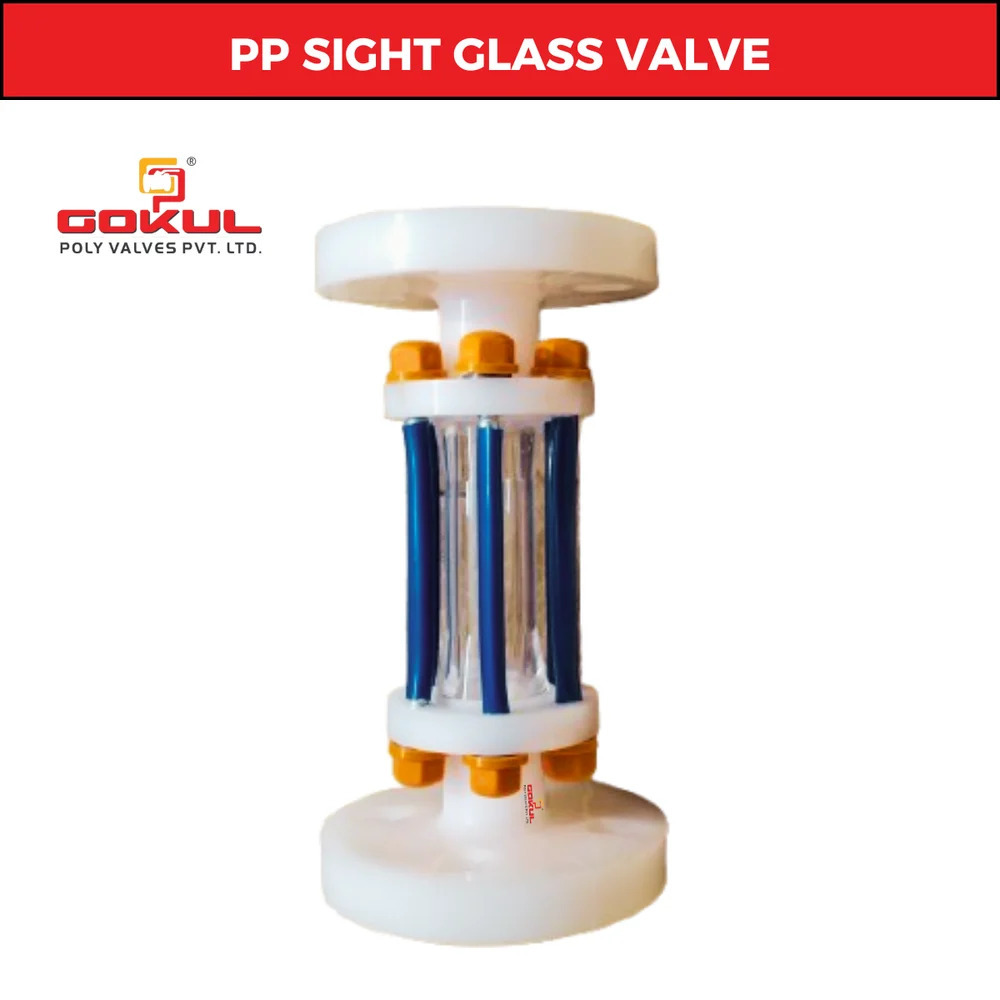

P.P. Sight Glass Flanged Ends

Price 2310 INR/ Number

Get a Price/Quote

P.P. Sight Glass Flanged Ends Specification

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Connection
Flanged

Structure
Ball

Pressure
Medium Pressure

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
1/2" To 12"

Temperature of Media
80 Celsius (oC)

Product Type
PP Sight Glass Valve / PP Flow Indicator Valve

Port Size
1/2" To 12"

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

P.P. Sight Glass Flanged Ends Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About P.P. Sight Glass Flanged Ends

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, full bore, Tef-lon seated, borosil glass Design 3 piece design Test pressure 8kg Max working temp 60 c (consistently) Size Range 15MM TO 12 -315MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Side Piece/ Connector Polypropylene 2 2) Glss Tube Glass ( BOROSIL) 1 3) Crisent Ring PTFE (Tef-lon) 2 4) Stud M.S./ S.S. REQ 5) Nuts wisher M.S./ S.S. REQ 6) Nut Cap Polypropylene REQ 7) Stud Tube PP / PVC Coated REQ

FAQs of P.P. Sight Glass Flanged Ends:

Q: What is the size range available for the P.P. Sight Glass Flanged Ends?

A: The P.P. Sight Glass Flanged Ends is available in sizes ranging from 1/2" to 12".

Q: What material is used to manufacture the P.P. Sight Glass Flanged Ends?

A: The P.P. Sight Glass Flanged Ends is made of polypropylene (PP) plastic.

Q: What is the maximum temperature of media that the P.P. Sight Glass Flanged Ends can handle?

A: The P.P. Sight Glass Flanged Ends can handle media temperatures up to 80C.

Q: What type of connection is provided in the P.P. Sight Glass Flanged Ends?

A: The connection for the P.P. Sight Glass Flanged Ends is flanged.

Q: What is the pressure rating of the P.P. Sight Glass Flanged Ends?

A: The P.P. Sight Glass Flanged Ends is designed for medium pressure applications.
