Send Inquiry

Request To Call Back

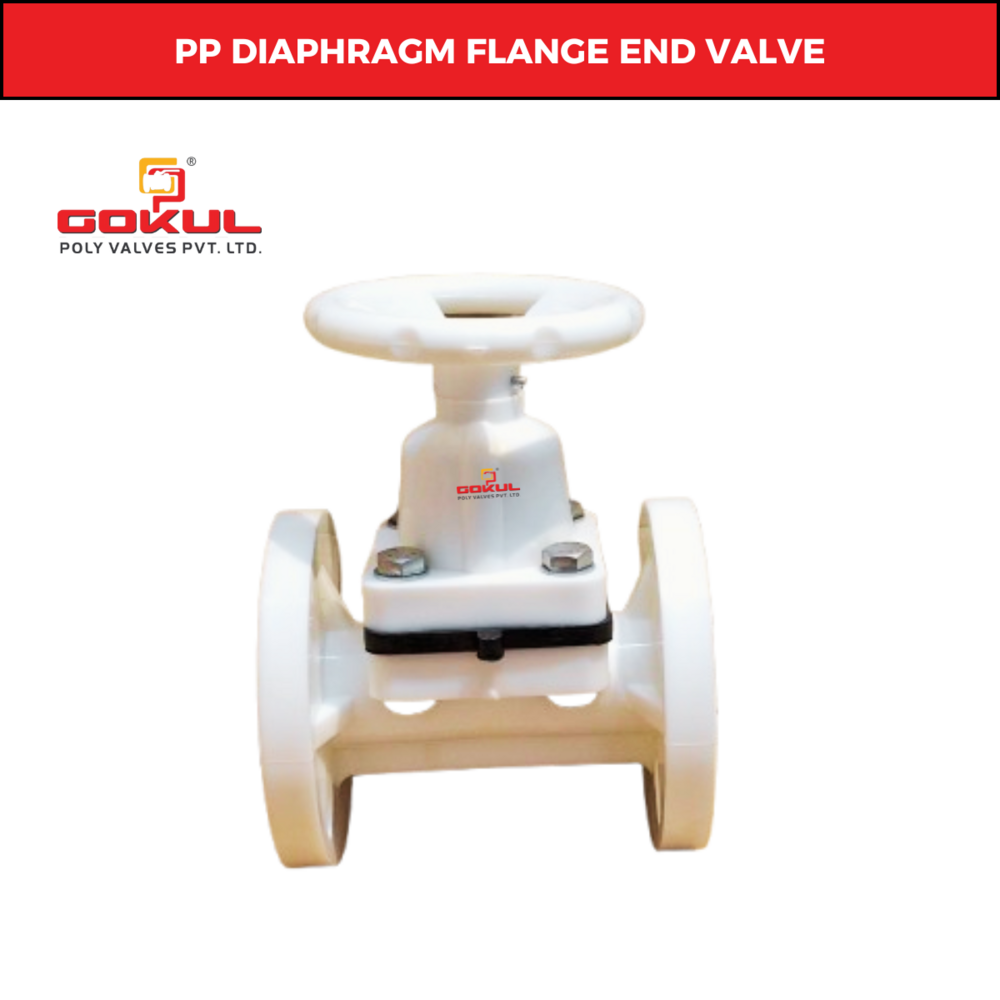

polypropylene Diaphragm Flange End Valve 1.5"

Price 690 INR/ Number

Get a Price/Quote

polypropylene Diaphragm Flange End Valve 1.5" Specification

Usage
Industrial & Water Application

Size
1.5"-40mm

Product Type
PP Diaphragm Valve Flange End

Color
White

polypropylene Diaphragm Flange End Valve 1.5" Trade Information

Minimum Order Quantity
80 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About polypropylene Diaphragm Flange End Valve 1.5"

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of polypropylene Diaphragm Flange End Valve 1.5":

Q: What material is used to manufacture the Polypropylene Diaphragm Flange End Valve 1.5"?

A: The valve is made from polypropylene (PP), a durable and chemical-resistant plastic material.

Q: What is the maximum temperature the valve can handle?

A: The valve can handle a maximum temperature of 80C.

Q: What type of connection does the valve use?

A: The valve uses a flanged connection for installation.

Q: What is the pressure rating of the valve?

A: The valve is rated for medium pressure applications.

Q: What is the size and port dimension of the Polypropylene Diaphragm Flange End Valve?

A: The valve size is 1.5" with a port dimension of 40mm.

Q: What are the primary applications of this valve?

A: The valve is suitable for industrial and water applications.

Q: What is the flange class of this valve?

A: The flange of this valve is 150 class.
