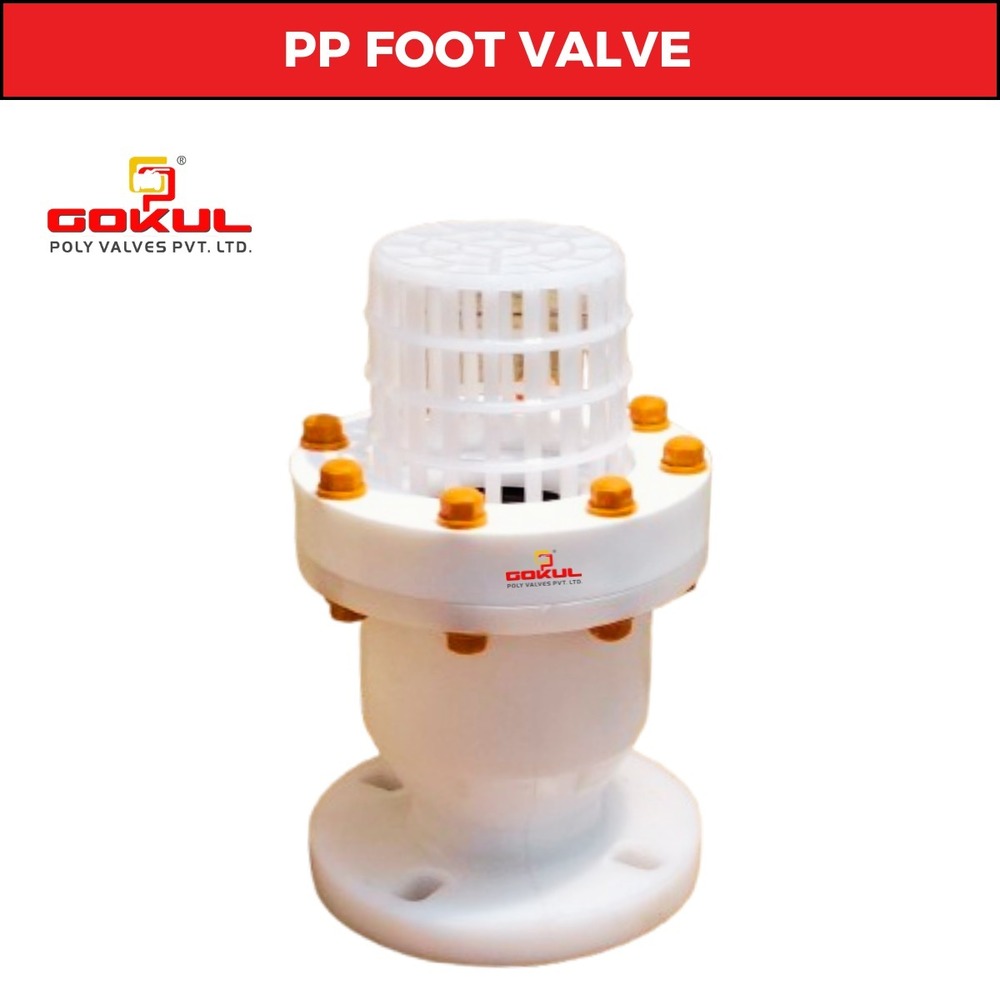

Polypropylene Foot Valve

3000 INR/Number

Product Details:

  • Channels Intentional & Domestic Market
  • Size 1" To 12"
  • Usage Industrial & Water Application
  • Caliber Gokul Poly Valves Pvt Ltd
  • Pressure Medium Pressure
  • Connection Flanged
  • Product Type PP Foot Valve Flange End
  • Click to view more
X

Polypropylene Foot Valve Price And Quantity

  • 10 Number
  • 3000 INR/Number
  • 3000.00 - 3000.00 INR/Number

Polypropylene Foot Valve Product Specifications

  • Plastic
  • Medium Pressure
  • industrial and water application
  • Industrial & Water Application
  • Gokul Poly Valves Pvt Ltd
  • Acid
  • Intentional & Domestic Market
  • 1" To 12"
  • Ball
  • White
  • 1" To 12"
  • 80 Celsius (oC)
  • Polypropylene (PP)
  • PP Foot Valve Flange End
  • Flanged
  • 150 class

Polypropylene Foot Valve Trade Information

  • Ahmedabad
  • Cash Advance (CA) Cash in Advance (CID) Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 25MM to 315MM Test pressure 10 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION QTY MATERIAL
1) Top Body 1 Polypropylene
2) Bottam Body 1 Polypropylene
3) Screen 1 Polypropylene
4) Ball 1 Polypropylene
5) Ball Ring 1 Polypropylene
6) Seat Ring 1 Neoprene Rubber
7) Stud, Nut & Washer Req. SS
