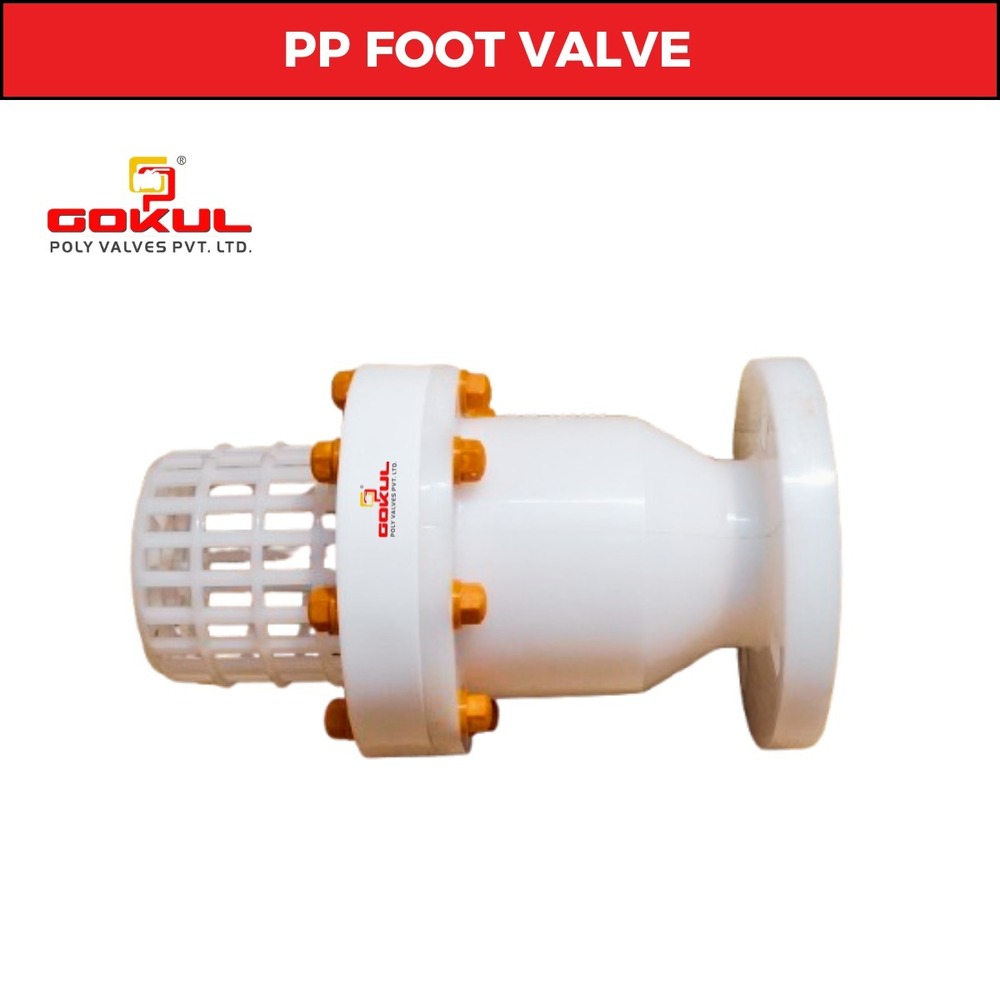

polypropylene Foot Valve Flange Type

Price 3000 INR/ Number

Get a Price/Quote

polypropylene Foot Valve Flange Type Specification

  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


polypropylene Foot Valve Flange Type Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About polypropylene Foot Valve Flange Type

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of polypropylene Foot Valve Flange Type:


Q: What is the size range available for the Polypropylene Foot Valve Flange Type?

A: The Polypropylene Foot Valve Flange Type is available in sizes ranging from 1" to 12".

Q: What type of connection does the Polypropylene Foot Valve Flange Type use?

A: This product utilizes a flanged connection for installation.

Q: Can the Polypropylene Foot Valve Flange Type handle medium pressure conditions?

A: Yes, this foot valve is designed to handle medium pressure conditions effectively.

Q: What is the maximum temperature the Polypropylene Foot Valve Flange Type can operate at?

A: The product can function at a media temperature of up to 80C.

Q: What applications are suitable for the Polypropylene Foot Valve Flange Type?

A: This foot valve is suitable for industrial and water applications in both domestic and intentional markets.

Q: What material is used in the construction of the Polypropylene Foot Valve Flange Type?

A: The valve is constructed using high-quality polypropylene (PP) plastic material.

Q: What pressure rating does the flange of the Polypropylene Foot Valve Flange Type comply with?

A: The flange complies with the 150-class pressure rating.

polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
polypropylene Foot Valve Flange Type
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul Polypropylene Foot Valve Threaded End

Gokul Polypropylene Foot Valve Threaded End

Price 1280 INR / Number

Minimum Order Quantity : 10

Connection : Screw End (BSP Threaded)

Channels : Intentional & Domestic Market

Temperature of Media : 80 Celsius (oC)

Caliber : Gokul Poly Valves Pvt Ltd

Get a Price/Quote
Polypropylene Foot valve Flanged

Polypropylene Foot valve Flanged

Price 536 INR / Number

Minimum Order Quantity : 10

Connection : Flanged

Channels : Intentional & Domestic Market

Temperature of Media : 80 Celsius (oC)

Caliber : Gokul Poly Valves Pvt Ltd

Get a Price/Quote
Screwed End PP Diaphragm Valve

Screwed End PP Diaphragm Valve

Price 325 INR / Number

Minimum Order Quantity : 10

Connection : Screw End (BSP Threaded)

Channels : Intentional & Domestic Market

Temperature of Media : 80 Celsius (oC)

Caliber : Gokul Poly Valves Pvt Ltd

Get a Price/Quote

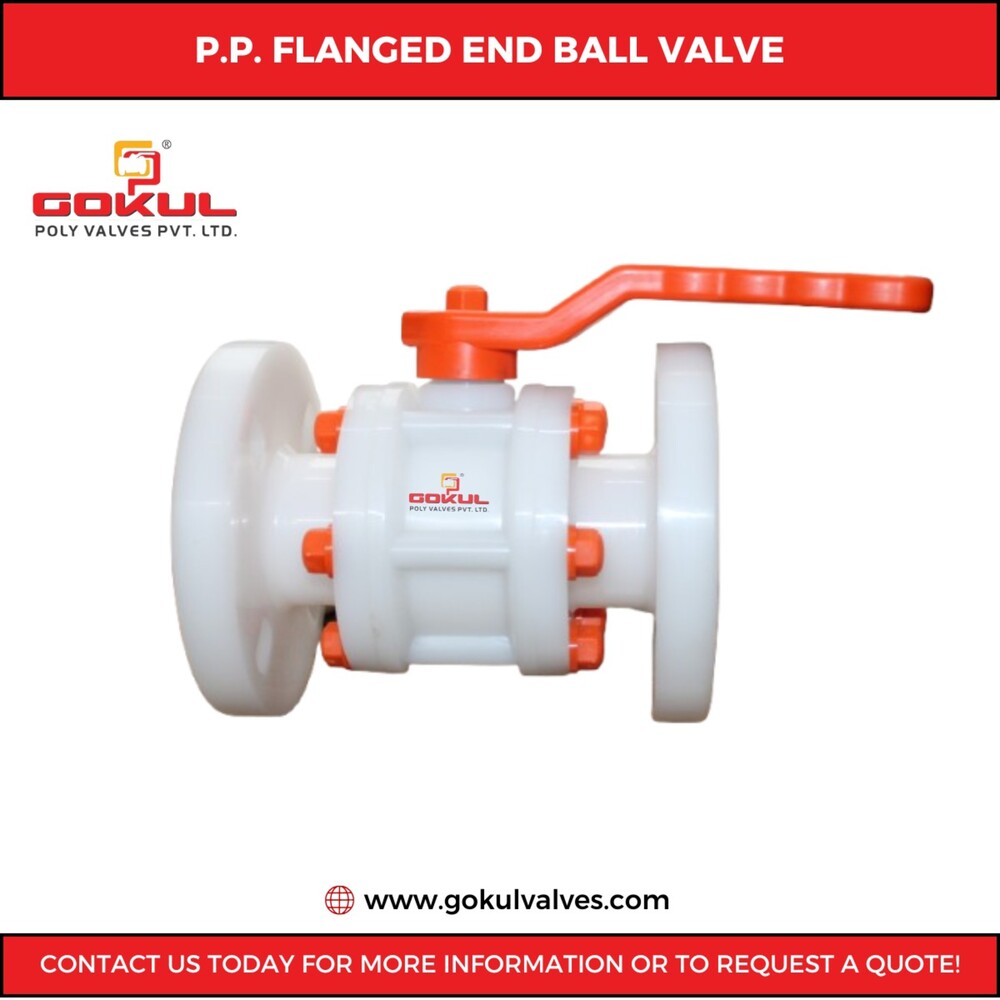

pp 3 piece Flange End Ball Valve
