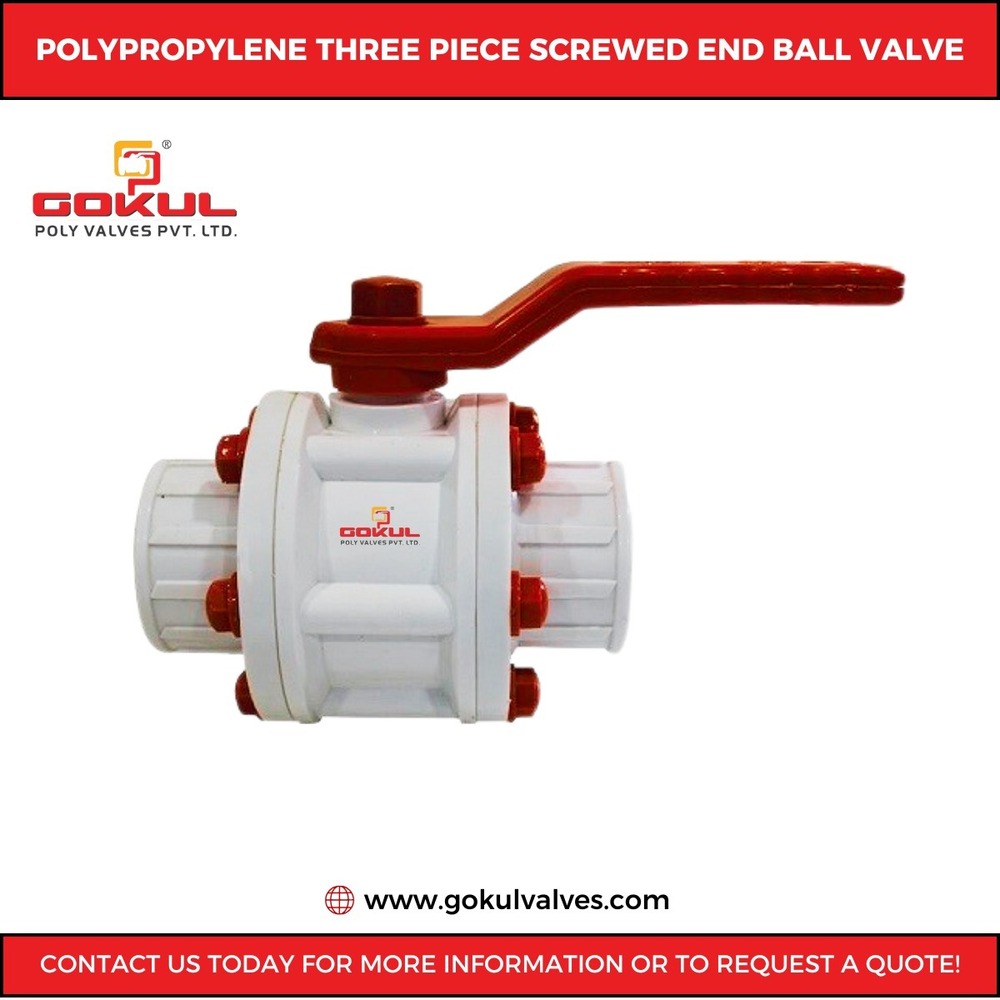

Polypropylene PP Screwed Ball Valve

About Polypropylene PP Screwed Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4ï
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Reliable Performance for Industrial and Domestic Markets

Gokul Poly Valves PP Screwed Ball Valves are engineered to meet the needs of both intentional and domestic market applications. Their tough polypropylene construction and screw end (BSP threaded) connections ensure secure installation and operational longevity, making them a trustworthy choice for water and medium-pressure industrial systems.


Versatile Connection and Fit

Available in sizes from 1/2" to 4", and featuring BSP threaded screw ends, these valves are compatible with a wide range of pipeline configurations. Their white finish and structured ball design offer not only aesthetic consistency but also mechanical reliability across water supply and industrial uses.


Designed for High Temperature and Pressure

These PP ball valves are rated for continuous operation at temperatures up to 80C, providing stable performance under medium pressure conditions. Whether used in industrial processes or water supply systems, the valve maintains tight shutoff and leak-free operation, even in challenging environments.
