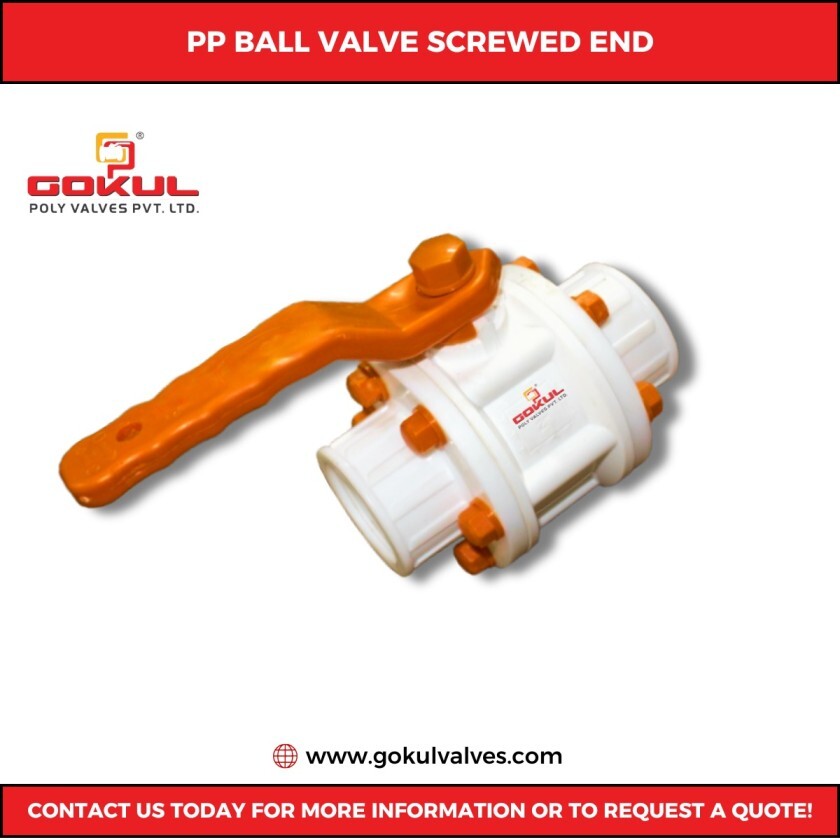

Polypropylene Screwed End Ball Valve

About Polypropylene Screwed End Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4ï
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Versatile Industrial & Water Solution

Engineered specifically for industrial and water applications, this polypropylene ball valve offers exceptional performance in diverse settings. Its advanced construction ensures reliable operation under medium pressure and up to 80C, managing water or other compatible media effortlessly. From factories to municipal water systems, it caters to broad user needs.


Robust Polypropylene Construction

Manufactured from premium polypropylene (PP), this valve resists corrosion and chemical exposure, enhancing lifespan and reliability. Its white finish adds professional appeal, while the ball structure guarantees secure flow control for extended use within various installations.


User-Friendly Screw End Connection

Featuring a BSP threaded screw end, the valve allows quick and straightforward installation. Suited for a port size range of 1/2" to 4", it minimizes downtime and streamlines the process for both maintenance and new setups.
