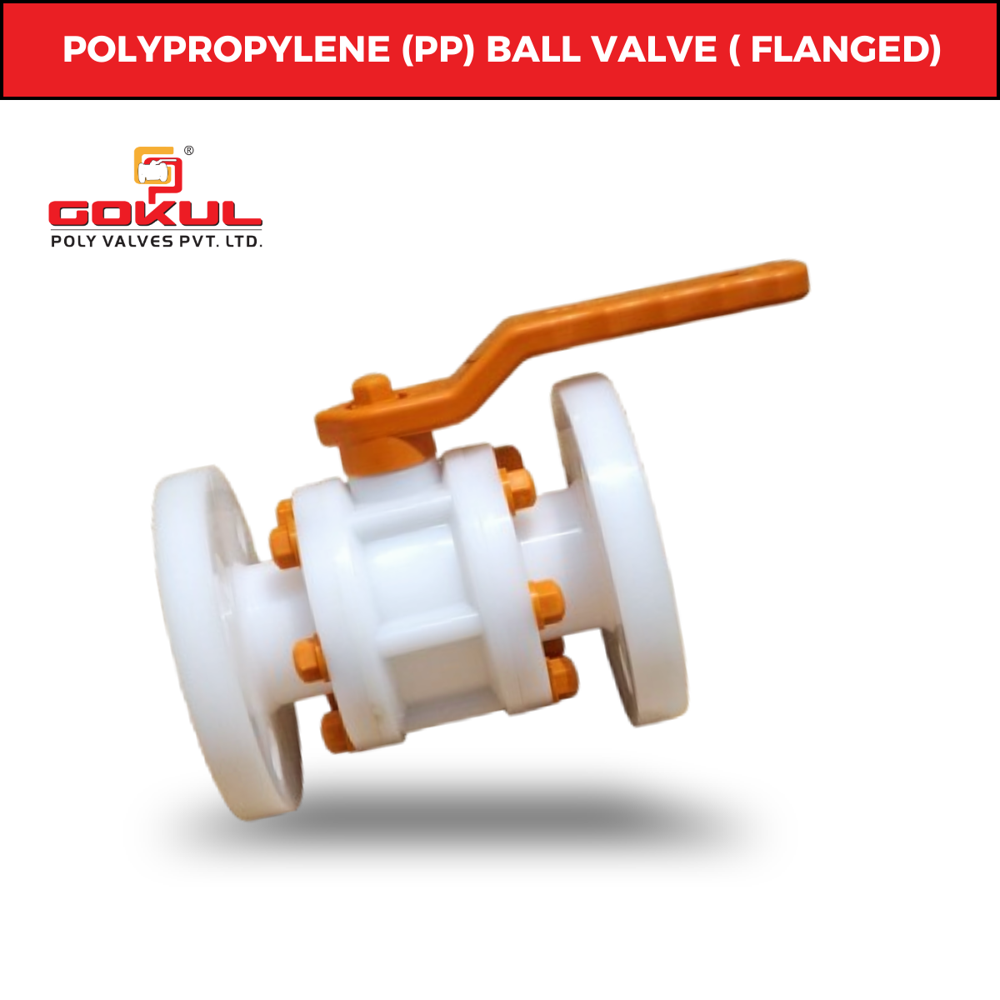

pp ball valve 10"

Price 38720 INR/ Number

Get a Price/Quote

pp ball valve 10" Specification

Structure
Ball

Connection
Flanged

Pressure
Medium Pressure

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Usage
Industrial & Water Application

Material
Plastic

Size
10"-250mm

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve

Port Size
10"-250mm

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

pp ball valve 10" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
50 Per Day

Delivery Time
2 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About pp ball valve 10"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.
