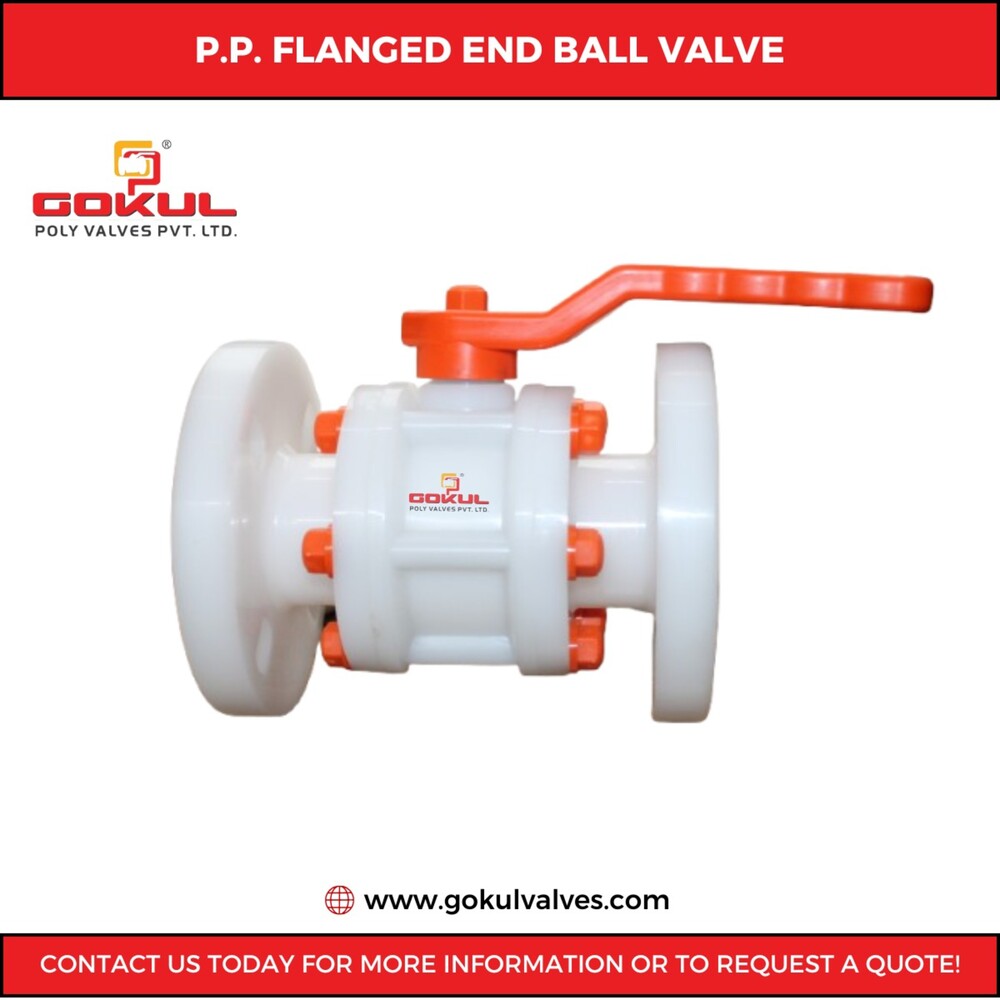

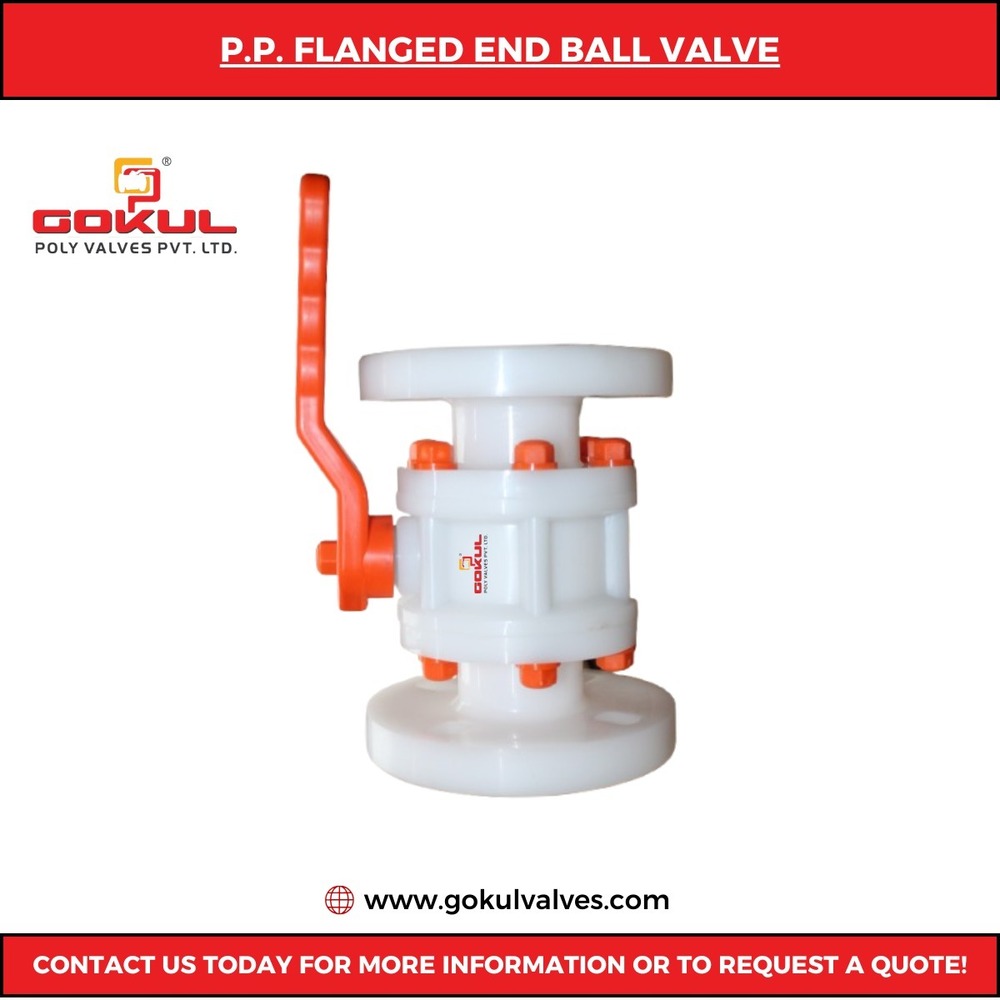

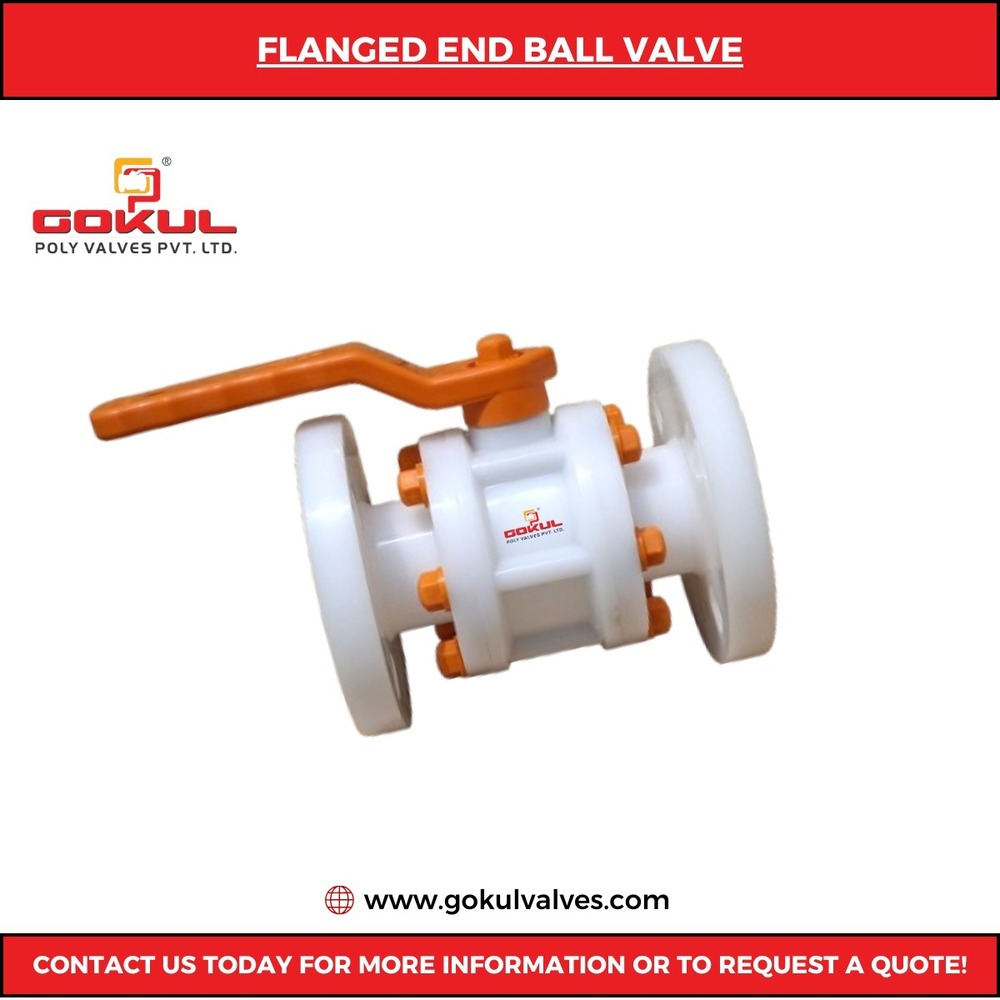

Pp Ball Valve Flange End 1/2"

About Pp Ball Valve Flange End 1/2"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Durable Polypropylene Construction

Crafted from quality polypropylene, this ball valve exhibits strong resistance to corrosion and chemical reactions, ensuring longevity and hassle-free operation in harsh environments. Its robust plastic structure suits both industrial and water applications, effectively managing water flow and sustaining consistent performance over time.


Secure Flanged Connection for Easy Integration

The 150 class flanged ends provide a stable and secure connection, simplifying installation and maintenance within various pipeline systems. This feature reduces the possibility of leaks and enhances the operational reliability of the valve, making it especially suited for critical industrial and water infrastructure.
