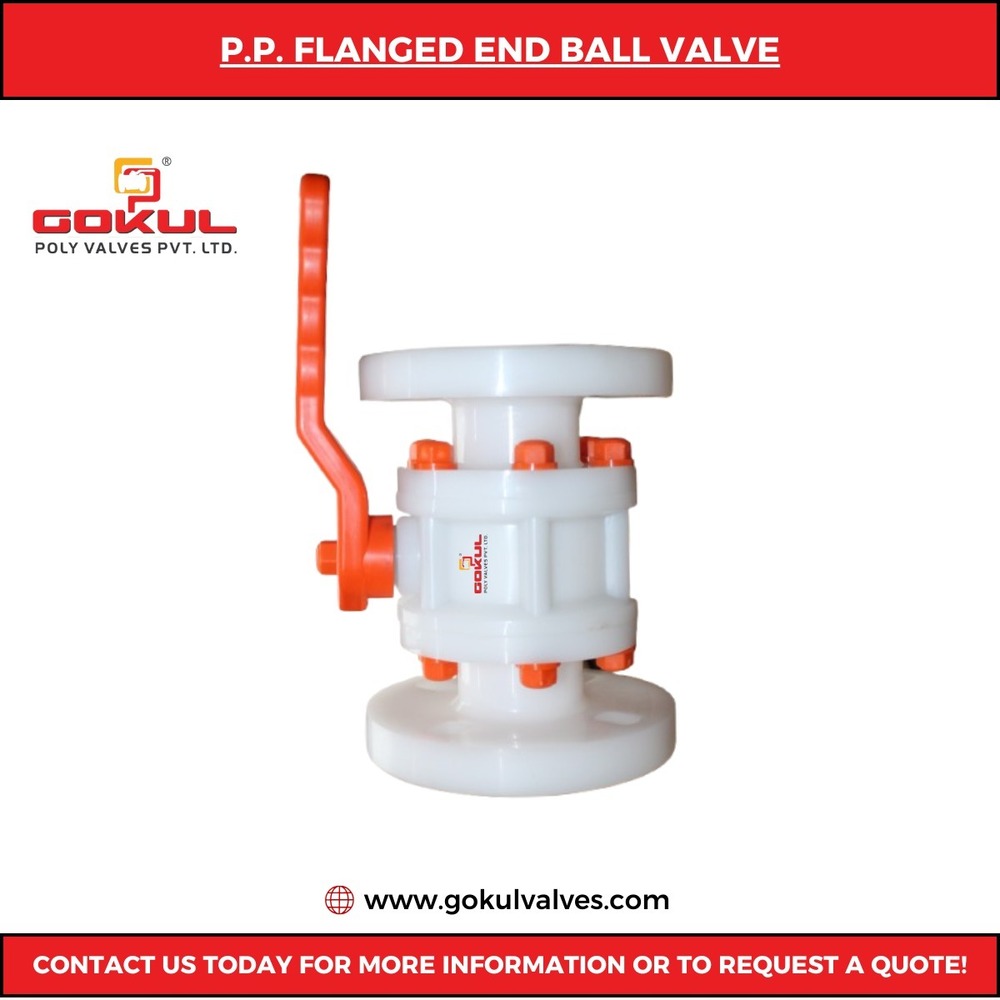

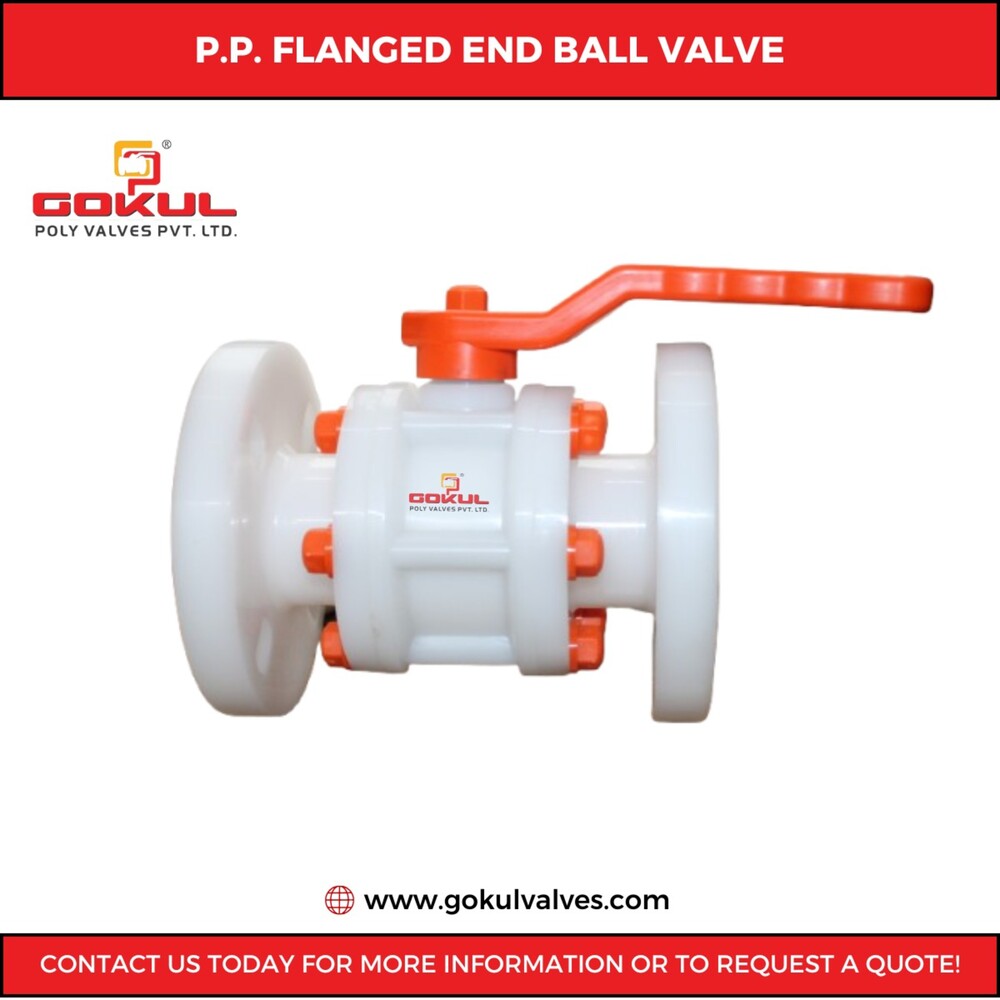

Pp Ball Valve Flange End 2"

Price 840 INR/ Number

Get a Price/Quote

Pp Ball Valve Flange End 2" Specification

Pressure
Medium Pressure

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Structure
Ball

Connection
Flanged

Usage
Industrial & Water Application

Material
Plastic

Size
2"-50MM

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve Flange End

Port Size
2"-50mm

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

Pp Ball Valve Flange End 2" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Pp Ball Valve Flange End 2"

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef-lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF-LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF-LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.

FAQs of Pp Ball Valve Flange End 2":

Q: What is the size of the PP Ball Valve Flange End?

A: The size of the PP Ball Valve Flange End is 2" or 50MM.

Q: What material is the valve made of?

A: The valve is made of polypropylene (PP), which is a type of plastic.

Q: What is the maximum temperature the valve can handle?

A: The valve can handle media temperatures up to 80 degrees Celsius (oC).

Q: What type of connection does the valve have?

A: The valve is equipped with a flanged connection.

Q: What applications can this valve be used for?

A: The valve is suitable for industrial and water applications.

Pp Ball Valve Flange End 2

Pp Ball Valve Flange End 2

Pp Ball Valve Flange End 2

Pp Ball Valve Flange End 2

Pp Ball Valve Flange End 2

Pp Ball Valve Flange End 2

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

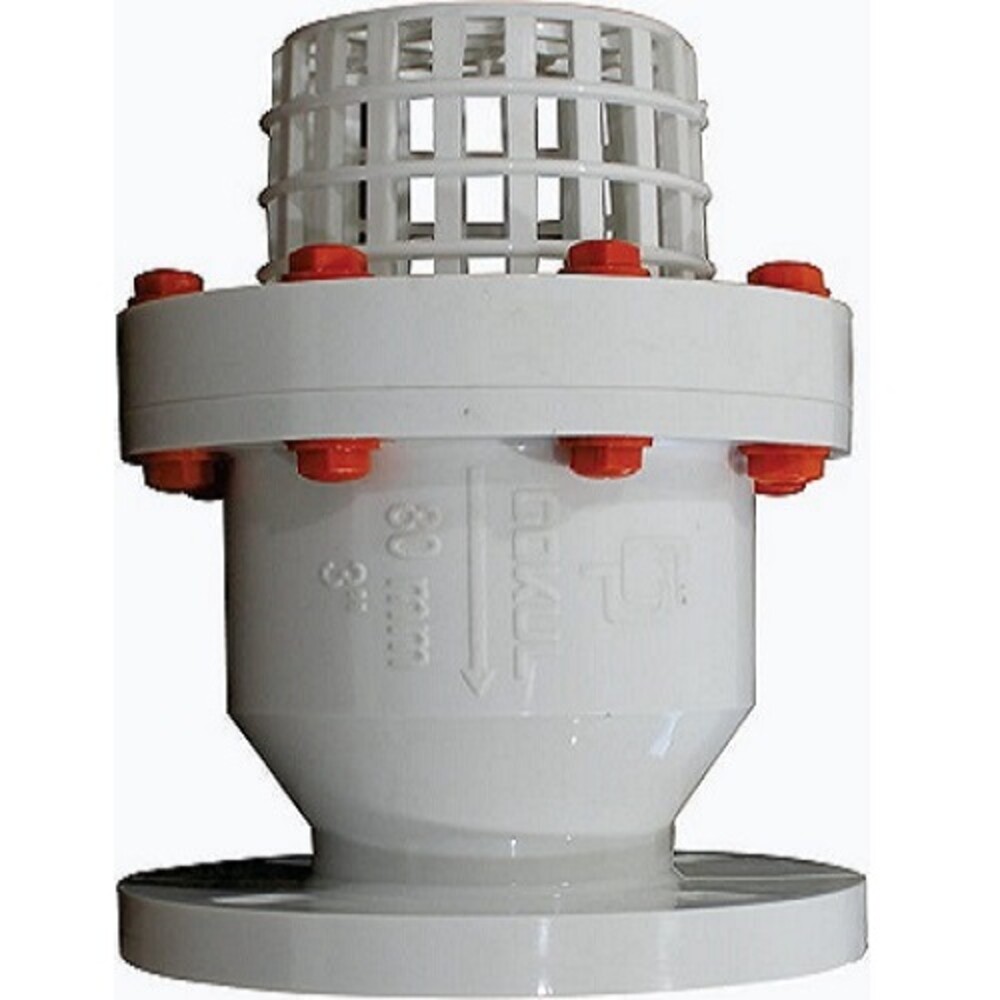

Gokul PP Foot Valve Flanged
