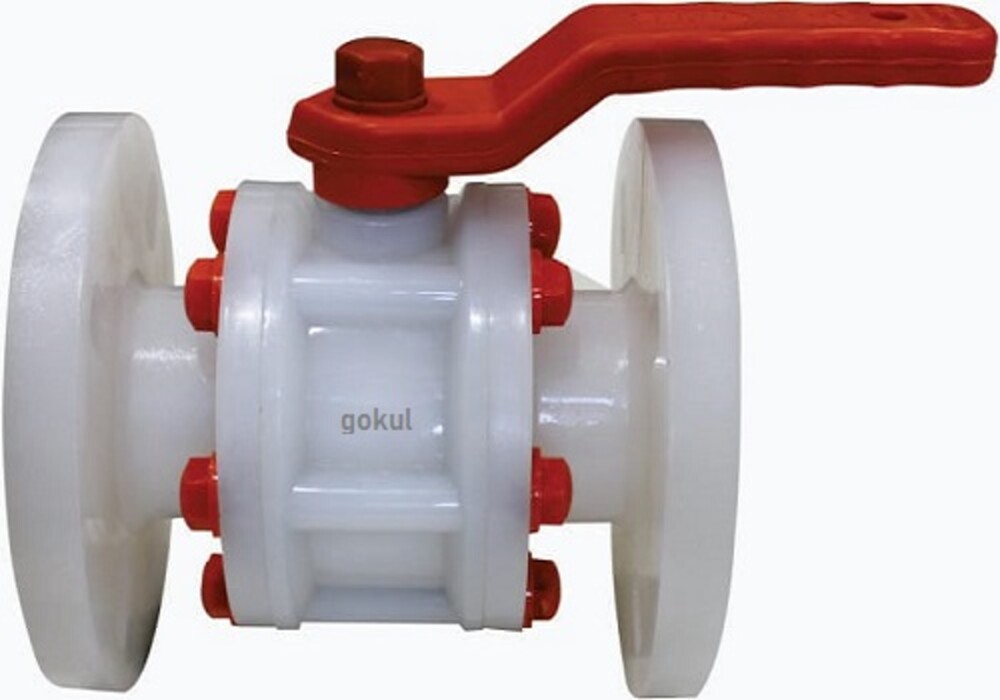

Pp Ball Valve Flange End 3"

About Pp Ball Valve Flange End 3"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore,
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE ()
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE ()
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Premium Polypropylene Construction

Constructed from high-quality polypropylene, this ball valve provides exceptional resistance to corrosion and chemical reactions. Its white finish ensures visual clarity and ease of inspection, making it ideal for rigorous industrial settings and safe for water applications. The durable material increases valve lifespan even under frequent operation and fluctuating temperatures.


Efficient Medium Pressure Control

Engineered for medium pressure environments, the PP Ball Valve performs consistently across a wide range of industrial and water flow scenarios. It can handle media temperatures up to 80C, ensuring stability and preventing leaks. The 150 class flanged ends guarantee a secure, leak-proof connection, suitable for demanding operations in multiple market channels.
