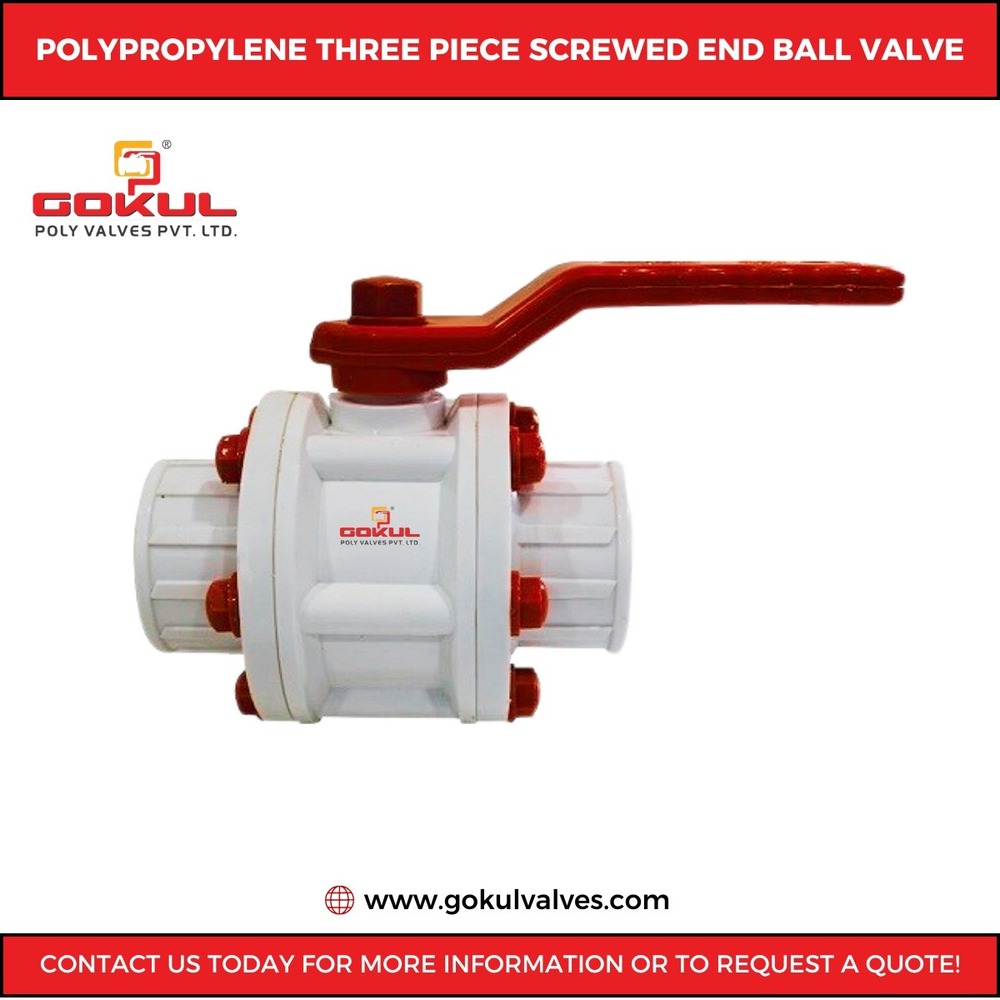

PP Ball Valve Screwed End

About PP Ball Valve Screwed End

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4ï
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Durable Polypropylene Construction

Manufactured from high-grade polypropylene, this ball valve offers excellent chemical resistance and resilience. Its white finish enhances its visual appeal while providing longevity in various environments where exposure to moisture or chemicals is common.


Versatile Application Range

Specifically engineered for both industrial and water system needs, the valve supports a range of temperatures up to 80C. Its medium pressure rating and size flexibility (from 1/2" to 4") make it suitable for numerous operational demands in different sectors.


Easy and Secure Installation

Featuring BSP threaded screw ends, installation is straightforward and efficient. The design guarantees a tight seal, reducing the risk of leakage and making it a reliable choice for professionals in water and industrial piping installations.
