images Send Inquiry
Request To Call Back

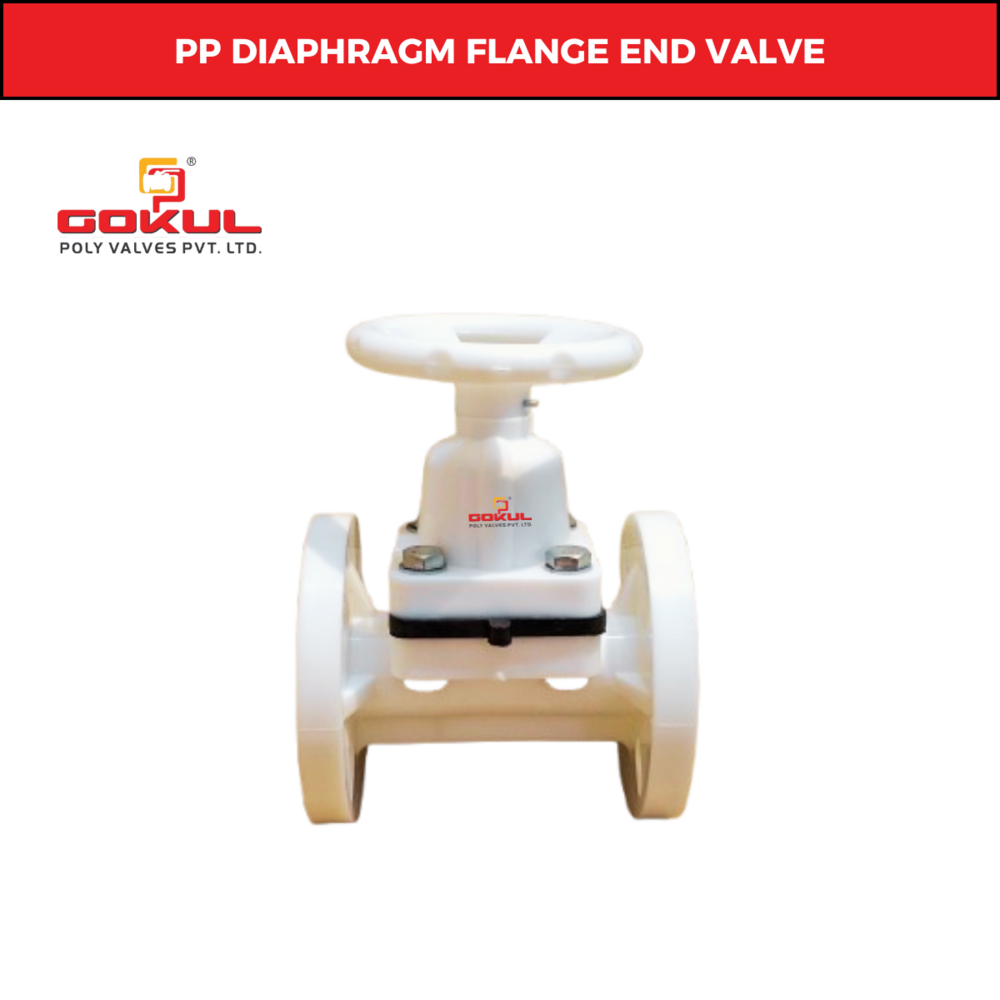

PP Diaphragm Valve Flange End 1.5"

Price 690 INR/ Number

Get a Price/Quote

PP Diaphragm Valve Flange End 1.5" Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1.5"-40mm
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Flange End
  • Port Size
  • 1.5"-40mm
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


PP Diaphragm Valve Flange End 1.5" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About PP Diaphragm Valve Flange End 1.5"

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of PP Diaphragm Valve Flange End 1.5":


Q: What material is used to manufacture the PP Diaphragm Valve Flange End 1.5"?

A: The valve is manufactured using Polypropylene (PP), a type of plastic material.

Q: What is the temperature limit for the media handled by this valve?

A: The valve can handle media with a temperature of up to 80 degrees Celsius.

Q: What type of connection does the PP Diaphragm Valve Flange End 1.5" use?

A: The valve uses a flanged connection, specifically 150 class flange.

Q: What is the port size of this valve?

A: The port size of the valve is 1.5 inches or 40mm.

Q: For what applications is this valve suitable?

A: The valve is suitable for industrial and water applications.

Q: What is the maximum pressure that the valve can handle?

A: The valve is designed for medium-pressure applications.

Q: What color is the PP Diaphragm Valve Flange End 1.5"?

A: The valve is white in color.
