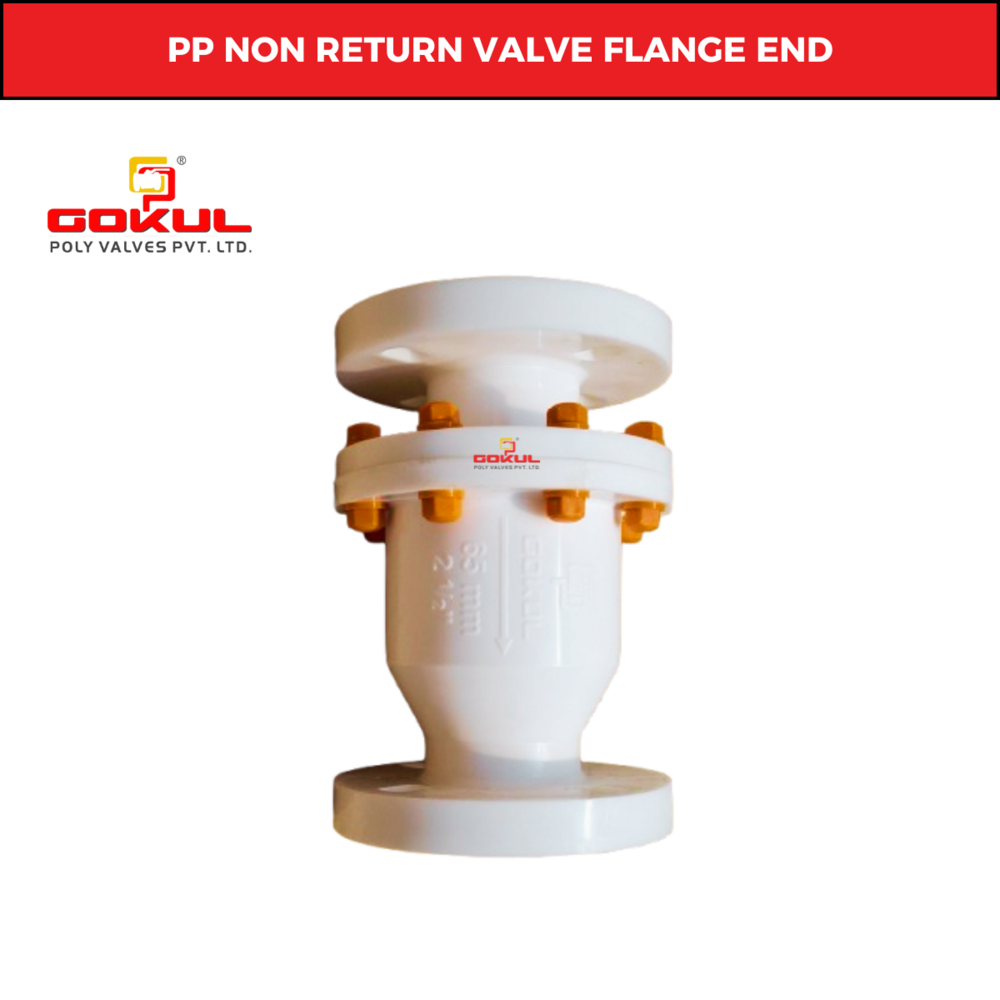

PP Nrv Valve

Price 16000 INR/ Number

Get a Price/Quote

PP Nrv Valve Specification

Pressure
Medium Pressure

Connection
Flanged

Caliber
Gokul Poly Valves Pvt Ltd

Structure
Ball

Channels
Intentional & Domestic Market

Material
Plastic

Usage
Industrial & Water Application

Size
1" To 12"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Flanged

Port Size
1" To 12"

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

PP Nrv Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About PP Nrv Valve

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	Ball type design, soft seated, 2 Piece Design
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	25MM to 315MM	Test pressure	10 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Top Body	Polypropylene	1
2)	Bottom body	Polypropylene	1
3)	Ball	Polypropylene	1
4)	Ball Ring	Polypropylene	1
5)	Seat Ring	Neoprene Rubber	1
6)	Stud, Nut & Washer	SS	Req.

Durable Polypropylene Construction

Manufactured from high-quality polypropylene, the PP NRV Valve offers excellent chemical resistance and long-lasting durability. Its material composition makes it suitable for handling water and various industrial fluids, ensuring minimal wear even under medium pressure. This robust design ensures reliability for extended operational cycles.

Versatile & Wide-Ranging Applications

Designed to cater to both industrial and water sector needs, the valve is available in sizes from 1 to 12. Its adaptable construction fits diverse pipelines and is especially suitable for water management systems and broader industrial use, providing value to both intentional and domestic markets.

FAQs of PP Nrv Valve:

Q: How is the PP NRV Valve installed in a pipeline system?

A: The PP NRV Valve is connected to pipelines using its flanged ends (150 class) which ensure a secure, leak-free joint. Installation should be performed by trained personnel, following standard industrial procedures and ensuring that the valve is aligned properly for optimal flow.

Q: What are the main benefits of using a polypropylene (PP) NRV valve?

A: PP NRV valves offer excellent resistance to corrosion and chemical wear, are lightweight for easier handling, and maintain performance in medium-pressure systems. Their robust design ensures longevity, making them a cost-effective choice for water and industrial applications.

Q: When should I consider using a PP NRV valve in my facility?

A: Consider using a PP NRV valve when your process requires reliable non-return flow control in water distribution or industrial systems, especially where chemical resistance and durability at temperatures up to 80C are essential.

Q: Where can these valves be applied most effectively?

A: These valves are ideal for use in water supply systems, wastewater management, chemical industries, and various industrial process lines that demand non-return (check) valve functionality in moderate temperature and pressure conditions.

Q: What is the process of selecting the right size NRV valve?

A: Select the appropriate size by matching the valves port dimensions (ranging from 1" to 12") with your pipeline size and system flow requirements. Consulting technical data or a specialist ensures the correct fit and optimal performance.

Q: How does the ball structure contribute to the valves functionality?

A: The ball structure in the valve aids smooth, unobstructed flow and ensures reliable shut-off, reducing the risk of reverse flow. This design also minimizes maintenance and supports efficient system operation.

Q: What advantages does Gokul Poly Valves Pvt Ltd provide as an exporter and manufacturer?

A: As a manufacturer, exporter, service provider, and supplier based in India, Gokul Poly Valves Pvt Ltd offers quality assurance, customizable sizing, and experienced support. This ensures clients receive durable solutions tailored to their specific industry and application needs.
