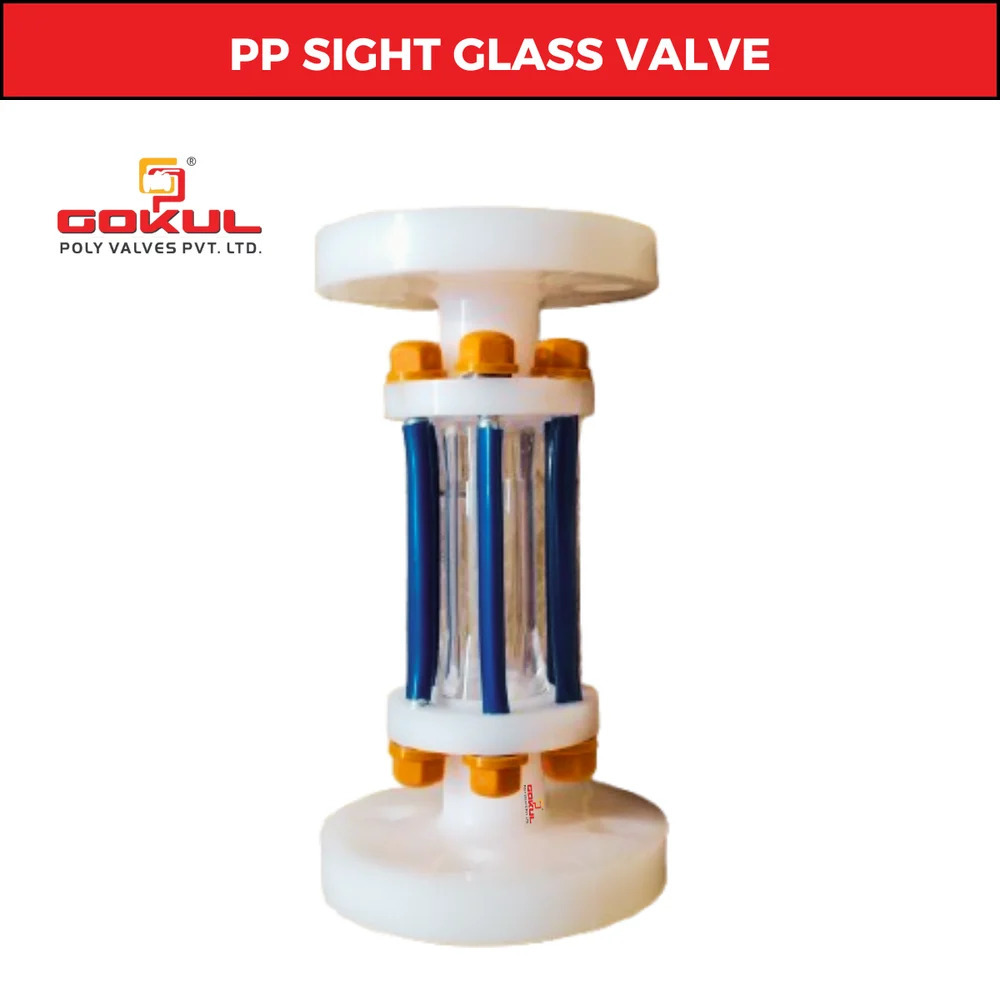

PP Sight Glass

Price 525 INR/ Number

Get a Price/Quote

PP Sight Glass Specification

Structure
Ball

Channels
Intentional & Domestic Market

Connection
Flanged

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Material
Plastic

Usage
Industrial & Water Application

Media
Water

Size
1/2" To 12"

Temperature of Media
80 Celsius (oC)

Product Type
PP Sight Glass Valve / PP Flow Indicator Valve

Port Size
1/2" To 12"

Color
White

Flange
150

Finish
Polypropylene (PP)

Application
industrial and water application

PP Sight Glass Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test

About PP Sight Glass

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, full bore, Tef lon seated, borosil glass Design 3 piece design Test pressure 8kg Max working temp 60 c (consistently) Size Range -15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Side Piece/ Connector Polypropylene 2 2) Glss Tube Glass ( BOROSIL) 1 3) Crisent Ring PTFE (Tef lon) 2 4) Stud M.S./ S.S. REQ 5) Nuts wisher M.S./ S.S. REQ 6) Nut Cap Polypropylene REQ 7) Stud Tube PP / PVC Coated REQ

FAQs of PP Sight Glass:

Q: What is the material used in the PP Sight Glass?

A: The PP Sight Glass is made of high-quality plastic, specifically polypropylene (PP).

Q: What is the temperature limit for the media in the PP Sight Glass?

A: The PP Sight Glass can handle media temperatures up to 80C.

Q: What size range is available for the PP Sight Glass?

A: The PP Sight Glass is available in sizes ranging from 1/2" to 12".

Q: What type of connection does the PP Sight Glass have?

A: The PP Sight Glass features flanged connections.

Q: In what applications can the PP Sight Glass be used?

A: The PP Sight Glass is suitable for both industrial and water applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

PP Foot Valve Screw End

PP Foot Valve Screw End

Price 300 INR / Number

Minimum Order Quantity : 10

Color : White

Temperature of Media : 80 Celsius (oC)

Caliber : Gokul Poly Valves Pvt Ltd

Usage : Industrial & Water Application

Get a Price/Quote

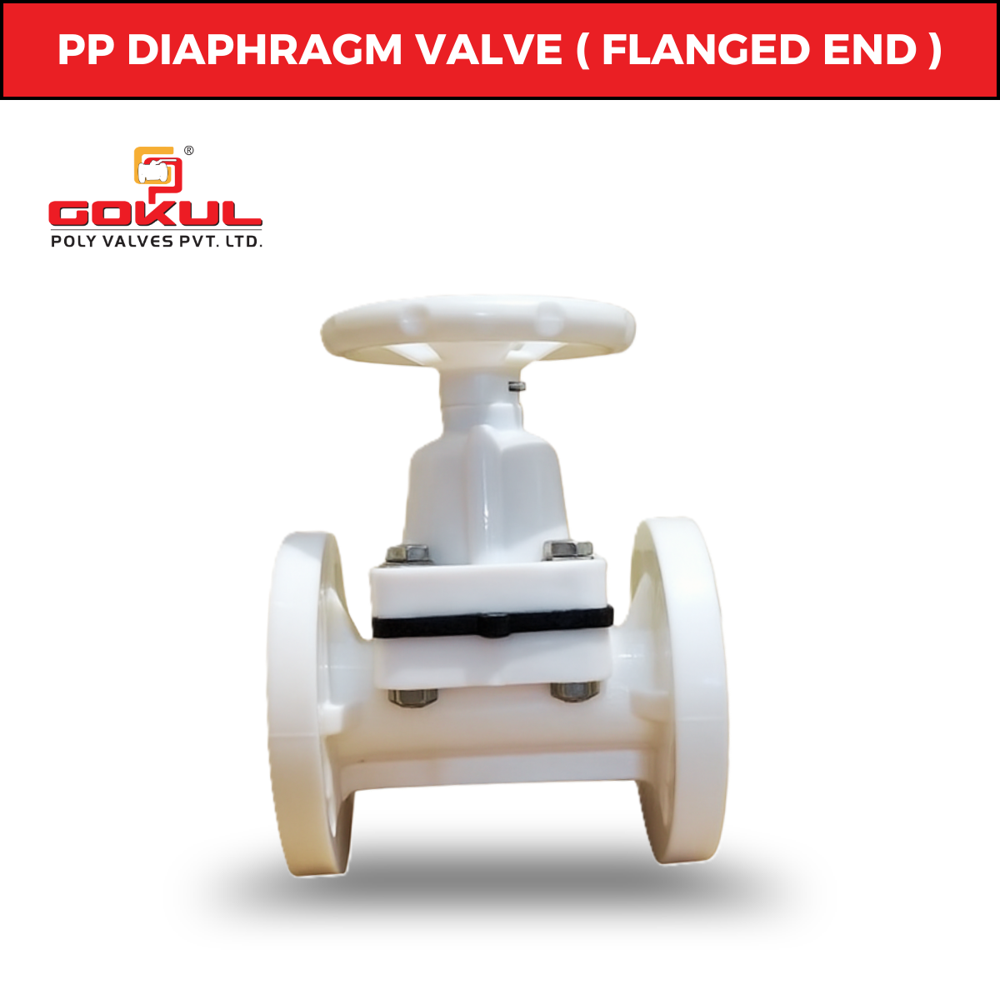

Gokul PP Diaphragm Valve Flanged 1
