Threaded End Polypropylene Diaphragm Valve

Price 410 INR/ Number

Get a Price/Quote

Threaded End Polypropylene Diaphragm Valve Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Pressure
  • Medium Pressure
  • Connection
  • Screw End (BSP Threaded)
  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1/2" To 4"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Screw End
  • Port Size
  • 1/2" To 4"
  • Color
  • White
  • Flange
  • BSP Threaded
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Threaded End Polypropylene Diaphragm Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Threaded End Polypropylene Diaphragm Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Threaded End Polypropylene Diaphragm Valve:


Q: What is the pressure rating of the Threaded End Polypropylene Diaphragm Valve?

A: The Threaded End Polypropylene Diaphragm Valve is designed for medium-pressure applications.

Q: What material is used to manufacture the Threaded End Polypropylene Diaphragm Valve?

A: The valve is made of polypropylene (PP) plastic.

Q: What is the maximum temperature of media the valve can handle?

A: The valve can handle media with temperatures up to 80C.

Q: What are the available size options for the Threaded End Polypropylene Diaphragm Valve?

A: The valve is available in port sizes ranging from 1/2" to 4".

Q: What type of connection does the valve feature?

A: The valve has a screw end connection with BSP threading.

Q: What applications is the Threaded End Polypropylene Diaphragm Valve suitable for?

A: The valve is suitable for both industrial and water applications.

Q: Which markets does the valve cater to?

A: The valve is designed for intentional and domestic markets.

Threaded End Polypropylene Diaphragm Valve
Threaded End Polypropylene Diaphragm Valve
Threaded End Polypropylene Diaphragm Valve
Threaded End Polypropylene Diaphragm Valve
Threaded End Polypropylene Diaphragm Valve
Threaded End Polypropylene Diaphragm Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul PP Y Type Strainers

Gokul PP Y Type Strainers

Price 1780 INR / Number

Minimum Order Quantity : 10

Application : industrial and water application

Product Type : PP Y Type Strainer Flange End

Port Size : 1/2" to 6"

Usage : Industrial & Water Application

Get a Price/Quote
Gokul Polypropylene Y Strainer Flange End

Gokul Polypropylene Y Strainer Flange End

Price 16950 INR / Number

Minimum Order Quantity : 10

Application : industrial and water application

Product Type : PP Y Type Strainer Flange End

Port Size : 1/2" to 6"

Usage : Industrial & Water Application

Get a Price/Quote

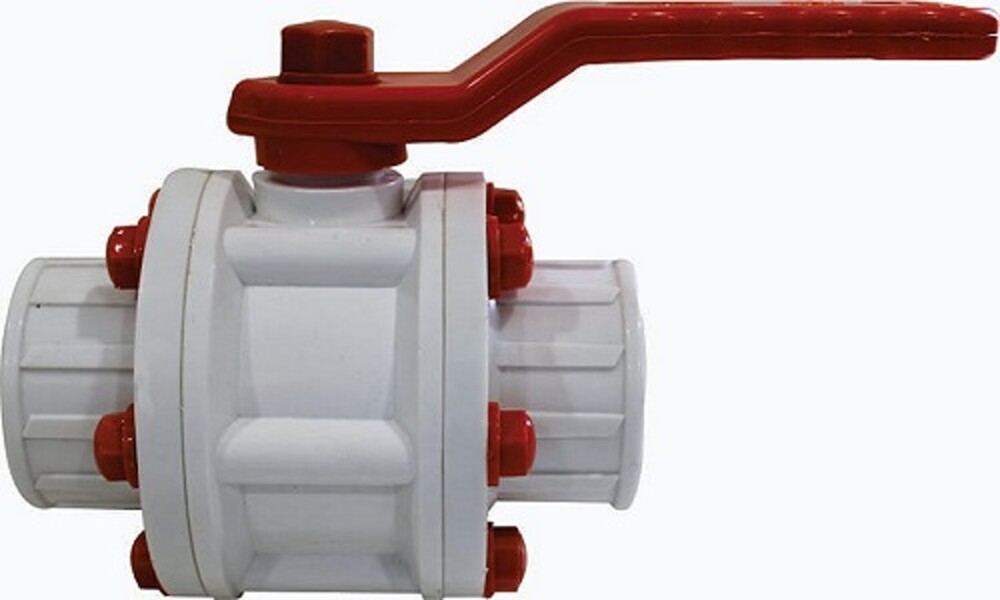

Gokul Polypropylene Three Piece Screwed End Ball Valve
