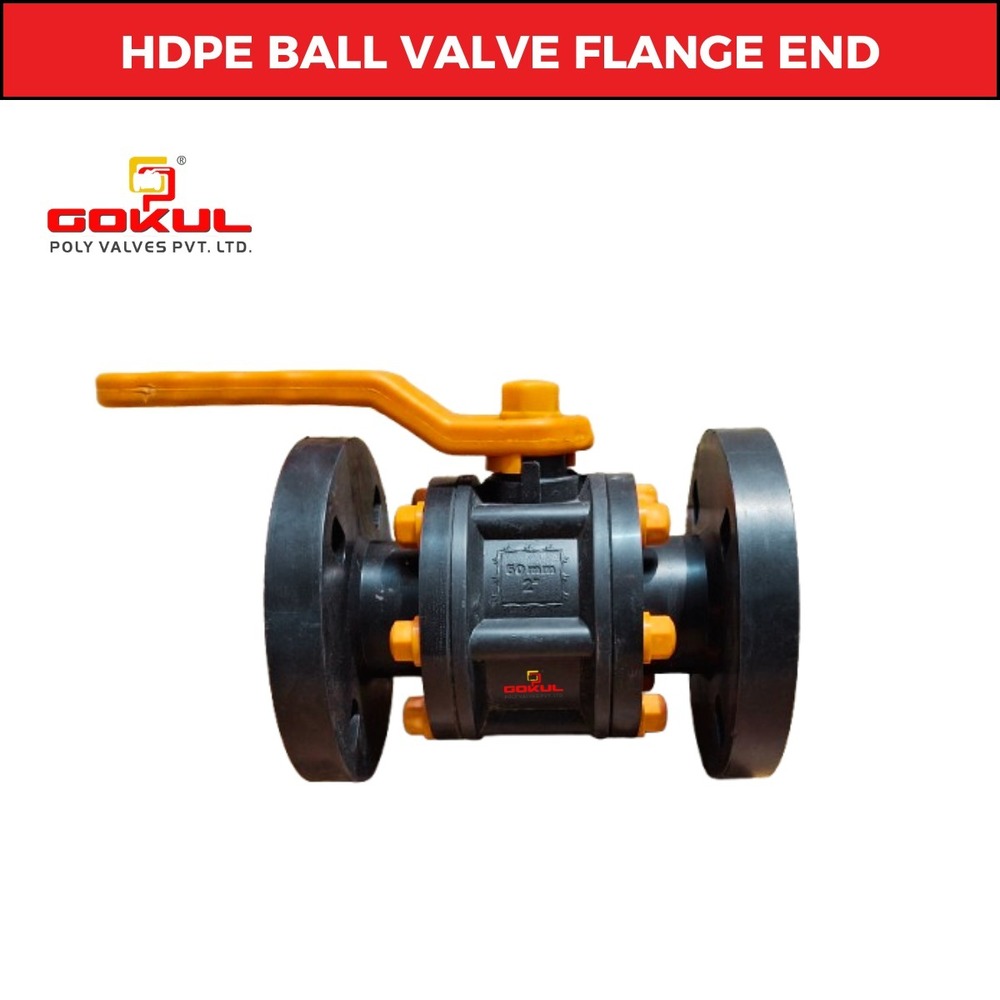

3pc. Flanged End HDPE Ball Valve

Price 18150 INR/ Number

Get a Price/Quote

About 3pc. Flanged End HDPE Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene) & HDPE (High density polyethylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	HDPE
2)	Body	1	HDPE
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

3pc. Flanged End HDPE Ball Valve

3pc. Flanged End HDPE Ball Valve

3pc. Flanged End HDPE Ball Valve

3pc. Flanged End HDPE Ball Valve

3pc. Flanged End HDPE Ball Valve

3pc. Flanged End HDPE Ball Valve

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

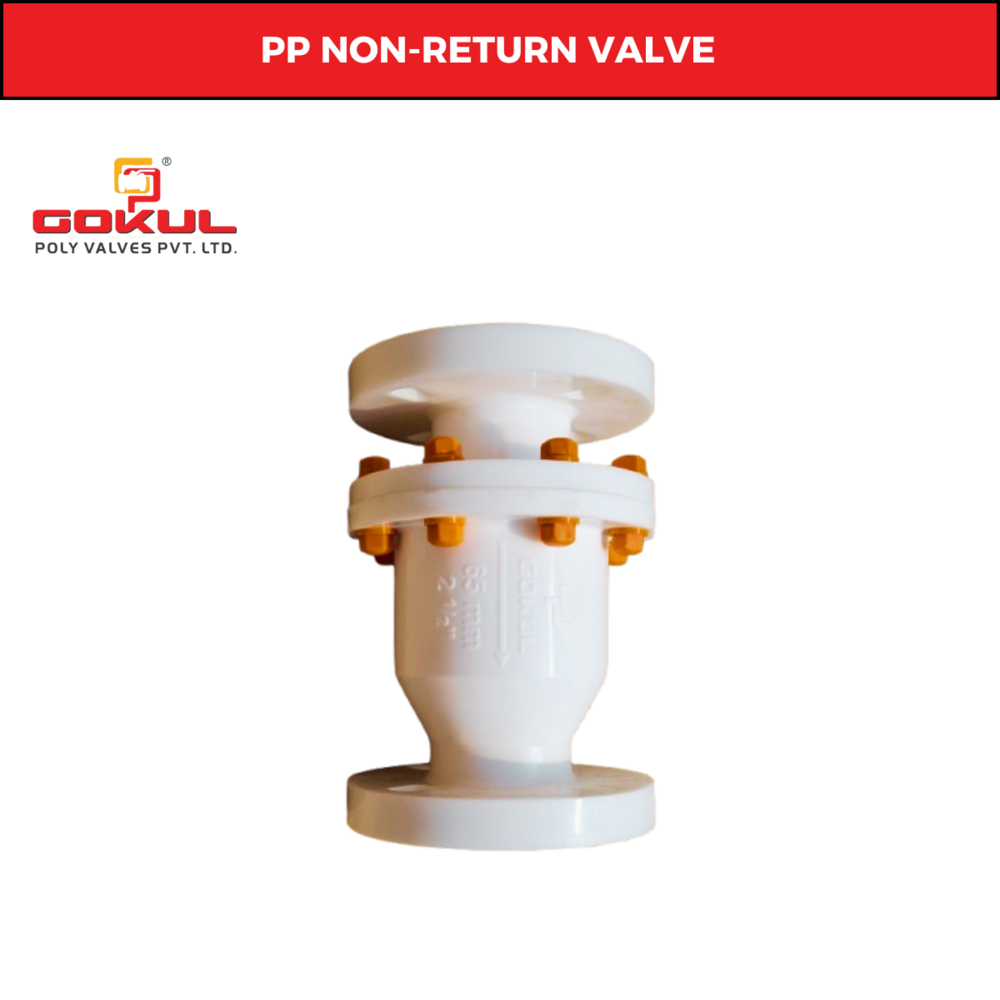

Gokul PP Non Return Valve Flange End
