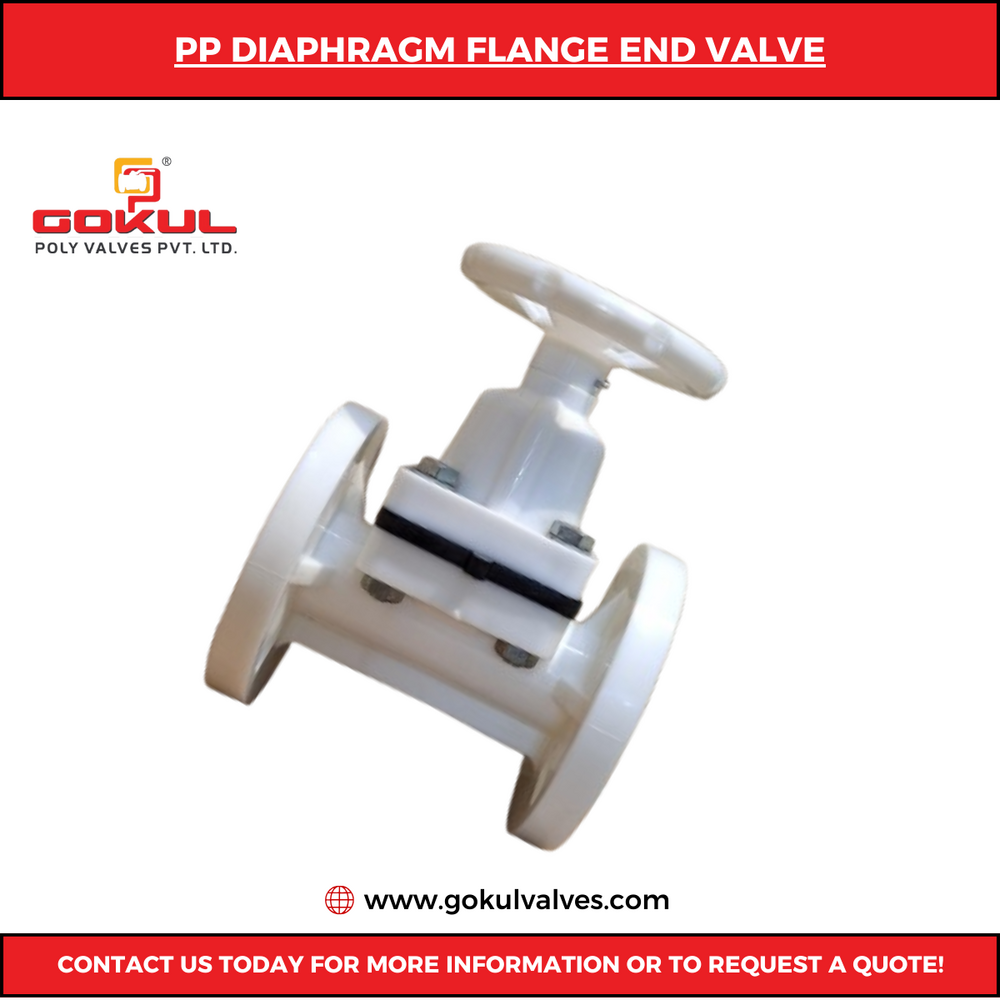

Flange End Polypropylene Diaphragm Valve 3/4"

Price 410 INR/ Number

Get a Price/Quote

Flange End Polypropylene Diaphragm Valve 3/4" Specification

  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 3/4"-20MM
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Flange End
  • Port Size
  • 3
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Flange End Polypropylene Diaphragm Valve 3/4" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material test Certificate


About Flange End Polypropylene Diaphragm Valve 3/4"

Technical Specification

Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 15MM to 150MM Test pressure 6 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION MATERIAL QTY.
1) Body Polypropylene 1
2) Bonnet Polypropylene 1
3) Hand wheel Polypropylene 1
4) Diaphragm Neoprene Rubber 1
5) Compressor PP 1
6) Stem / Spindel M.S. /Brass 1
7) Nut M.S./ S.S. 1
8) Pin M.S./ S.S. 1
9) Bolt, Nut, Washer M.S./ S.S. REQ
10) Cap Polypropylene 1


Reliable Flow Control for Industrial Needs

With its robust polypropylene construction and diaphragm design, this valve effectively manages water and industrial media at medium pressures and temperatures up to 80C. Its flanged end and 3/4" size ensure easy integration into standard pipelines, suitable for a range of industrial and water distribution systems.


Versatile Application Across Markets

Designed for both intentional and domestic markets, this diaphragm valve caters to industrial facilities and water management projects. Its adaptable structure and certified quality make it an optimal choice for exporters, manufacturers, service providers, and suppliers alike.

FAQs of Flange End Polypropylene Diaphragm Valve 3/4":


Q: How is the Flange End Polypropylene Diaphragm Valve 3/4" installed in a pipeline system?

A: The valve is designed with a flanged connection, allowing straightforward installation into standard pipeline systems using compatible gaskets and bolts, ensuring a secure and leak-resistant fit.

Q: What media and pressure conditions is this valve suitable for?

A: This valve is engineered for water and similar industrial media, operating efficiently under medium pressure and temperatures up to 80C, thanks to its polypropylene construction.

Q: When is it recommended to use a polypropylene diaphragm valve over metal types?

A: Polypropylene diaphragm valves are preferred when corrosion resistance, lightweight material, and cost-effectiveness are needed, especially in systems handling aggressive media or requiring medium pressure control.

Q: Where can the Flange End Polypropylene Diaphragm Valve 3/4" be applied?

A: It is ideal for industrial fluid management, water treatment plants, and domestic water distribution systems, both for new installations and pipeline upgrades.

Q: What is the manufacturing process for this polypropylene diaphragm valve?

A: The valve is produced using high-precision molding techniques for polypropylene, followed by finishing and rigorous quality testing at Gokul Poly Valves Pvt Ltd to ensure reliable performance and safety standards.

Q: How does this valve benefit industrial and water applications?

A: Its durable construction, reliable flow control, and ease of installation reduce maintenance costs and downtime, promoting efficient operation across diverse water and industrial systems.

Q: What usage guidelines should be followed for optimal valve performance?

A: Regular inspection and maintenance are recommended, ensuring the valve is used within specified temperature and pressure limits for maximum longevity and functionality.

Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Flange End Polypropylene Diaphragm Valve 3/4
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul pp basket type strainer flanged

Gokul pp basket type strainer flanged

Price 7360 INR / Number

Minimum Order Quantity : 10

Product Type : PP Basket Type Strainer Flange End

Temperature of Media : 80 Celsius (oC)

Application : industrial and water application

Size : 1/2" to 6"

Get a Price/Quote

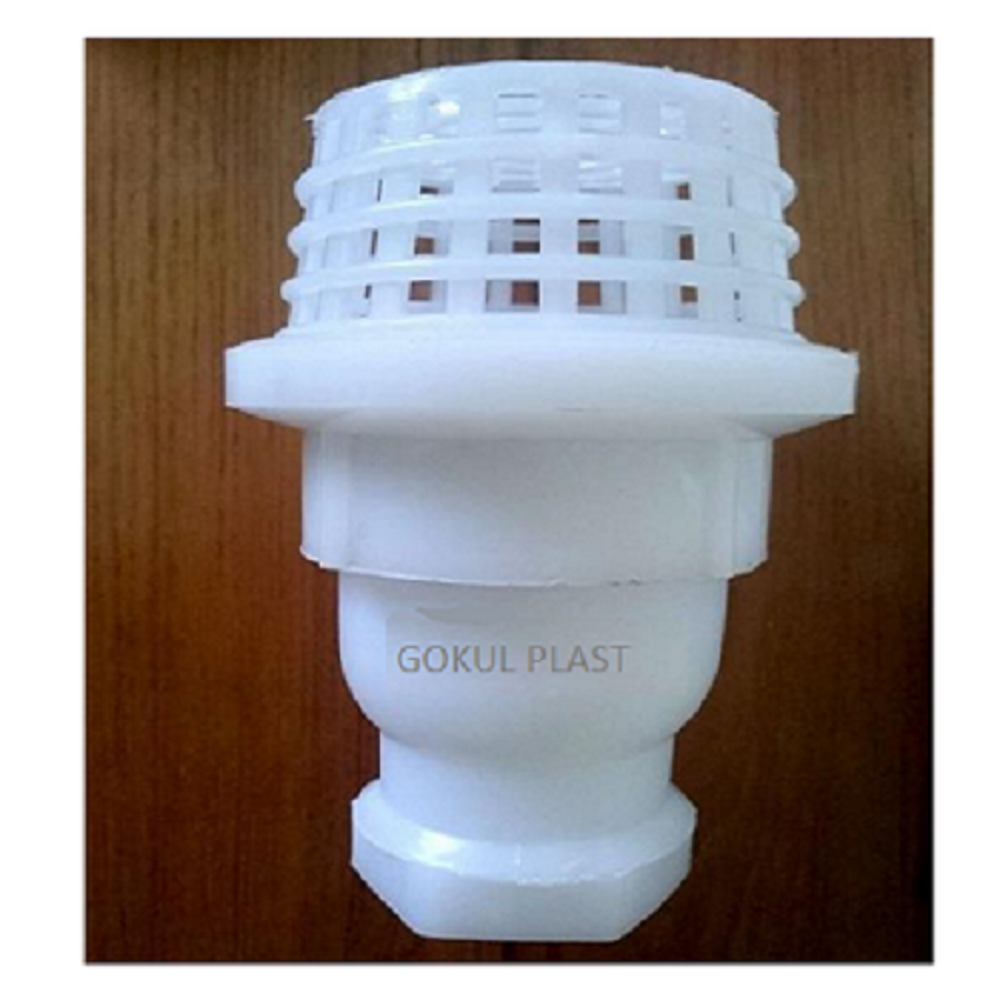

Gokul Polypropylene Foot Valve Flange Type

Gokul Polypropylene Foot Valve Flange Type

Price 16000 INR / Number

Minimum Order Quantity : 10

Product Type : PP Foot Valve Flange End

Temperature of Media : 80 Celsius (oC)

Application : industrial and water application

Size : 1" To 12"

Get a Price/Quote

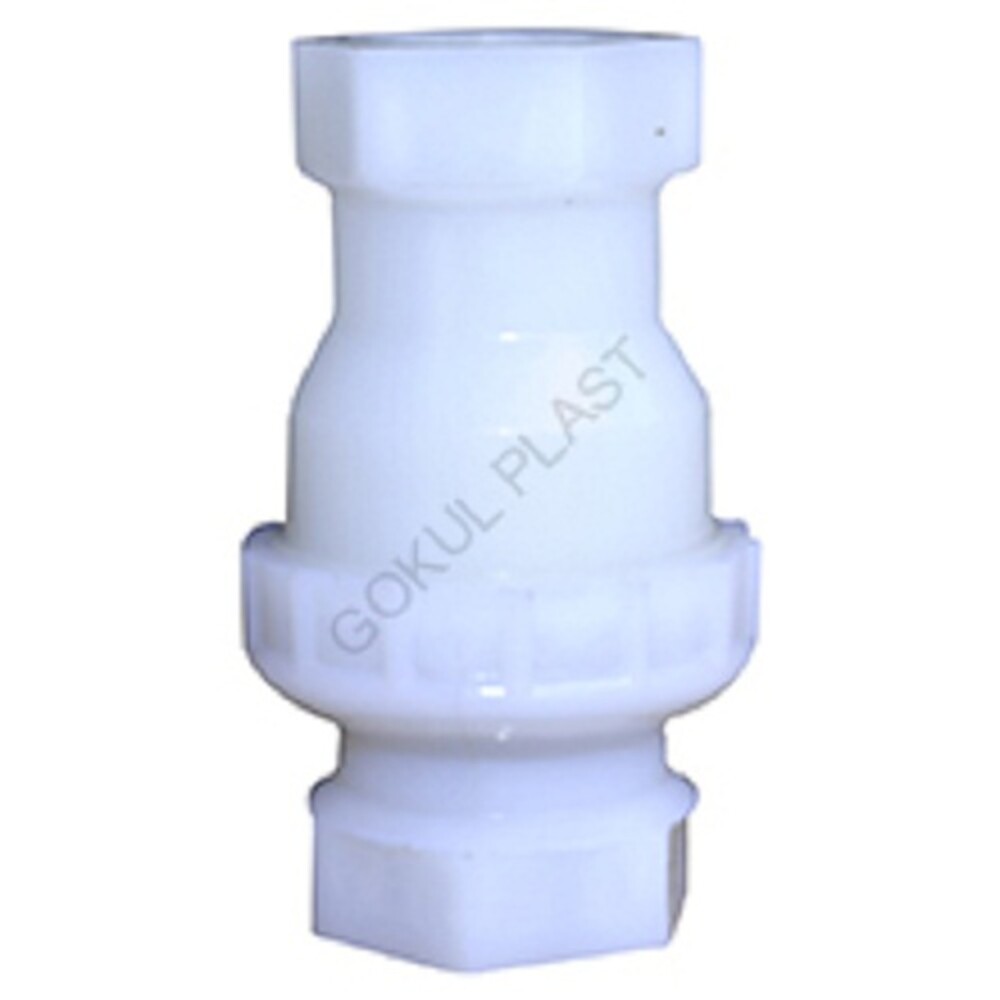

Gokul Polypropylene Nrv Flanged End
