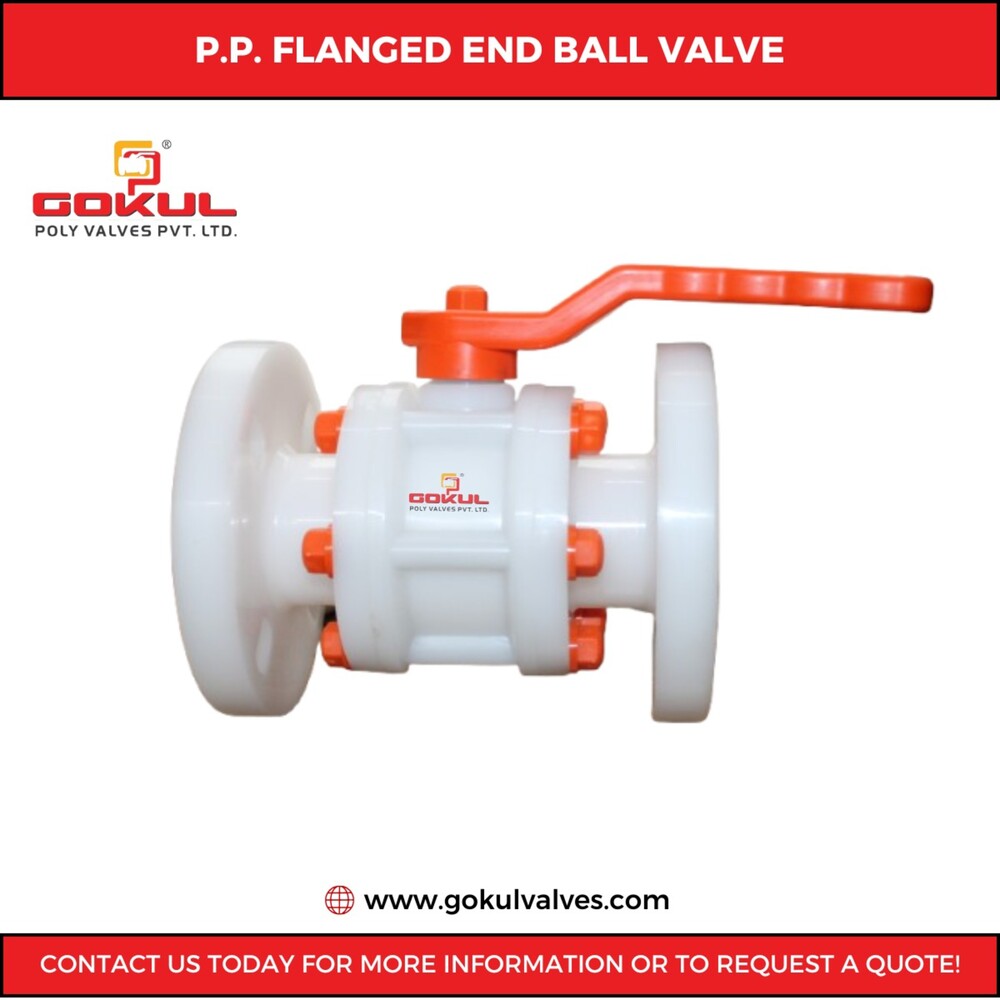

Gokul Polypropylene 3 Piece Flange End Ball Valve

Price 38720 INR/ Number

Get a Price/Quote

Gokul Polypropylene 3 Piece Flange End Ball Valve Specification

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Connection
Flanged

Structure
Ball

Pressure
Medium Pressure

Material
Plastic

Usage
Industrial & Water Application

Size
1/2" To 12"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve Flange End

Port Size
1/2" To 12"

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul Polypropylene 3 Piece Flange End Ball Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul Polypropylene 3 Piece Flange End Ball Valve

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.
