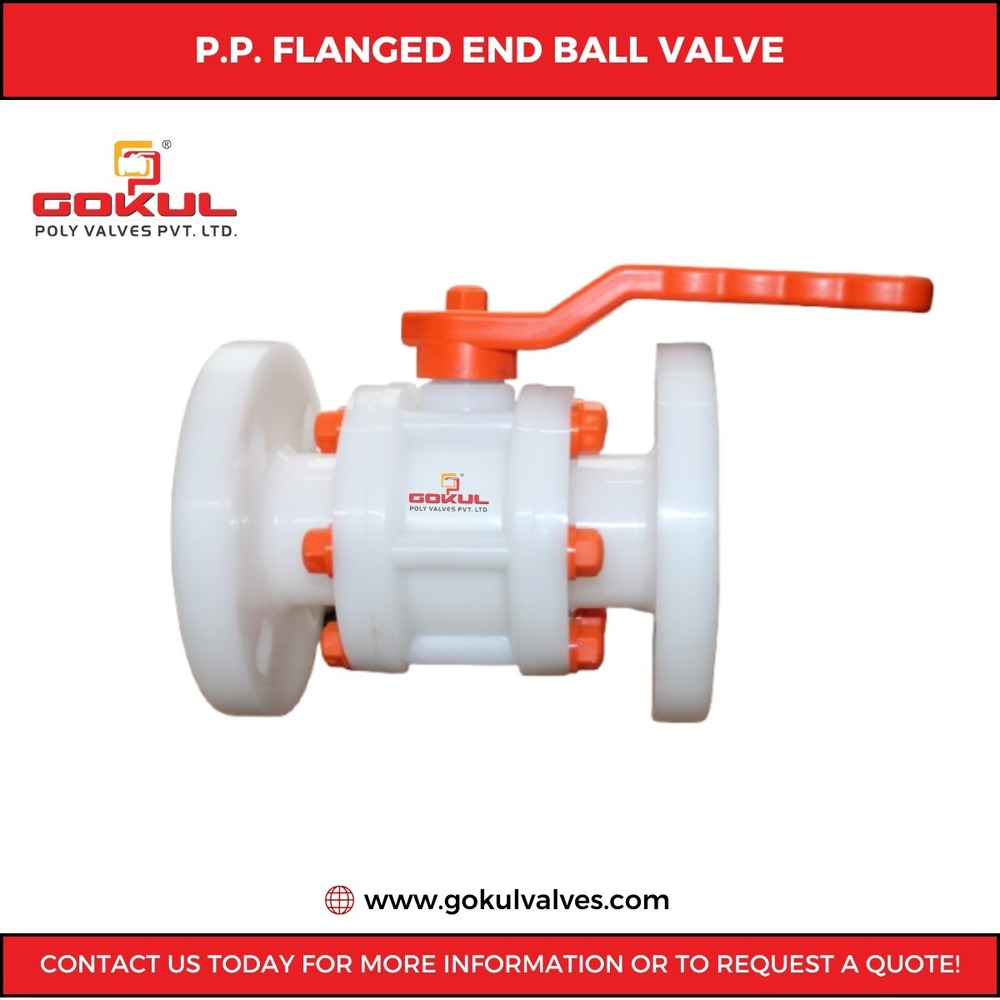

Gokul PP Ball valve Flange End 3"

About Gokul PP Ball valve Flange End 3"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Robust Performance for Water and Industrial Needs

Designed to withstand demanding environments, the Gokul PP Ball Valve delivers consistent operation in both industrial settings and water management systems. Its polypropylene construction ensures longevity, while the ball structure enables smooth and precise control over fluid flow. Whether installed in domestic networks or industrial pipelines, reliability and effectiveness are prioritized.


Easy Installation With Flange-End Design

Featuring a 150 class flanged connection, the 3 Gokul PP Ball Valve simplifies installation and provides a secure, leak-resistant fit. This design is compatible with typical 3 to 80mm pipeline specifications, making it ideal for a wide range of industrial and water applications. Maintenance and replacement are straightforward, reducing downtime and operational delays.
