Gokul PP Threaded Washer Foot valves Gokul PP Threaded Washer Foot valves Gokul PP Threaded Washer Foot valves Gokul PP Threaded Washer Foot valves Gokul PP Threaded Washer Foot valves Gokul PP Threaded Washer Foot valves

Gokul PP Threaded Washer Foot valves

1280 INR/Number
Get a Price/Quote

Product Details:

  • Connection Screw End (BSP Threaded)
  • Pressure Medium Pressure
  • Channels Intentional & Domestic Market
  • Structure Ball
  • Usage Industrial & Water Application
  • Caliber Gokul Poly Valves Pvt Ltd
  • Size 1" To 4"
  • Click to view more
Request To Call Back Send Inquiry
X

Gokul PP Threaded Washer Foot valves Price And Quantity

  • 1280 INR/Number
  • 10 Number

Gokul PP Threaded Washer Foot valves Product Specifications

  • 1" To 4"
  • PP Foot Valve Screw End
  • Polypropylene (PP)
  • White
  • 1" To 4"
  • industrial and water application
  • Plastic
  • BSP Threaded
  • Industrial & Water Application
  • Ball
  • Intentional & Domestic Market
  • Gokul Poly Valves Pvt Ltd
  • Water
  • 80 Celsius (oC)
  • Screw End (BSP Threaded)
  • Medium Pressure

Gokul PP Threaded Washer Foot valves Trade Information

  • Ahmedabad
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul PP Threaded Washer Foot valves:


Q: What is the material used in Gokul PP Threaded Washer Foot valves?

A: The material used is Plastic with a Polypropylene (PP) finish.

Q: What is the temperature limit for the media handled by these foot valves?

A: The temperature of media is up to 80 Celsius (oC).

Q: What is the connection type used in Gokul PP Threaded Washer Foot valves?

A: The connection type is Screw End with BSP Threaded flanges.

Q: What is the size range available for these foot valves?

A: The size ranges from 1" to 4".

Q: What applications are Gokul PP Threaded Washer Foot valves best suited for?

A: They are best suited for industrial and water applications.

Q: What type of market are these foot valves available in?

A: They are available in both international and domestic markets.

Q: What is the pressure rating of Gokul PP Threaded Washer Foot valves?

A: They support medium pressure applications.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Ball Products' category

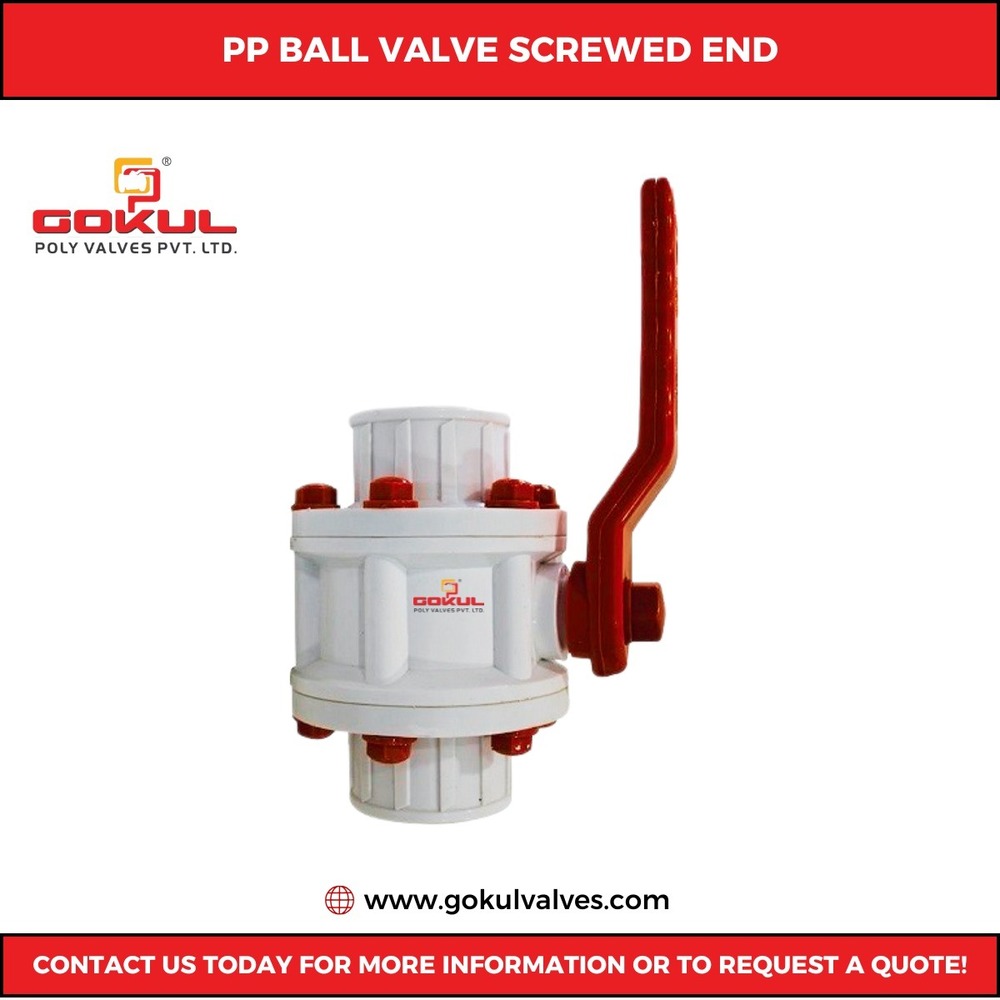

Gokul PP Screwed End Ball Valve
