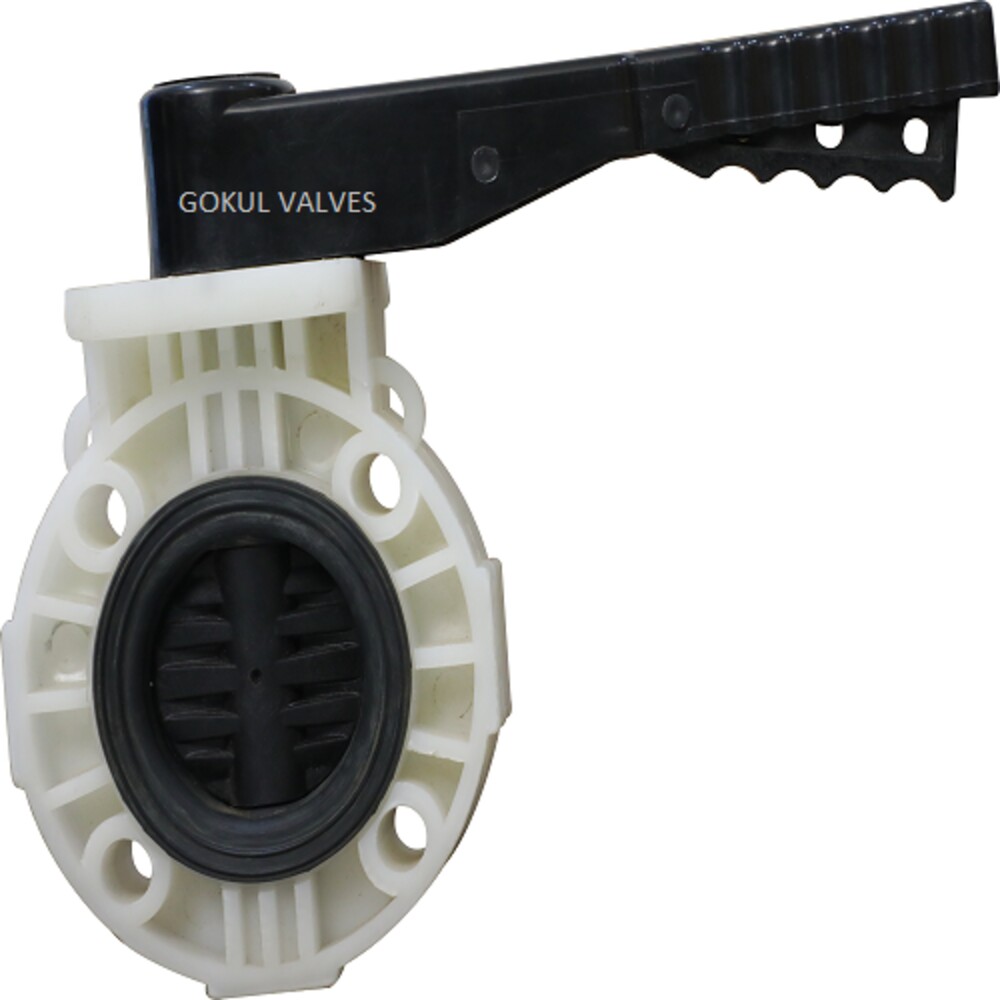

PP Butterfly Valve Gear Box Operated

About PP Butterfly Valve Gear Box Operated

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	One piece body
Design	Waffer dise design	Test pressure	10kg upto 4ïï 6kg above 4ï
Max working temp	70 c (consistently)	Size Range	2ï-50MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Disk	Polypropylene	1
3)	Stem "O" Ring.	Neoprene Rubber	2
4)	Stem	S.S.	1
5)	Hinge pin	S.S.	1
6)	Cap	S.S.	1
7)	Hundle	Polypropylene	1
8)	Spring	S.S.	1
9)	Hundle pin	S.S.	1
10)	Positioner lever	S.S.	1
11)	Handle cap	Polypropylene	1
12)	Positioner plater	S.S.	1

Superior Polypropylene Construction

Manufactured using premium-grade polypropylene, these valves ensure exceptional resistance to chemicals and corrosion. This robust construction, combined with precision engineering, guarantees long-term durability even under demanding industrial or water treatment conditions.


Versatile Operation Methods

The valve can be operated via hand lever or gear box, making it adaptable for various applications. Users can select a suitable operation type for specific needs, ensuring efficient and smooth flow control whether for industrial or domestic purposes.


Designed for Medium Pressure Applications

Suitable for systems requiring medium pressure, the PP butterfly valve maintains consistent performance and leak-proof operation, even at temperatures reaching up to 80 degrees Celsius, which makes it ideal for both water treatment and other liquid handling processes.
