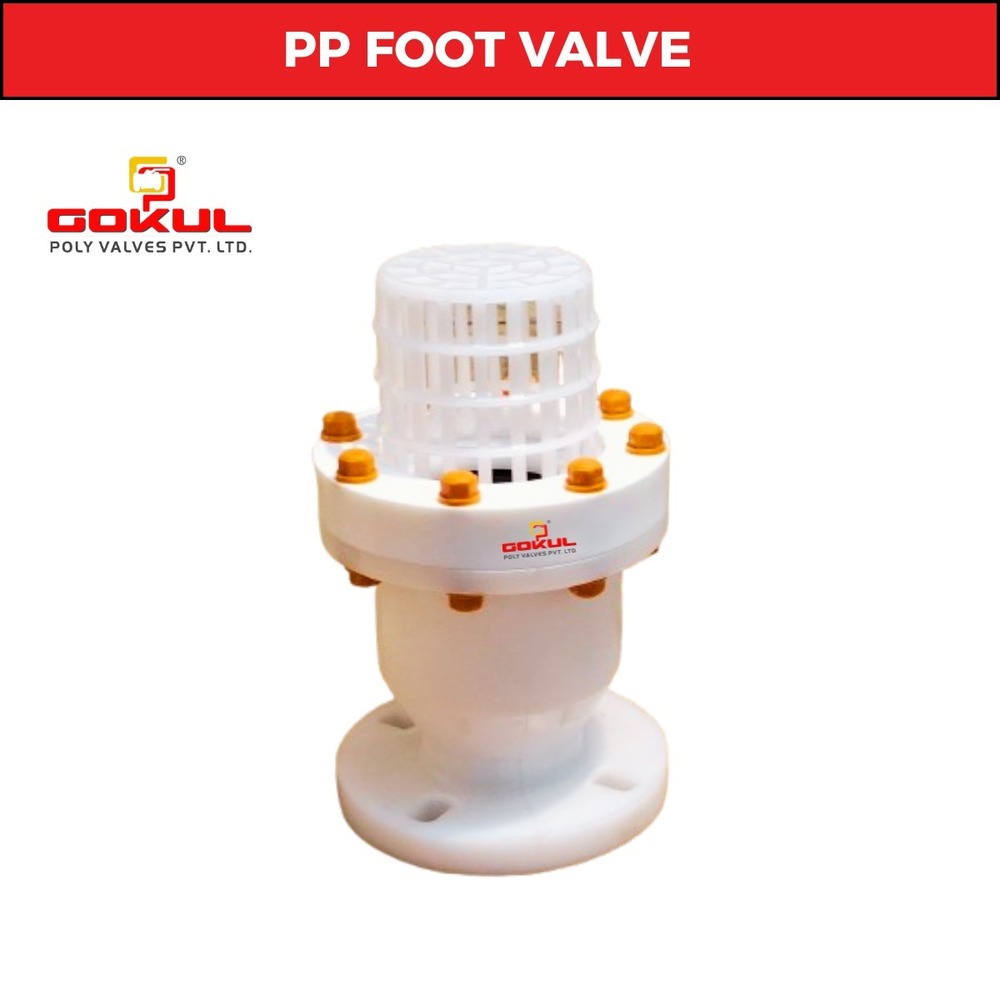

Flanged End PP Foot Valve

Price 3000 INR/ Number

Get a Price/Quote

Flanged End PP Foot Valve Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Pressure
  • Medium Pressure
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Structure
  • Ball
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Flanged End PP Foot Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Flanged End PP Foot Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Flanged End PP Foot Valve:


Q: What is the material used for the Flanged End PP Foot Valve?

A: The Flanged End PP Foot Valve is made of plastic with a polypropylene (PP) finish.

Q: What is the operating temperature limit for this valve?

A: The Flanged End PP Foot Valve can operate at a temperature of up to 80C.

Q: What are the available port sizes for this product?

A: The Flanged End PP Foot Valve is available in port sizes ranging from 1" to 12".

Q: What type of connection does this valve offer?

A: The valve features a flanged connection.

Q: What are the main applications of the Flanged End PP Foot Valve?

A: The valve is suitable for industrial and water applications in both intentional and domestic markets.

Q: What pressure category does this valve fall under?

A: The Flanged End PP Foot Valve operates under medium pressure conditions.

Q: What is the structure type of this valve?

A: The valve has a ball structure.
