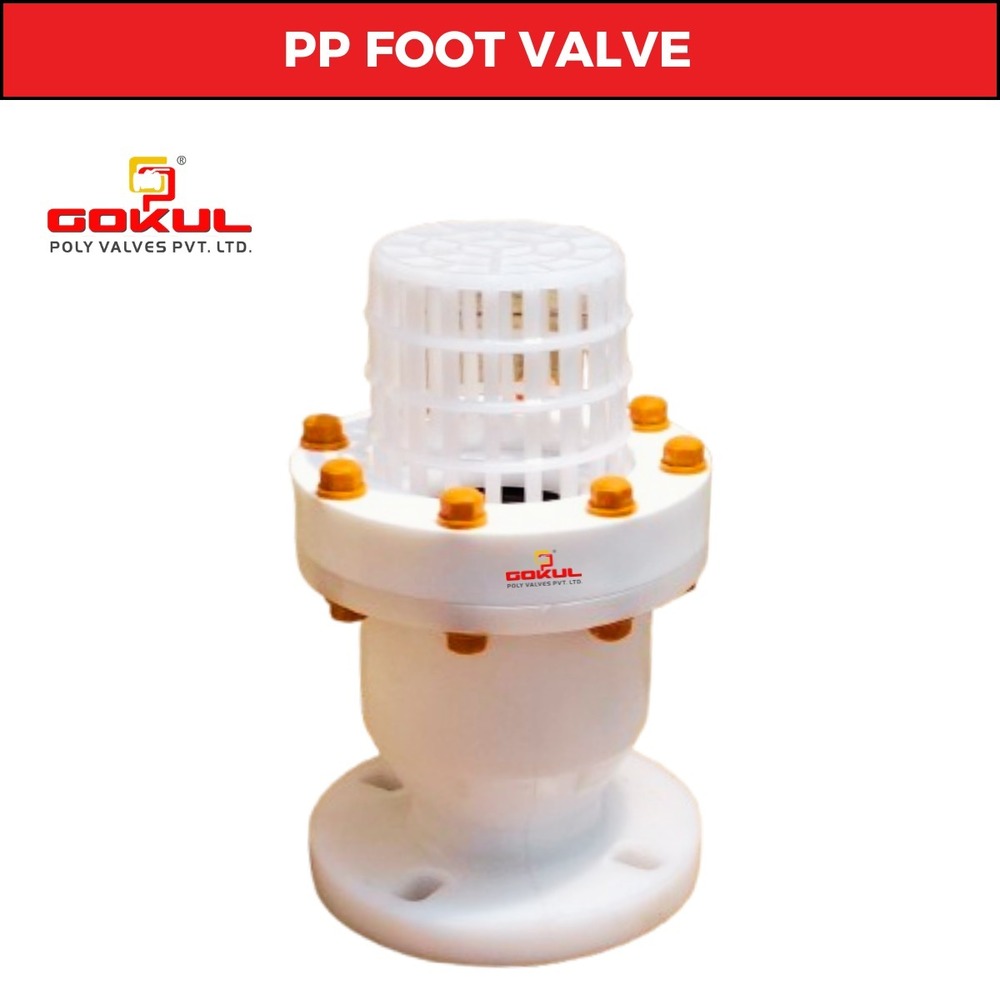

Flanged PP Foot valve

1320 INR/Number

Product Details:

  • Channels Intentional & Domestic Market
  • Pressure Medium Pressure
  • Product Type PP Foot Valve Flange End
  • Structure Ball
  • Connection Flanged
  • Color White
  • Size 1" To 12"
  • Click to view more
X

Flanged PP Foot valve Price And Quantity

  • 10 Number
  • 1320.00 - 1320.00 INR/Number
  • 1320 INR/Number

Flanged PP Foot valve Product Specifications

  • PP Foot Valve Flange End
  • Medium Pressure
  • 150 class
  • Intentional & Domestic Market
  • Ball
  • Plastic
  • White
  • Polypropylene (PP)
  • Flanged
  • 80 Celsius (oC)
  • 1" To 12"
  • 1" To 12"
  • Water
  • industrial and water application
  • Gokul Poly Valves Pvt Ltd

Product Description

Technical Specification

Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 25MM to 315MM Test pressure 10 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION QTY MATERIAL
1) Top Body 1 Polypropylene
2) Bottam Body 1 Polypropylene
3) Screen 1 Polypropylene
4) Ball 1 Polypropylene
5) Ball Ring 1 Polypropylene
6) Seat Ring 1 Neoprene Rubber
7) Stud, Nut & Washer Req. SS
