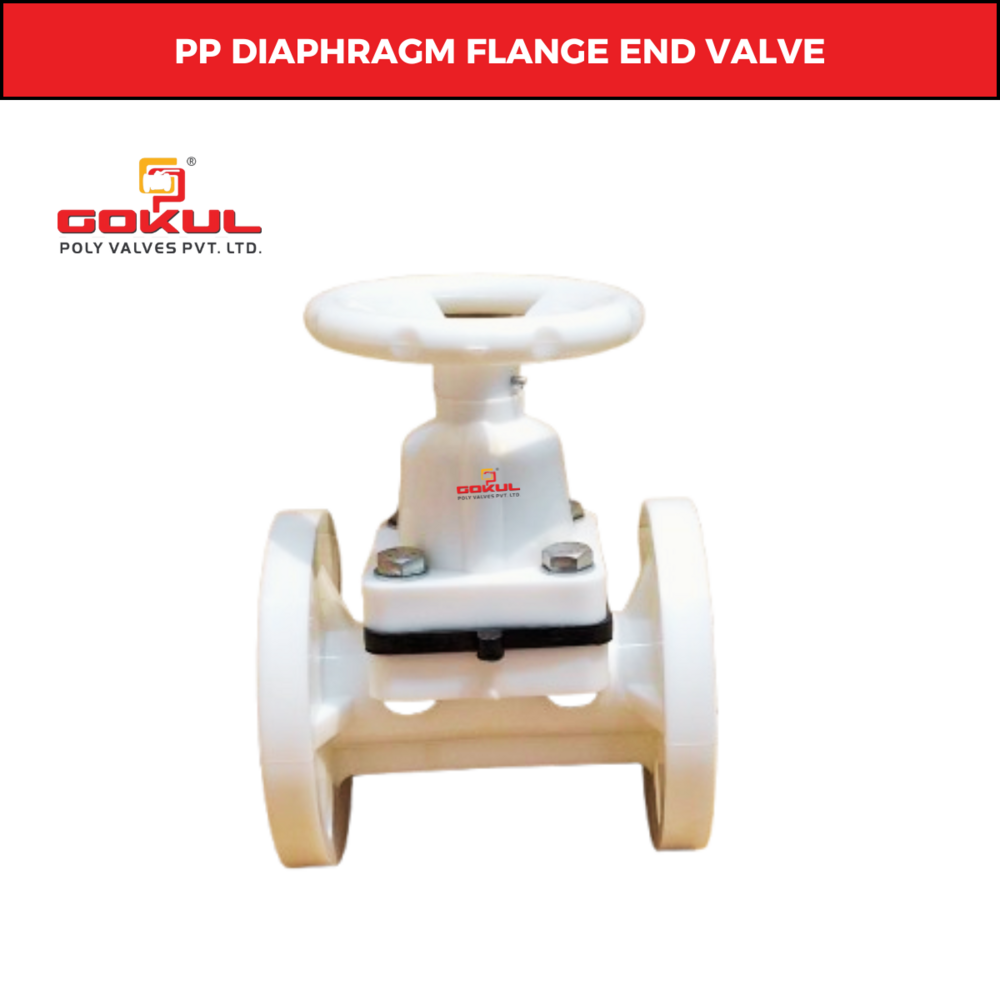

Gokul Flange End Polypropylene Diaphragm Valve 6"

About Gokul Flange End Polypropylene Diaphragm Valve 6"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Premium Polypropylene Construction

Designed for longevity, the Gokul 6-inch flange end diaphragm valve is crafted from top-grade polypropylene, offering outstanding chemical resistance and excellent performance even with aggressive water media. Its robust build suits both industrial and pure water handling environments, ensuring longevity and minimizing maintenance costs.


Versatile Applications in Industry and Water

This valve is specifically tailored for deployment in industrial settings and water treatment systems. With its flanged connections and 150-class rating, installation and integration into existing pipelines is straightforward. It is engineered to maintain reliable operations at medium pressure, supporting a variety of critical processes.
