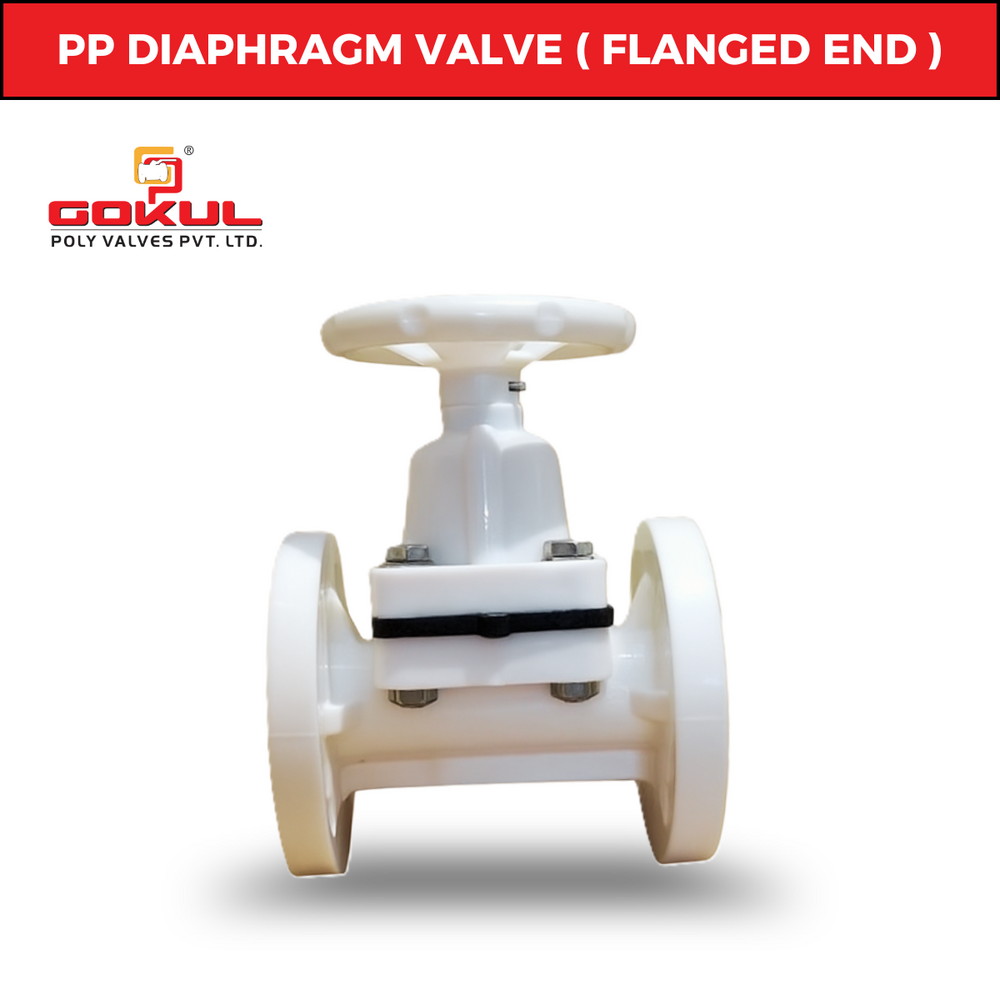

polypropylene Diaphragm Flange End Valve 6

Send Inquiry

Request To Call Back

polypropylene Diaphragm Flange End Valve 6"

Price 21800 INR/ Number

Get a Price/Quote

polypropylene Diaphragm Flange End Valve 6" Specification

Pressure
Medium Pressure

Channels
Intentional & Domestic Market

Caliber
Gokul Poly Valves Pvt Ltd

Connection
Flanged

Structure
Ball

Material
Plastic

Usage
Industrial & Water Application

Media
Water

Size
6"-150MM

Temperature of Media
80 Celsius (oC)

Product Type
PP Diaphragm Valve Flange End

Port Size
6"150MM

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

polypropylene Diaphragm Flange End Valve 6" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About polypropylene Diaphragm Flange End Valve 6"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Engineered for Versatility and Durability

Built from high-grade polypropylene, this diaphragm valve seamlessly serves both industrial and water utility sectors. Its robust construction ensures resistance to corrosion and chemical wear, making it suitable for demanding environments. The flanged connection provides ease of installation and secure sealing under medium pressure.

Optimal Flow Control and Safety

The valves ball structure, paired with a diaphragm mechanism, facilitates precise flow control, safeguarding against leaks and pressure surges. Suitable for handling water at temperatures up to 80C, this valve is a reliable choice for diverse fluid transport systems, especially where safety and longevity are priorities.

FAQs of polypropylene Diaphragm Flange End Valve 6":

Q: How is the Polypropylene Diaphragm Flange End Valve 6" typically installed?

A: The valve is installed using its standardized 6" (150MM) flanged ends, conforming to class 150 specifications. Secure bolting onto compatible pipeline flanges ensures a tight, leak-resistant seal, making for a straightforward installation process in industrial and water management systems.

Q: What are the main applications for this valve?

A: Primarily, the valve is used in industrial and water applications, where it serves as a reliable shut-off and flow control device. Its corrosion-resistant polypropylene construction makes it suitable for water supply lines, chemical processing pipelines, and other fluid management systems.

Q: When should this valve be selected over metal alternatives?

A: Polypropylene valves are ideal when corrosion resistance, low maintenance, and cost-effectiveness are key considerations, particularly in water treatment, chemical processing, or when handling fluids at medium pressures and temperatures up to 80C.

Q: Where is Gokul Poly Valves Pvt Ltd based and do they export?

A: Gokul Poly Valves Pvt Ltd is located in India and operates as a manufacturer, exporter, supplier, and service provider. Their valves are available for both national and international markets.

Q: What is the temperature and pressure range of this valve?

A: This valve is designed to handle media temperatures up to 80C and operates efficiently under medium pressure conditions, making it suitable for a wide range of fluid management applications.

Q: How does the ball structure benefit the valves functionality?

A: The ball structure, combined with the diaphragm, enables smooth and reliable control of fluid flow, minimizing wear and ensuring consistent operation over time. This design is particularly advantageous for reducing maintenance and extending service life.

Q: What are the benefits of using polypropylene for this valve?

A: Polypropylene offers excellent resistance to corrosion and chemical attack, is lightweight, durable, and suitable for potable water and industrial fluid applications. It ensures lower maintenance costs and longer operational life compared to many metal counterparts.
