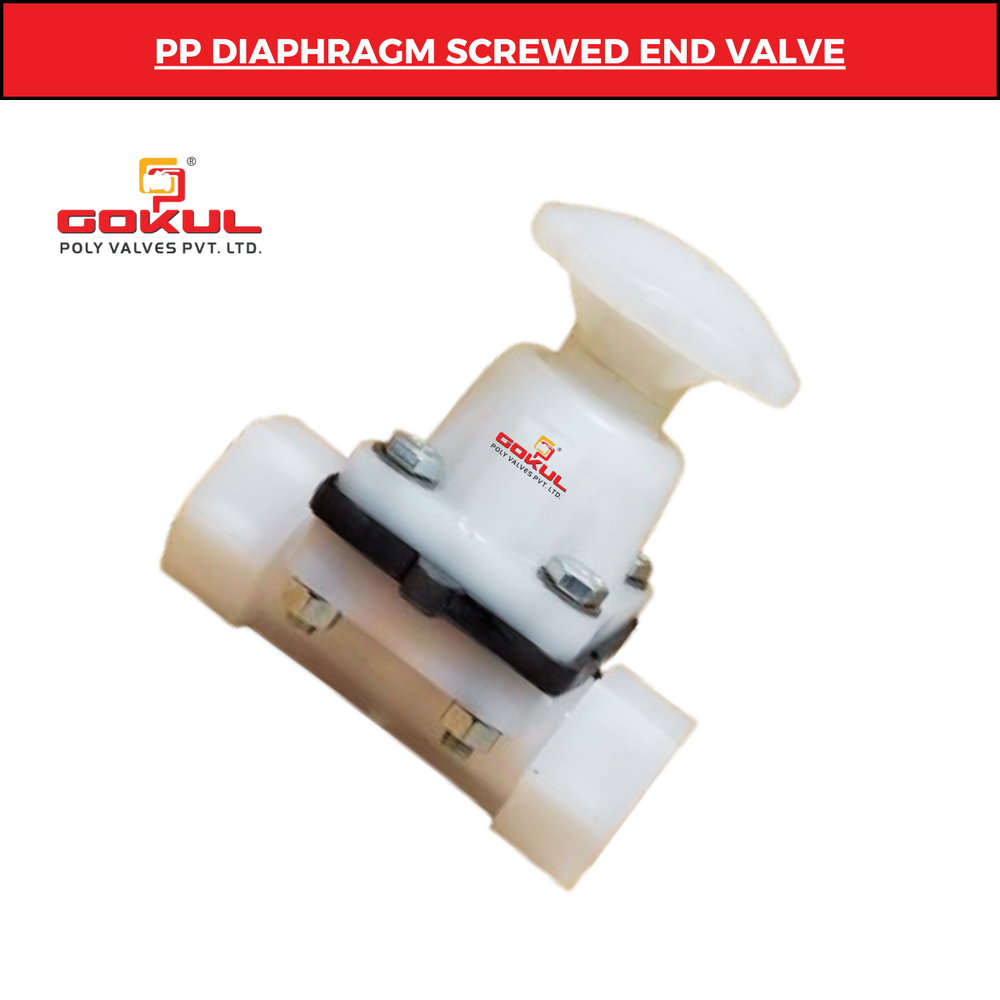

Screwed End PP Diaphragm Valve

Price 325 INR/ Number

Get a Price/Quote

Screwed End PP Diaphragm Valve Specification

Structure
Ball

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Pressure
Medium Pressure

Connection
Screw End (BSP Threaded)

Material
Plastic

Usage
Industrial & Water Application

Size
1/2" To 1"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Diaphragm Valve Screw End

Port Size
1/2" To 1"

Color
White

Flange
BSP Threaded

Finish
Polypropylene (PP)

Application
industrial and water application

Screwed End PP Diaphragm Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Screwed End PP Diaphragm Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1
