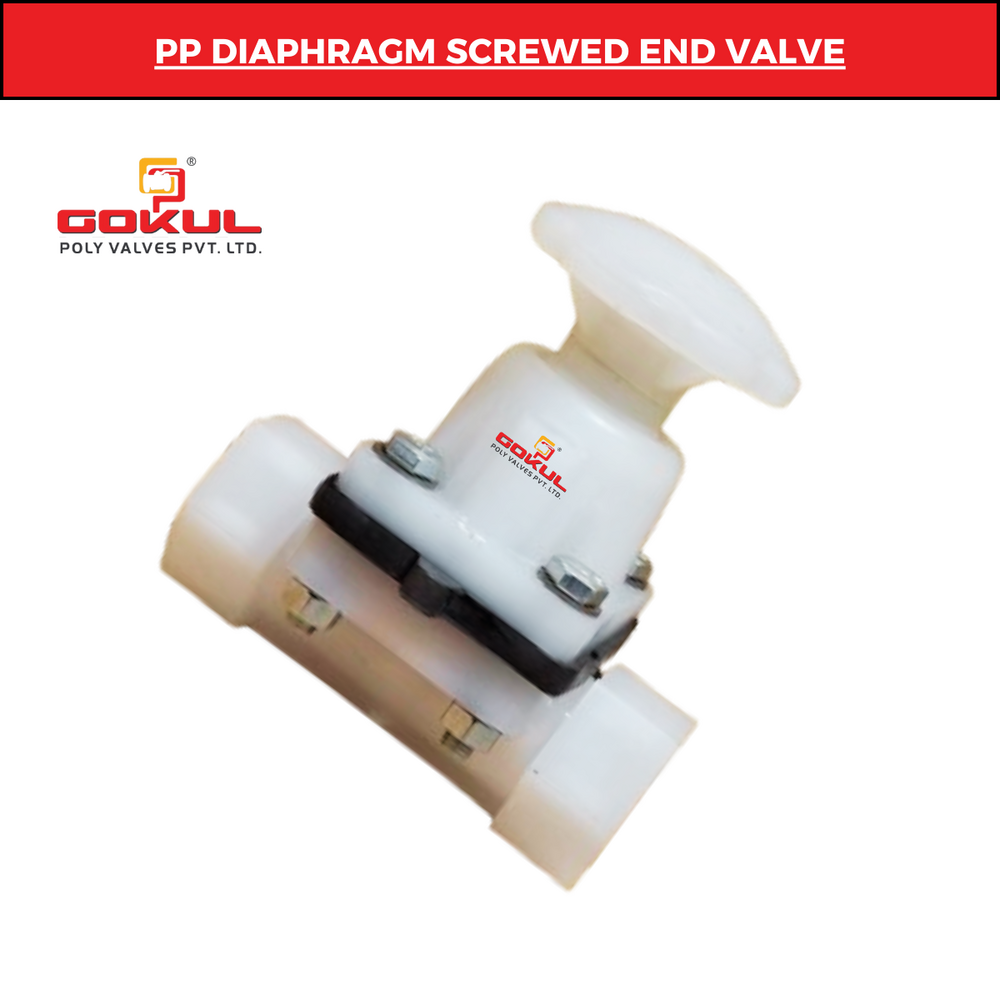

Gokul Polypropylene Diaphragm Valve Threaded

Price 325 INR/ Number

Get a Price/Quote


Gokul Polypropylene Diaphragm Valve Threaded Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test certificate


About Gokul Polypropylene Diaphragm Valve Threaded

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul Polypropylene Diaphragm Valve Threaded:


Q: What is the size range available for the Gokul Polypropylene Diaphragm Valve Threaded?

A: The size range available for the Gokul Polypropylene Diaphragm Valve Threaded is from 1/2" to 1".

Q: What type of connection does the valve feature?

A: The valve features a screw end connection with BSP threading.

Q: What is the maximum temperature of media the valve can handle?

A: The valve can handle media up to 80 degrees Celsius.

Q: What material is the Gokul Polypropylene Diaphragm Valve Threaded made of?

A: The valve is made of plastic with a polypropylene (PP) finish.

Q: For what types of applications is this valve suitable?

A: The valve is suitable for industrial and water applications.

Q: What is the pressure rating for the valve?

A: The valve is designed for medium pressure use.

Q: What markets does the valve cater to?

A: The valve caters to both intentional and domestic markets.

Gokul Polypropylene Diaphragm Valve Threaded
Gokul Polypropylene Diaphragm Valve Threaded
Gokul Polypropylene Diaphragm Valve Threaded
Gokul Polypropylene Diaphragm Valve Threaded
Gokul Polypropylene Diaphragm Valve Threaded
Gokul Polypropylene Diaphragm Valve Threaded
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in My products Category

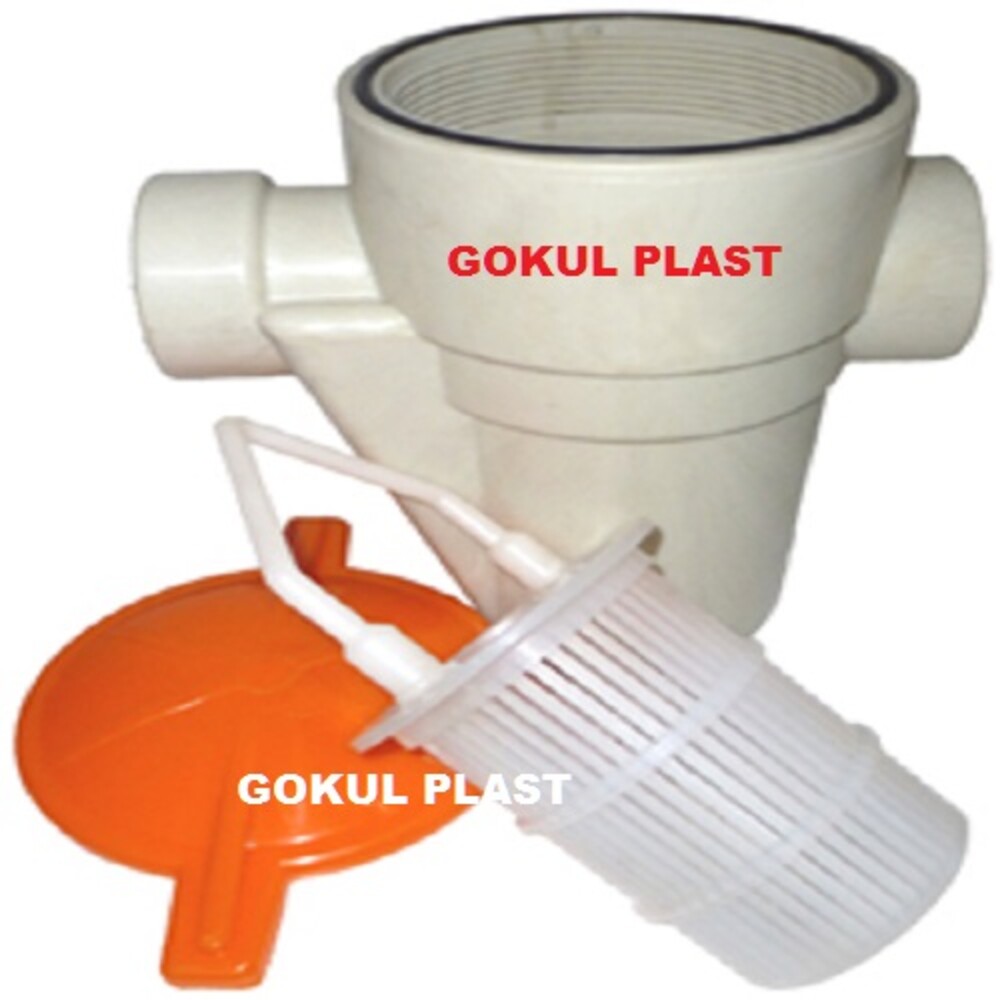

Gokul 110 mm HDPE Drain Traps
