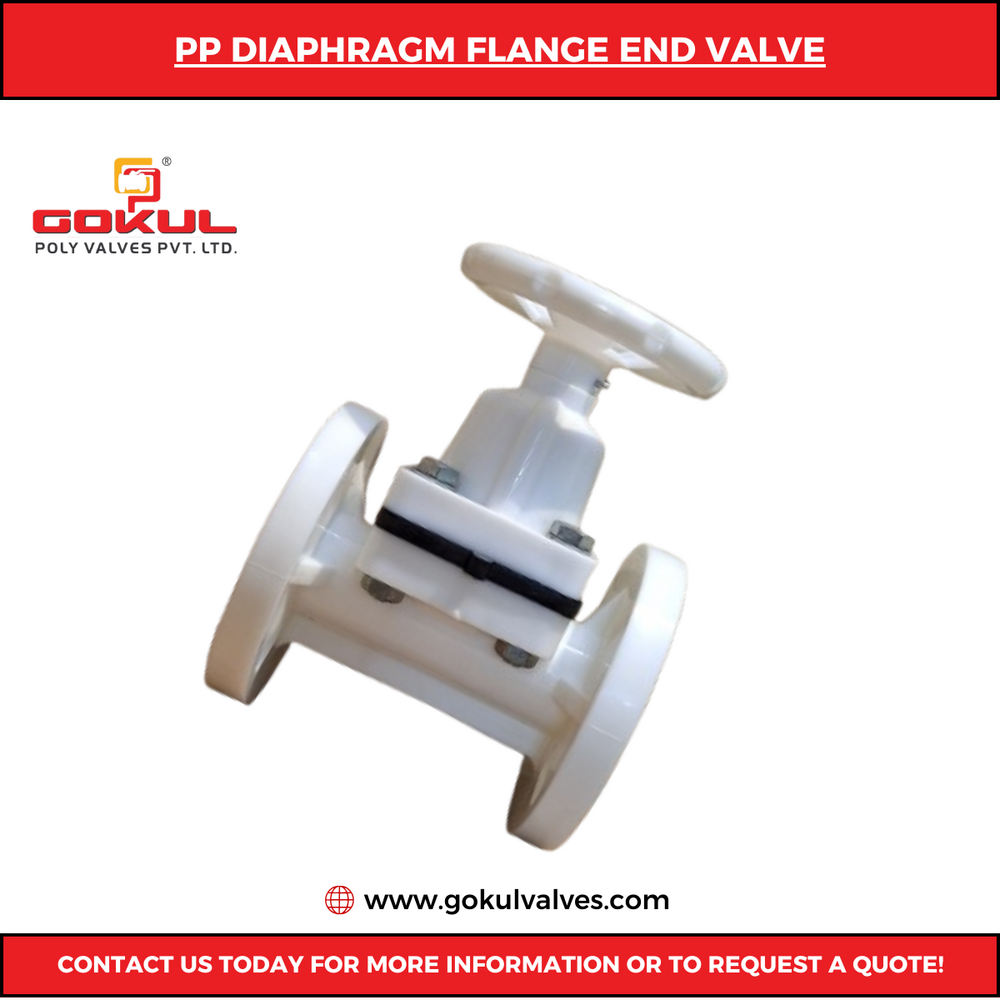

polypropylene Diaphragm Flange End Valve 1/2"

About polypropylene Diaphragm Flange End Valve 1/2"

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Premium Polypropylene Structure

Built from high-quality polypropylene, this flange end valve ensures excellent corrosion resistance and a long-lasting lifespan, even in demanding industrial and water environments. Its robust ball structure and precise engineering allow for dependable medium pressure performance, reducing the risk of leaks and wear.


Wide-Ranging Applications

Designed for versatile usage, the valve caters to both industrial systems and water supply lines. Its compatibility with water media and reliable flange connection make it suitable for various processes, from manufacturing plants to domestic water installations, offering flexibility for operators across multiple sectors.
