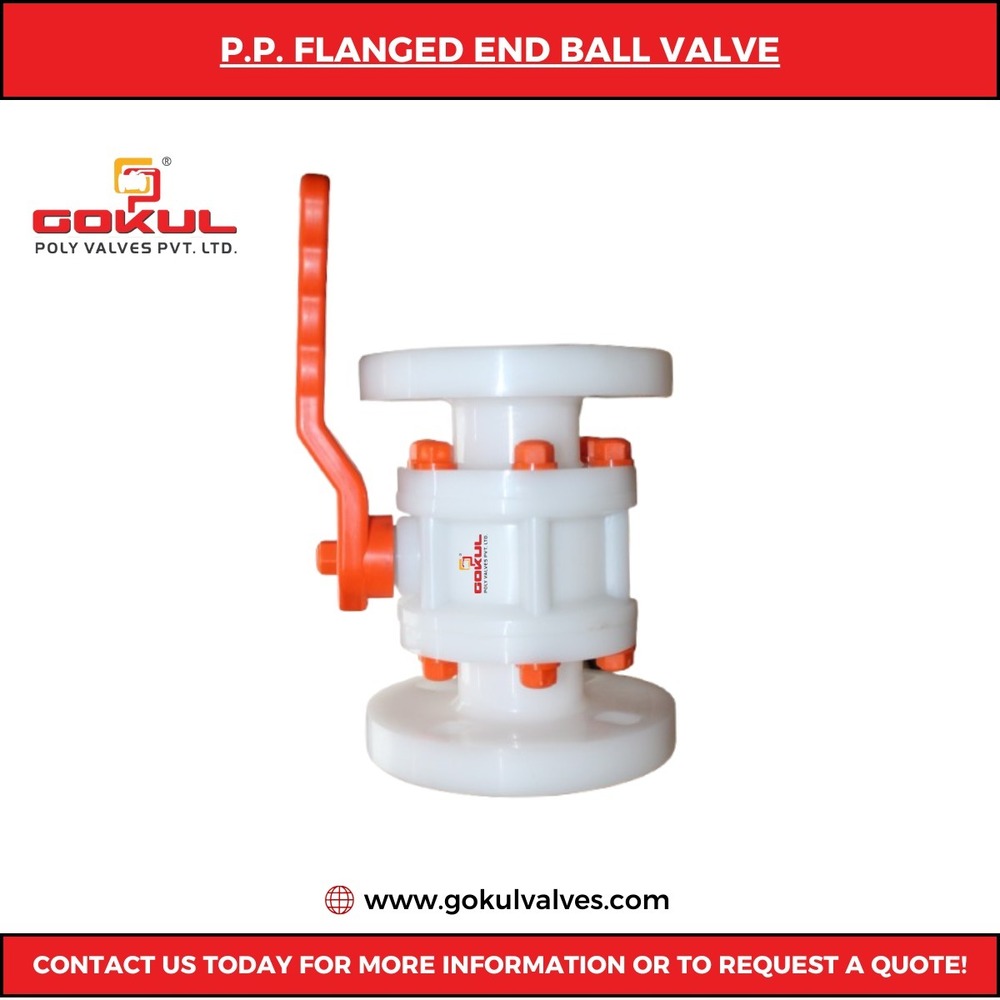

Gokul Polypropylene Ball Valve

About Gokul Polypropylene Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef-lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF-LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF-LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Durable Polypropylene Construction

Crafted from premium polypropylene, this ball valve showcases exceptional chemical resistance and durability suitable for harsh environments. The white finish adds a clean, modern appearance while ensuring compatibility with a range of fluids. Its plastic composition reduces corrosion risks compared to metal alternatives, enhancing valve lifespan.


Wide Application and Flexible Sizing

With port sizes ranging from 1/2" to 12", the Gokul Polypropylene Ball Valve adapts seamlessly to various industrial and water applications. The versatile structure accommodates medium pressure demands, making it an excellent choice for process industries, irrigation systems, and water treatment plants.
