pp diaphragm Flange End Valve 1"

Price 460 INR/ Number

Get a Price/Quote

pp diaphragm Flange End Valve 1" Specification

  • Diameter
  • 15-150 Millimeter (mm)
  • Working Presssure
  • 6 kg./cm2
  • Material
  • pp
  • Temperature Range
  • 70 Celsius (oC)
  • Surface Finish
  • Polished
  • Color
  • White
  • Warranty
  • 1 Year
  • Usage
  • Industrial


pp diaphragm Flange End Valve 1" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About pp diaphragm Flange End Valve 1"

Technical Specification

Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem
Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range 15MM to 150MM Test pressure 6 kg./cm2
Max working temp 70 c (consistently) Standard As per manufacturer

Material Specification

No. DESCRIPTION MATERIAL QTY.
1) Body Polypropylene 1
2) Bonnet Polypropylene 1
3) Hand wheel Polypropylene 1
4) Diaphragm Neoprene Rubber 1
5) Compressor PP 1
6) Stem / Spindel M.S. /Brass 1
7) Nut M.S./ S.S. 1
8) Pin M.S./ S.S. 1
9) Bolt, Nut, Washer M.S./ S.S. REQ
10) Cap Polypropylene 1


Reliable Performance for Industrial and Water Systems

This PP Diaphragm Flange End Valve provides dependable functionality in demanding environments. The polypropylene construction ensures resistance to a wide range of chemicals and durability under continuous medium pressure conditions, making it ideal for both industrial processes and water supply networks.


Simple Installation and Maintenance

With a 1" (25mm) port size and standard class 150 flanged ends, the valve is designed for easy integration into existing pipework. Its straightforward structure allows for minimal maintenance, streamlining servicing for operators and reducing system downtime.

FAQs of pp diaphragm Flange End Valve 1":


Q: How is the PP diaphragm flange end valve installed in a piping system?

A: The valve features a class 150 flanged connection, allowing it to be easily bolted between compatible pipe flanges. Ensure correct alignment, use appropriate gaskets, and tighten bolts uniformly for a leak-proof seal.

Q: What are the primary applications for this 1-inch PP diaphragm valve?

A: The valve is suited for both industrial and water applications, including chemical handling, water treatment, and domestic water distribution systems, owing to its sturdy polypropylene construction and reliable diaphragm structure.

Q: When should this valve be chosen over other valve types?

A: Choose this valve when you require precise flow control of water or non-corrosive fluids in medium pressure environments, particularly where chemical resistance and minimal maintenance are important.

Q: Where can this PP diaphragm valve be used effectively?

A: Its versatile enough for installation in industrial plants, water treatment facilities, and domestic water supply networks, especially in settings that operate with media temperatures up to 80C.

Q: What benefits does the polypropylene (PP) material offer in this valve?

A: Polypropylene provides excellent resistance to corrosion and a wide variety of chemicals, while delivering reliable performance in medium pressure and high-temperature environments up to 80C.

Q: How does the diaphragm structure improve the valves functionality?

A: The diaphragm mechanism offers precise control of flow, minimizes leakage, and extends service life by reducing wear on moving parts, making it highly suitable for frequent operation in critical applications.

pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
pp diaphragm Flange End Valve 1
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Pp Nut Bolt Category

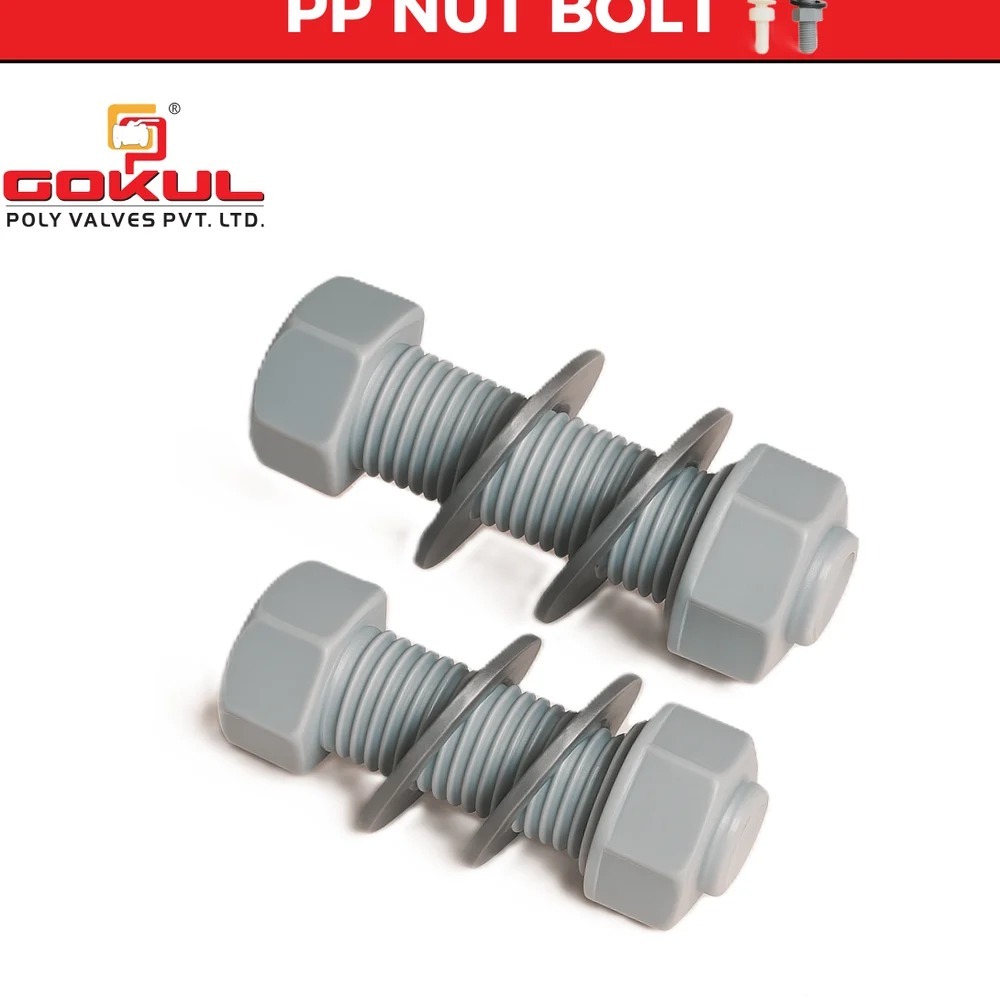

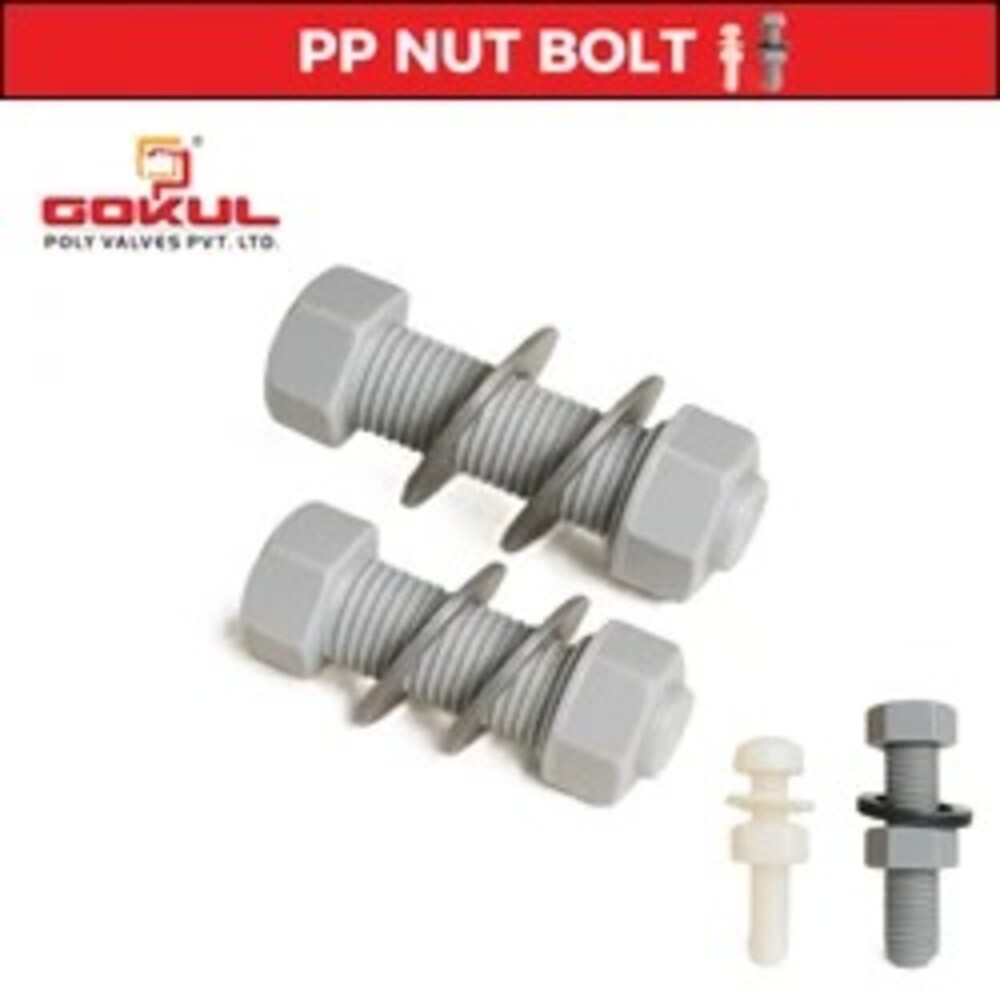

Pp Bolt
