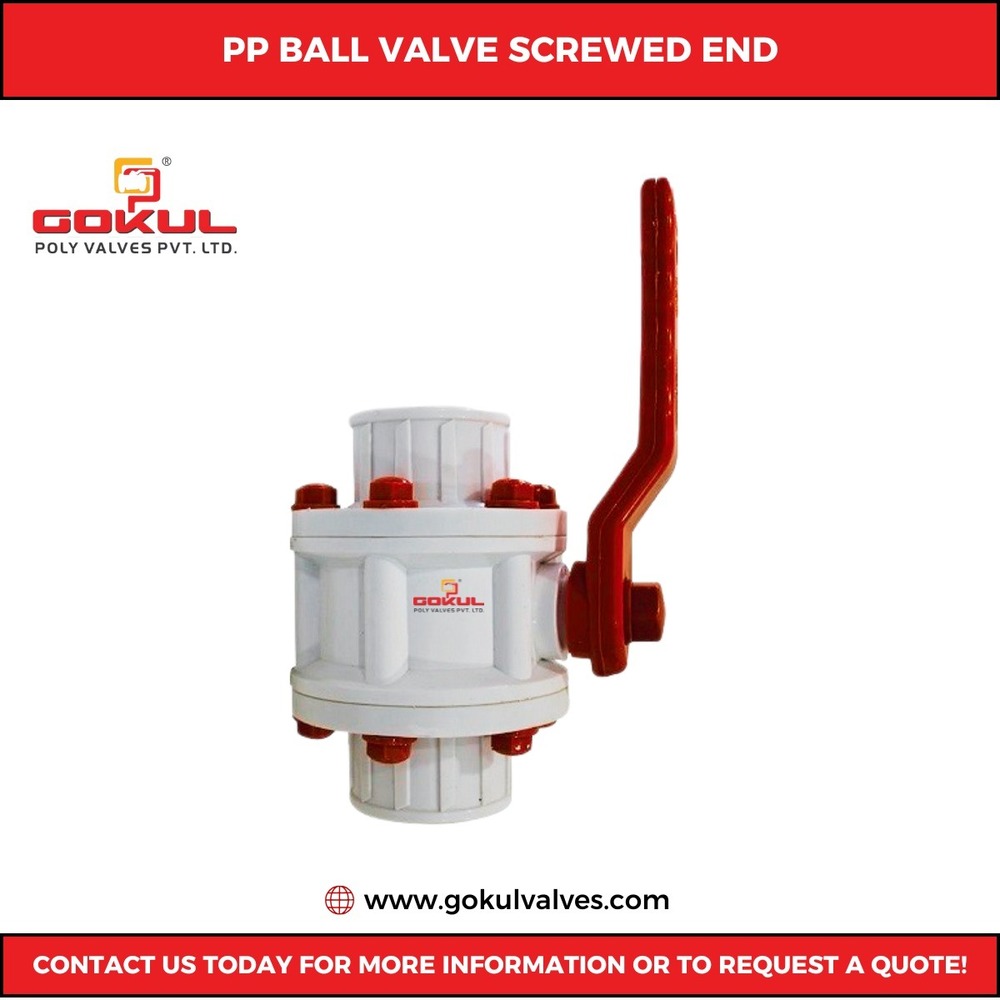

pp ball valve 3"

Price 1530 INR/ Number

Get a Price/Quote

pp ball valve 3" Trade Information

Minimum Order Quantity
50 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
50 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About pp ball valve 3"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Engineered for Reliable Water Control

Built with high-quality polypropylene, the 3" PP Ball Valve is optimized for managing water flow in industrial systems. Its flanged ends provide secure connections to pipelines, minimizing risk of leaks while accommodating medium pressure and temperatures up to 80C.

Versatile Industrial & Domestic Applications

This valve caters to both industrial and domestic requirements, offering seamless performance across various water management systems. Its durable materials and sturdy structure ensure long-lasting functionality, even in challenging operational conditions.

FAQs of pp ball valve 3":

Q: How does the 3" PP Ball Valve function in water and industrial applications?

A: The 3" PP Ball Valve operates by rotating a spherical closure inside the valve body to allow or block water flow. Its polypropylene build and flanged 150 class connection make it suitable for controlling water and other compatible media efficiently in both industrial and general water supply systems.

Q: What are the main benefits of using a polypropylene ball valve over metal alternatives?

A: Polypropylene valves offer excellent chemical resistance, are lightweight, and exhibit superior corrosion resistance compared to metal valves. This ensures longevity, reduces maintenance, and makes them especially suitable for water and many industrial media.

Q: When should I choose a flanged PP Ball Valve for my project?

A: A flanged PP Ball Valve is ideal when you require easy installation, maintenance, and a secure, leak-resistant connection in piping systems, particularly those handling medium pressure and temperatures up to 80C, such as in water treatment plants or industrial facilities.

Q: Where can this 3" ball valve be installed for optimal performance?

A: This ball valve is best suited for installation in water pipelines, treatment plants, industrial process lines, or domestic water supply systems that demand robust, corrosion-resistant valves capable of handling medium pressure and moderate heat.

Q: What is the process for installing a 3" flanged PP Ball Valve?

A: To install, ensure both pipe ends are properly aligned and cleaned. Mount the valve using compatible gaskets between flanges, tighten with bolts evenly to secure the seal, and test for leaks. No special tools are needed apart from standard flange installation equipment.

Q: How is this product exported or supplied internationally?

A: Gokul Poly Valves Pvt Ltd, based in India, exports and supplies this valve globally, serving both domestic and international clients through direct shipments, authorized distributors, and a network of service providers.

Q: What kinds of industrial and water applications can benefit from this valve?

A: Industries ranging from water treatment, chemical processing, and irrigation to commercial building water management benefit from this valves durability, chemical resistance, and precise flow control capabilities.
